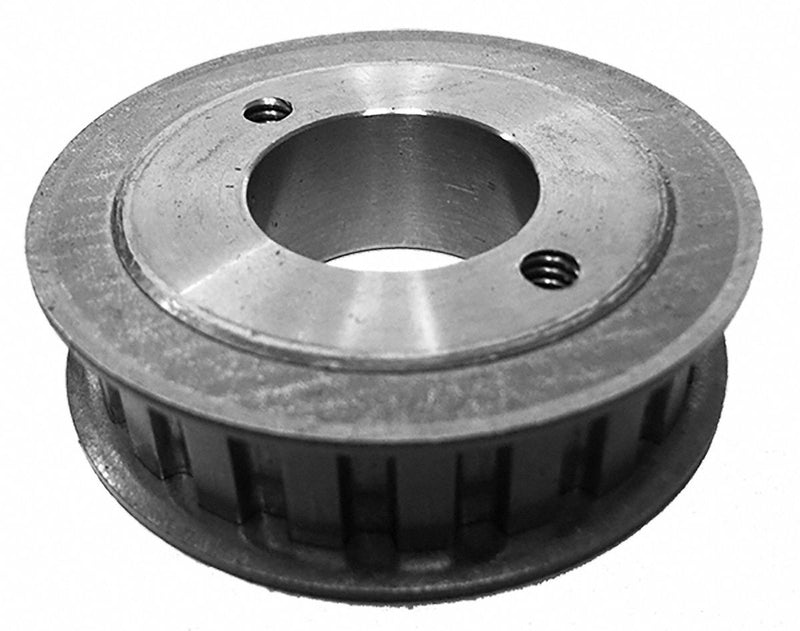

Approved Vendor 22LG050 Timing Belt Pulley, Trapezoidal, Bushed, For L Timing Belt Section, 22 Teeth, Steel
UPC: 195057625167 | Harmonization / Schedule B : 8483.50.9040
Country of Origin: United States | Shipping Weight: 0.89 lbs
Original price
$84.60
-
Original price
$84.60
Original price
$84.60
$84.60
-
$84.60
Current price
$84.60
Timing Belt Pulley, For Belt Series L, For Belt Width 1/2 in, For Bushing Size G, For Bushing Type Split Taper, For Use With Timing Belt, Material Steel, Maximum Bore Diameter 15/16 in, Minimum Bore Diameter 3/8 in, Number of Teeth 22, Outside Diameter 2.875 in, Pitch 0.375 in, Pitch Diameter 2.626 in, Face Width 0.75 in, Features Highly Flexible, Low Speed Compatible, Finish Black Oxide, For Belt Trade Size L, Number of Flanges 2, Overall Width 1 3/8 in
| For Belt Trade Size | L |
|---|---|
| Outside Diameter | 2.875 in |
| Minimum Bore Diameter | 3/8 in |
| Face Width | 0.75 in |
| Overall Width | 1 3/8 in |
| Pitch Diameter | 2.626 in |
| For Belt Width | 1/2 in |
| For Bushing Size | G |
| Maximum Bore Diameter | 15/16 in |
| Resistance Properties | Chemical-Resistant, Oil-Resistant, Wear-Resistant |
| Weight | 0.91 lb |
| Material | Steel |
| For Bushing Type | Split Taper |
| Number of Flanges | 2 |
| Pitch | 0.375 in |
| For Belt Series | L |
| For Use With | Timing Belt |
| Tooth Shape | Trapezoidal |
| Number of Teeth | 22 |
| Features | Highly Flexible, Low Speed Compatible |
| Standards | REACH, RoHS |
| Bore Type | Bushed |
| System of Measurement | Inch |
| Finish | Black Oxide |
| Country of Origin | United States |
