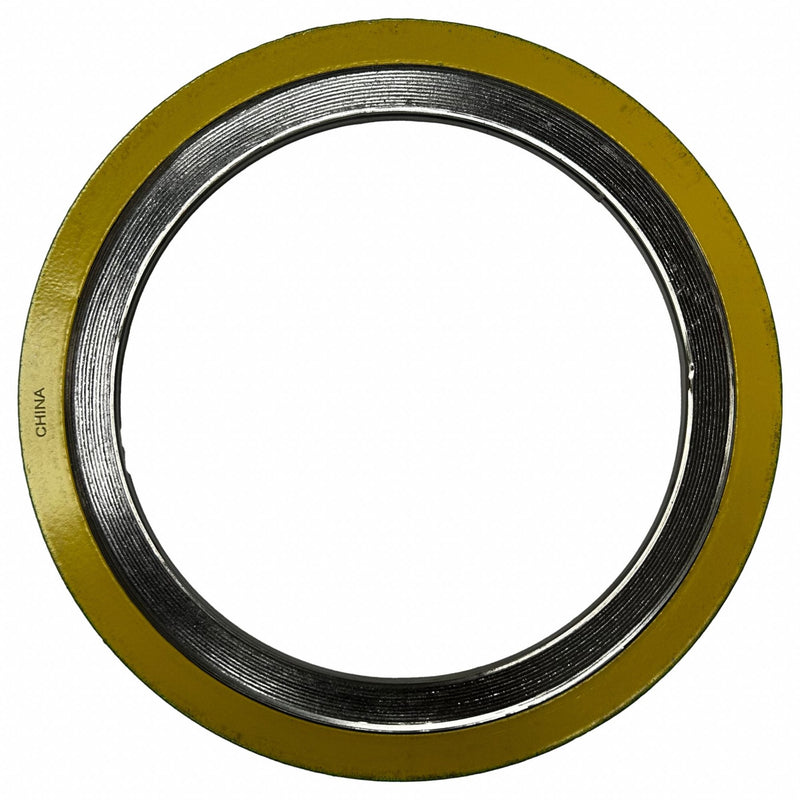

Approved Vendor 316-346-0150 Spiral Wound Flange Gasket, ANSI Class 300/400/600, 1-1/2 in Pipe, 316 SS Graphite Filler
Original price
$3.93
-
Original price
$3.93
Original price
$3.93
$3.93
-
$3.93
Current price
$3.93
Spiral Wound Flange Gasket, For Flange ANSI Class 300, 400, 600, For Pipe Size 1 1/2 in, Inside Diameter 2 3/16 in, Outside Diameter 3 3/4 in, Thickness 3/16 in, Rim Stripe Color Gray, Outside Rim Color Green, Filler Material Graphite, Outer Ring Material Carbon Steel, Minimum Operating Temperature -100 Degrees F, Maximum Operating Temperature 842 Degrees F, Spiral Winding Material Stainless Steel, Spiral Winding Stainless Steel Grade 316, Inner Ring Material None
| Standards | ASME B16.20 |
|---|---|
| Outer Ring Material | Carbon Steel |
| Spiral Winding Material | Stainless Steel |
| For Flange Surface Type | Flat Surface, Raised Surface |
| For Piping System | Industrial Process |
| Filler Material | Graphite |
| Rim Stripe Color | Gray |
| For Flange ANSI Class | 300, 400, 600 |
| Inner Ring Material | None |
| Spiral Winding Stainless Steel Grade | 316 |
| Market | Industrial |
| Outside Rim Color | Green |
| FDA Approved | No |
| Maximum Operating Temperature | 842 Degrees F |
| Minimum Operating Temperature | -100 Degrees F |
| System of Measurement | Inch |
| Restrictions | This product is not intended for potable water applications (human consumption – drinking and cooking) and has not been designed to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable water applications. This item is for use, only, in non-potable (non-human consumption) water applications. |
| Country of Origin | Multiple |
