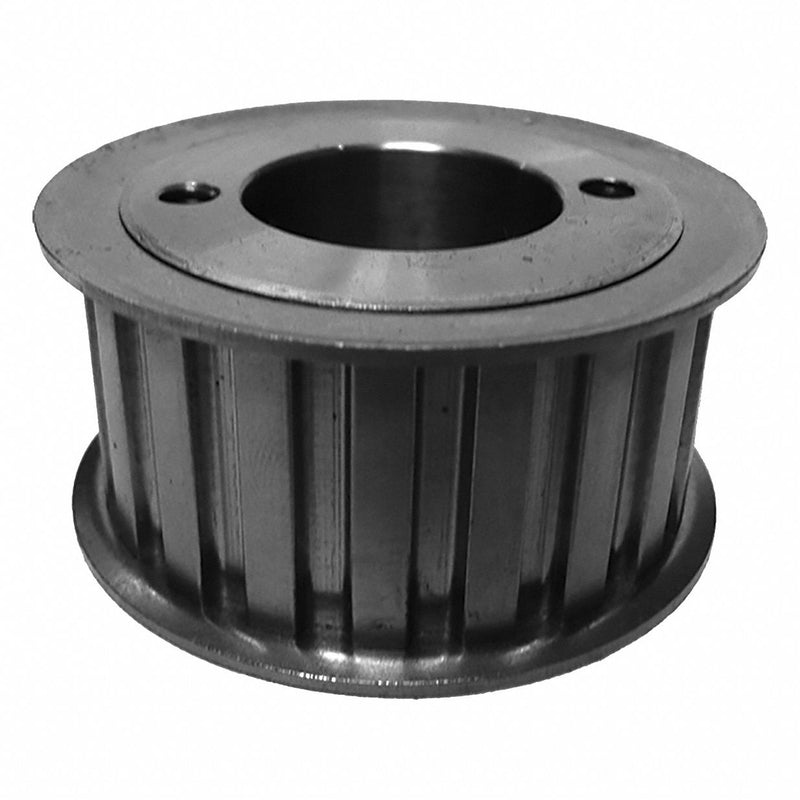

Approved Vendor 32LH100 Timing Belt Pulley, Trapezoidal, Bushed, For L Timing Belt Section, For 1 in Belt Wd
UPC: | Harmonization / Schedule B : 8483.50.9040
Country of Origin: United States | Shipping Weight: 2.524 lbs
Original price
$156.00
-
Original price
$156.00
Original price
$156.00
$156.00
-
$156.00
Current price
$156.00
Bushed L-section timing belt pulleys have a medium 0.375 in. pitch. The "L" designation indicates they are compatible with "light" trapezoidal timing belts. These pulleys need a bushing to mount to the drive shaft and adapt the bore to the shaft size. Bushings offer more clamping power to the drive shaft. They are used in light drive applications commonly found in outdoor equipment and sorting machines.
| Tooth Profile | Trapezoidal |
|---|---|
| Bore Type | Bushed |
| For Timing Belt Section | L |
| For Belt Width | 1 in |
| Number of Teeth | 32 |
| Pitch | 0.375 in |
| Material | Cast Iron |
| Finish | Black Oxide |
| Number of Flanges | 2 |
| Pitch Diameter | 3.82 in |
| Outside Diameter | 4.063 in |
| Face Width | 1.25 in |
| Overall Width | 1-7/16 in |
| For Bushing Type | Split Taper |
| For Bushing Size | H |
| Maximum Bore Diameter | 1-1/2 in |
| Weight | 2.52 lb |
| For Belt Type | Timing Belt |
| Features | Highly Flexible; Low Speed Compatible |
| Resistance Properties | Chemical-Resistant; Oil-Resistant; Wear-Resistant |
| Standards | REACH; RoHS |
| Minimum Bore Diameter | 3/8 in |
| Material Fabrication | Cast |
| Country of Origin | USA |
