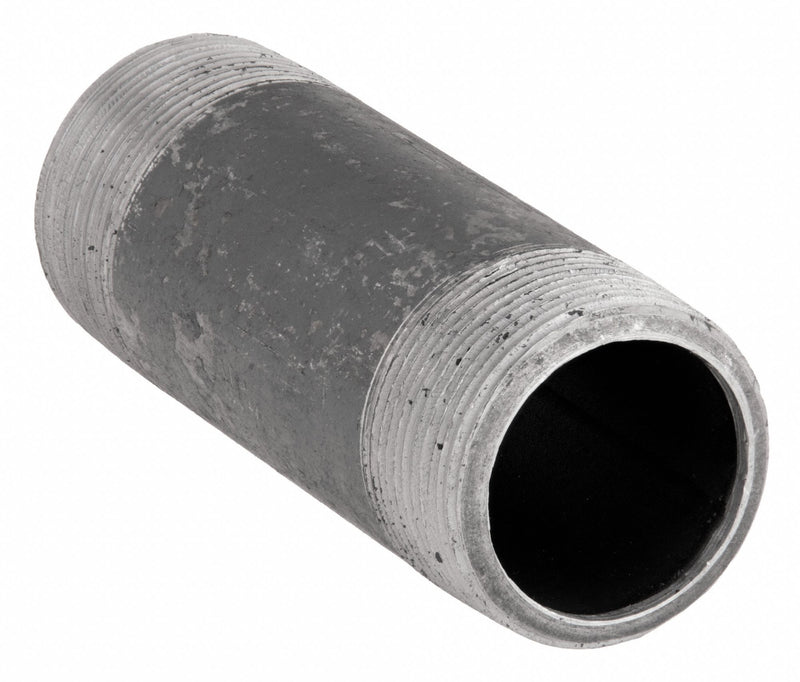

Approved Vendor 40408 Pipe Nipple, 1/2 in Nominal Pipe Size, Male NPT x Male NPT, 5 in Lg, Schedule 80, Welded
UPC: | Harmonization / Schedule B : 7307.99.5015
Country of Origin: Italy | Shipping Weight: 0.454 lbs
Original price
$5.25
-
Original price
$5.25
Original price
$5.25
$5.25
-
$5.25
Current price
$5.25
Pipe Nipple, Application Air, Gases, Non-Potable Water, Oils, Finish/Coating Black, Fitting Compatibility Class 300, Gravity Flow No, Inside Diameter 9/16 in, Manufacture Location Globally Sourced, Material Steel, Material Grade Grade A, Maximum Operating Pressure 3,006 psi @ 650 Degrees F, Maximum Operating Temperature 600 Degrees F, Maximum Steam Pressure 3,006 psi @ 650 Degrees F, Metal Pipe Construction Welded, Minimum Operating Temperature -20 Degrees F, Nominal Pipe Size 1/2 in
| Pipe Size - Nominal | 1/2 in |
|---|---|
| Overall Pipe Length | 5 in |
| Pipe Size (Fittings) | 1/2" |
| Wall Thickness | 0.125 in |
| Pipe Size (Nominal) | 1/2" |
| Outside Dia. | 13/16 in |
| Inside Dia. | 9/16 in |
| Outside Diameter | 13/16 in |
| Inside Diameter | 9/16 in |
| Overall Length | 5 in |
| Nominal Pipe Size | 1/2 in |
| Wire Rope Length | 5 in |
| Length | 5 in |
| MFR # | 40408 |
| Zoro # | G1191154 |
| UPC # | - |
| Country of Origin | Italy |
| Pipe Connection Type | Threaded on Both Ends |
| Pipe Type | Pipe Nipple |
| Material - Pipe | Black Steel |
| Pipe Schedule | 80 |
| Pipe Weld Type | Electric Resistance Weld |
| Pipe Thread Type | MNPT x MNPT |
| Max. Pressure | 3006 psi @ 650 Degrees F |
| Seamless/Welded | Welded |
| Pipe Fitting Connection Type | MNPT x MNPT |
| Pipe Fitting Material | Black Steel |
| Standards | ASTM A53 Type E Grade B |
| Specific Pipe Fitting Shape | Nipple |
| Basic Pipe Fitting Material | Metal |
| Pipe Fitting Schedule/Class | Schedule 80 |
| Basic Pipe Fitting Shape | Nipple |
| Max. Steam Pressure | 3006 psi @ 650 Degrees F |
| Metal Detectable | Yes |
| Material Grade | Grade B |
| Metal Pipe Construction | Welded |
| Fitting Compatibility | Class 300 |
| Side A Gender | Male |
| Side A Thread Type | NPT |
| Gravity Flow | No |
| Side B Gender | Male |
| Maximum Steam Pressure | 3,006 psi @ 650 Degrees F |
| Minimum Operating Temperature | -20 Degrees F |
| Maximum Operating Pressure | 3,006 psi @ 650 Degrees F |
| Thread Configuration | Threaded on Both Ends |
| Side B Connection Type | Threaded |
| Maximum Operating Temperature | 600 Degrees F |
| Application | Air, Gases, Non-Potable Water, Oils |
| Side A Connection Type | Threaded |
| Finish/Coating | Black |
| Schedule | Schedule 80 |
| Side B Thread Type | NPT |
| Manufacture Location | Globally Sourced |
| Thread Type | NPT |
| Material | Steel |
| Includes Pre-Applied Thread Sealant | Pre-Applied Thread Sealant Not Included |
| Country of Origin | Italy (subject to change) |
