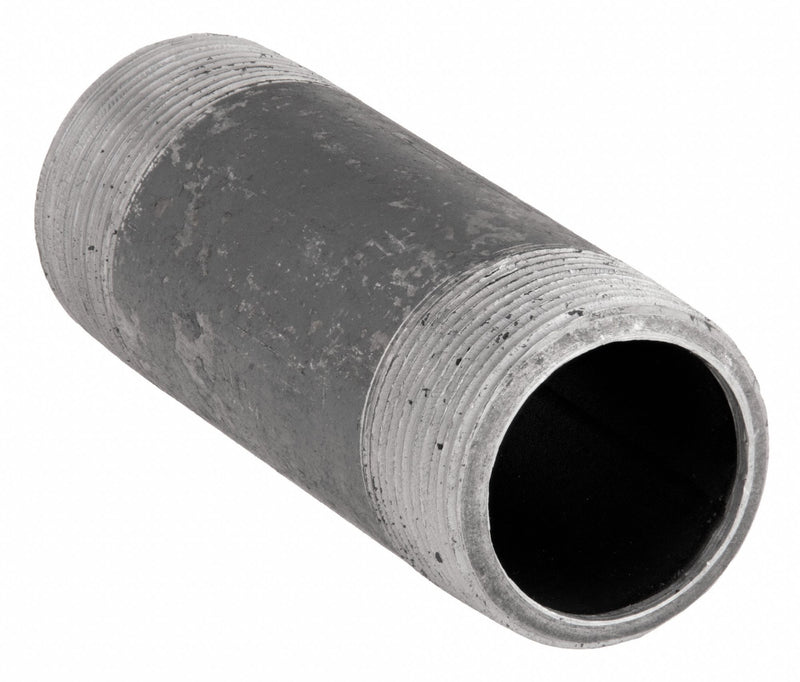

Approved Vendor 40708 Pipe Nipple, 1 1/4 in Nominal Pipe Size, Male NPT x Male NPT, 5 in Lg, Schedule 80, Welded
UPC: | Harmonization / Schedule B : 7307.99.5015
Country of Origin: Mexico | Shipping Weight: 1.1 lbs
Original price
$13.50
-
Original price
$13.50
Original price
$13.50
$13.50
-
$13.50
Current price
$13.50
Pipe Nipple, Application Air, Gases, Non-Potable Water, Oils, Finish/Coating Black, Fitting Compatibility Class 300, Gravity Flow No, Inside Diameter 1 1/4 in, Manufacture Location Globally Sourced, Material Steel, Material Grade Grade A, Maximum Operating Pressure 300 psi @ 550 Degrees F, Maximum Operating Temperature 600 Degrees F, Maximum Steam Pressure 1,980 psi @ 650 Degrees F, Metal Pipe Construction Welded, Minimum Operating Temperature -20 Degrees F, Nominal Pipe Size 1 1/4 in
| Pipe Size - Nominal | 1 1/4 in |
|---|---|
| Overall Pipe Length | 5 in |
| Outside Dia. | 1 21/32 in |
| Pipe Size (Fittings) | 1-1/4" |
| Wall Thickness | 0.125 in |
| Inside Diameter | 1 1/4 in |
| Outside Diameter | 1 21/32 in |
| Overall Length | 5 in |
| Nominal Pipe Size | 1 1/4 in |
| Wire Rope Length | 5 in |
| Length | 5 in |
| MFR # | 40708 |
| Zoro # | G1954757 |
| UPC # | - |
| Country of Origin | Mexico |
| Pipe Connection Type | Threaded on Both Ends |
| Material - Pipe | Black Steel |
| Pipe Schedule | 80 |
| Pipe Weld Type | Electric Resistance Weld |
| Pipe Thread Type | MNPT x MNPT |
| Max. Pressure | 300 psi @ 550 Degrees F |
| Seamless/Welded | Welded |
| Pipe Fitting Schedule/Class | Schedule 80 |
| Basic Pipe Fitting Shape | Nipple |
| Basic Pipe Fitting Material | Metal |
| Pipe Fitting Material | Black Steel |
| Standards | ASTM A53 Type E Grade B |
| Metal Detectable | Yes |
| Specific Pipe Fitting Shape | Nipple |
| Max. Steam Pressure | 1980 psi WSP @ 650 Degrees F |
| Pipe Fitting Connection Type | MNPT x MNPT |
| Thread Type | NPT |
| Side B Thread Type | NPT |
| Side B Connection Type | Threaded |
| Application | Air, Gases, Non-Potable Water, Oils |
| Side A Gender | Male |
| Material Grade | Grade B |
| Material | Steel |
| Maximum Operating Pressure | 300 psi @ 550 Degrees F |
| Manufacture Location | Globally Sourced |
| Schedule | Schedule 80 |
| Side A Connection Type | Threaded |
| Maximum Steam Pressure | 1,980 psi @ 650 Degrees F |
| Side A Thread Type | NPT |
| Metal Pipe Construction | Welded |
| Thread Configuration | Threaded on Both Ends |
| Fitting Compatibility | Class 300 |
| Side B Gender | Male |
| Minimum Operating Temperature | -20 Degrees F |
| Finish/Coating | Black |
| Maximum Operating Temperature | 600 Degrees F |
| Gravity Flow | No |
| Includes Pre-Applied Thread Sealant | Pre-Applied Thread Sealant Not Included |
| Country of Origin | Mexico (subject to change) |
