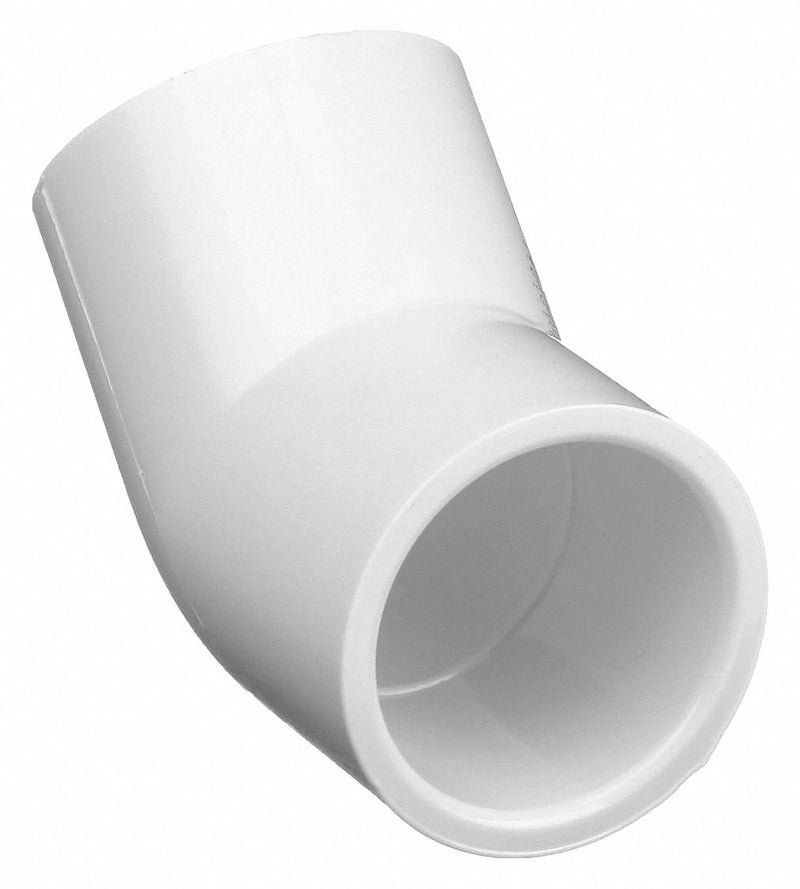

Approved Vendor 417020 Pipe Elbow, 45°, Schedule 40, PVC, 2 in x 2 in Socket x Socket, Female x Female, White

Approved Vendor 417020 Pipe Elbow, 45°, Schedule 40, PVC, 2 in x 2 in Socket x Socket, Female x Female, White

$3.48 - $3.48
$3.48
$3.48 - $3.48
$3.48

45 Degrees Elbow, PVC, Schedule 40, For Pipe Schedule Schedule 40, 2 in, Female, Socket, 2 11/16 in, 2 in, Female, Socket, 2 11/16 in, Includes Seal Seal Not Included, 4 5/16 in Overall Length, 280 psi Maximum Operating Pressure, 32 Degrees to 140 Degrees F

Pipe Size - Pipe Fitting 2 in
Fitting Length 4.32 in
Pipe Fitting Length 4.32"
Pipe Size (Fittings) 2"
Fitting Side A Nominal Pipe Size 2 in
Fitting Side B Nominal Pipe Size 2 in
Fitting Side A Outside Diameter 2 11/16 in
Overall Length 4 5/16 in
Fitting Side B Outside Diameter 2 11/16 in
Specific Fitting Shape 45 Degrees Elbow
Fitting Connection Type Socket x Socket
Fitting Schedule/Class Schedule 40
Basic Pipe Fitting Shape Elbow
Color White
Specific Pipe Fitting Shape 45 Degree Elbow
Pipe Fitting Material PVC
Fittings Sub-Category Elbows
Compliance ASTM
Pipe Fitting Schedule/Class Schedule 40
Max. Temp. 140 Degrees F
Standards ASTM D2466, NSF 14, NSF 61
Basic Pipe Fitting Material Plastic
Temp. Range 32 Degrees to 140 Degrees F
Green Certification or Other Recognition NSF(R) Certified (Sustainability or Environmental Standard)
Application Potable Water
Fitting Side A Gender Female
For Pipe Schedule 40
Maximum Operating Pressure 280 psi
Includes Pre-Applied Thread Sealant No
Includes Shield No
Fitting Side A Type Socket
Schedule Schedule 40
Fitting Side B Type Socket
Fitting Side B Gender Female
Low Lead Certified Standard NSF 61; NSF 14
Includes Plug No
Includes Seal No
Low Lead Compliance Level Certified
Country of Origin United States
