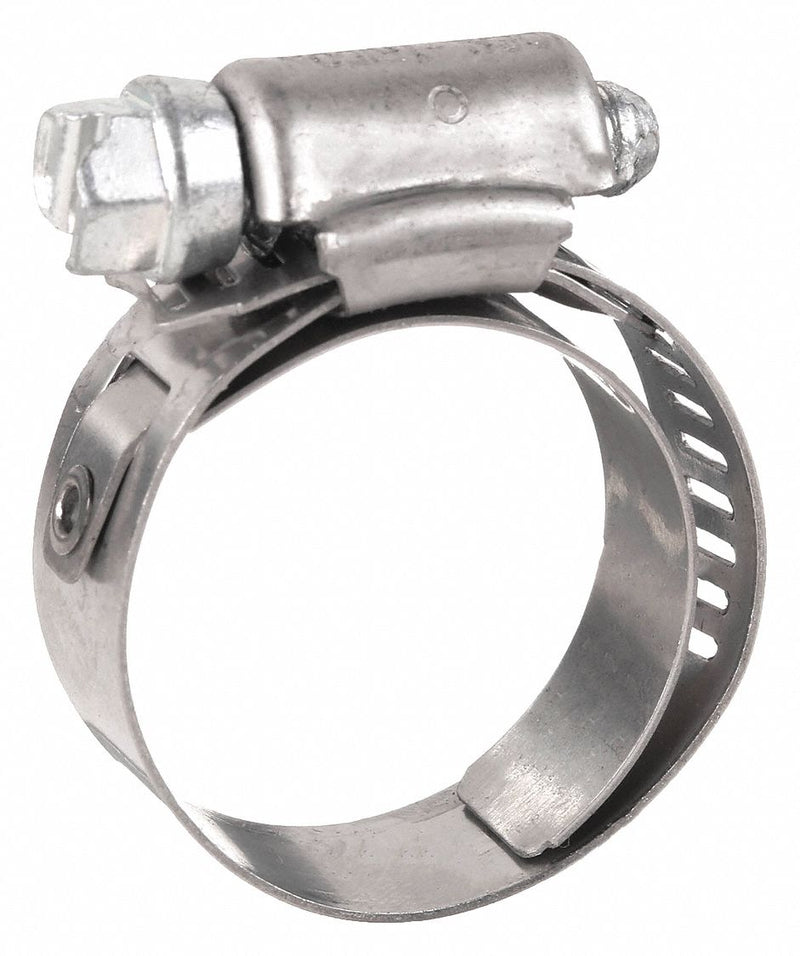

Approved Vendor 5340 Worm Gear Hose Clamp, 201 Stainless Steel, Lined Band, 2 1/16 in – 3 in Clamping Dia, 10 PK
UPC: | Harmonization / Schedule B : 7326.90.8688
Country of Origin: Mexico | Shipping Weight: 0.75 lbs
Original price
$25.36
-
Original price
$25.36
Original price
$25.36
$25.36
-
$25.36
Current price
$25.36
Worm Gear Hose Clamp, Band Material Stainless Steel, Band Material Grade 201, Band Thickness 0.022 in, Band Type Lined, Band Width 1/2 in, Clamp Maximum Inside Diameter 3 in, Clamp Minimum Inside Diameter 2 1/16 in, Fastener Housing Material 201 Stainless Steel, For Maximum Outside Diameter 3 in, Grade General Purpose, Maximum Operating Temperature 500 Degrees F, SAE Number 40, Screw Material Steel, Screw Material Finish Zinc-Plated, Clamp Type Worm Gear Clamp, Drive Type Slotted Hex
| Max. Clamp Dia. | 3 in |
|---|---|
| Min. Clamp Dia. | 2 1/16 in |
| Hose Clamp Band Width | 1/2 in |
| Metric Dia. Max. | 76.2 mm |
| Screw Size | 5/16 in |
| Metric Dia. Min. | 52.39 mm |
| Thickness | 0.022 in |
| Band Thickness | 0.022 in |
| Band Length | 0.5 in |
| Clamp Maximum Inside Diameter | 3 in |
| For Maximum Outside Diameter | 3 in |
| Clamp Minimum Inside Diameter | 2 1/16 in |
| Hex Size | 5/16 in |
| Band Width | 1/2 in |
| Clamp Type | Worm Gear Clamp |
| Hose Clamp Band Material | 200 Stainless Steel |
| Hose Clamp Housing Material | 200 Stainless Steel |
| Hose Clamp Product Group | Worm Gear Hose Clamp |
| Hose Clamp Screw Material | Plated Carbon Steel |
| SAE Number | 40 |
| Band Slots | Rectangular |
| Hose Clamp Install Torque | 35 in-lb |
| Standards | IATF16949, ISO 14001, ISO 9001 |
| Band Material Grade | 201 |
| System of Measurement | Inch |
| For Use On | Silicone Rubber and Other Soft Hose Applications |
| Fastener Housing Material | 201 Stainless Steel |
| Band Material | Stainless Steel |
| Band Type | Lined |
| Screw Material Finish | Zinc-Plated |
| Series | Lined 53-0 |
| Maximum Operating Temperature | 500 Degrees F |
| Grade | General Purpose |
| Drive Type | Slotted Hex |
| Screw Material | Steel |
| Installation Torque | 35 in-lb |
| Country of Origin | Mexico |
