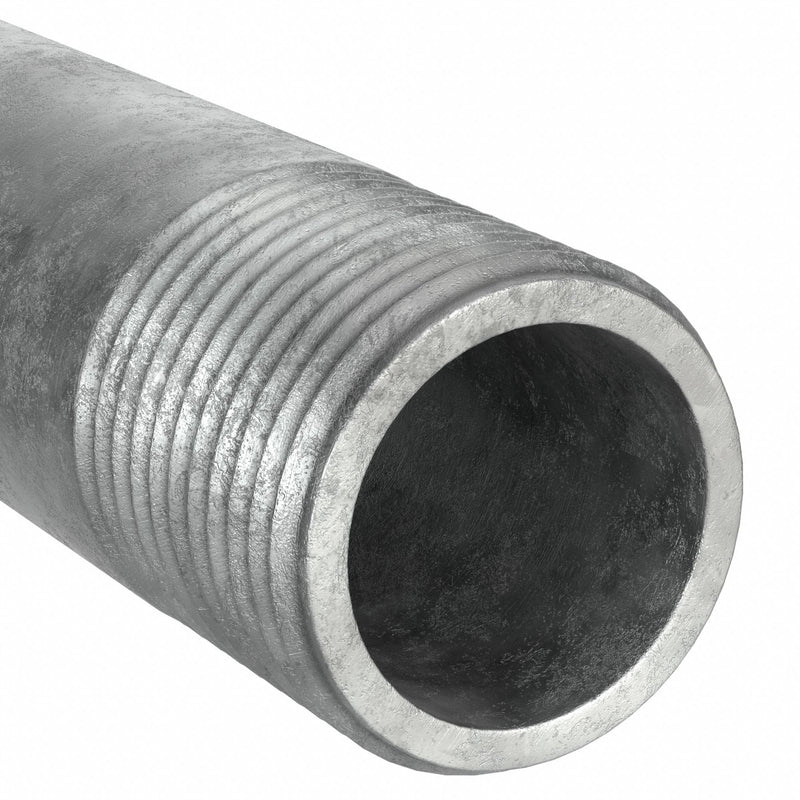

Approved Vendor 570-1200 Pipe, 3 in Nominal Pipe Size, 10 ft Lg, Schedule 40, Galvanized Steel, Threaded on Both Ends, Welded
UPC: | Harmonization / Schedule B : 7306.30.5033
Country of Origin: | Shipping Weight: 75.86 lbs
Original price
$976.81
-
Original price
$976.81
Original price
$976.81
$976.81
-
$976.81
Current price
$976.81
Pipe, Application Air, Gas, Potable Water, Finish/Coating Galvanized, Fitting Compatibility Class 150, Gravity Flow No, Inside Diameter 3 1/16 in, Manufacture Location Globally Sourced, Material Steel, Material Grade Grade B, Maximum Operating Pressure 866 psi @ 650 Degrees F, Maximum Operating Temperature 600 Degrees F, Maximum Steam Pressure 866 psi @ 650 Degrees F, Metal Pipe Construction Welded, Minimum Operating Temperature -20 Degrees F, Nominal Pipe Size 3 in, Outside Diameter 3 1/2 in
| Pipe Size - Nominal | 3 in |
|---|---|
| Overall Pipe Length | 10 ft |
| Pipe Size (Fittings) | 3" |
| Outside Dia. (In.) | 3.5 in |
| Inside Dia. (In.) | 3.0625 in |
| Wall Thickness (In.) | 0.1875 in |
| Pipe Size (Nominal) | 3" |
| Nominal Pipe Size | 3 in |
| Overall Length | 10 ft |
| Wall Thickness | 0.188 in |
| Outside Diameter | 3 1/2 in |
| Inside Diameter | 3 1/16 in |
| Wire Rope Length | 10 ft |
| Length | 10 ft |
| MFR # | 570-1200 |
| Zoro # | G5055136 |
| UPC # | - |
| Country of Origin | Multiple |
| Pipe Connection Type | Threaded on Both Ends |
| Pipe Type | Pipe |
| Material - Pipe | Galvanized Carbon Steel |
| Pipe Schedule | 40 |
| Pipe Weld Type | Electric Resistance Weld |
| Pipe Thread Type | MNPT x MNPT |
| Max. Pressure | 866 psi @ 650 Degrees F |
| Seamless/Welded | Welded |
| Basic Pipe Fitting Material | Metal |
| Material (Pipe) | Carbon Steel |
| Metal Detectable | Yes |
| Standards | ASME B1.20.1, ASTM A53, ASTM A733 |
| Gravity Flow | No |
| Application | Air, Gases, Potable Water |
| Thread Configuration | Threaded on Both Ends |
| Maximum Operating Temperature | 600 Degrees F |
| Material Grade | Grade B |
| Maximum Operating Pressure | 866 psi @ 650 Degrees F |
| Side B Connection Type | Threaded |
| Minimum Operating Temperature | -20 Degrees F |
| Fitting Compatibility | Class 150 |
| Side A Thread Type | NPT |
| Side A Connection Type | Threaded |
| Material | Steel |
| Side B Gender | Male |
| Maximum Steam Pressure | 866 psi @ 650 Degrees F |
| Side B Thread Type | NPT |
| Metal Pipe Construction | Welded |
| Schedule | Schedule 40 |
| Side A Gender | Male |
| Finish/Coating | Galvanized |
| Manufacture Location | Globally Sourced |
| Includes Pre-Applied Thread Sealant | Pre-Applied Thread Sealant Not Included |
