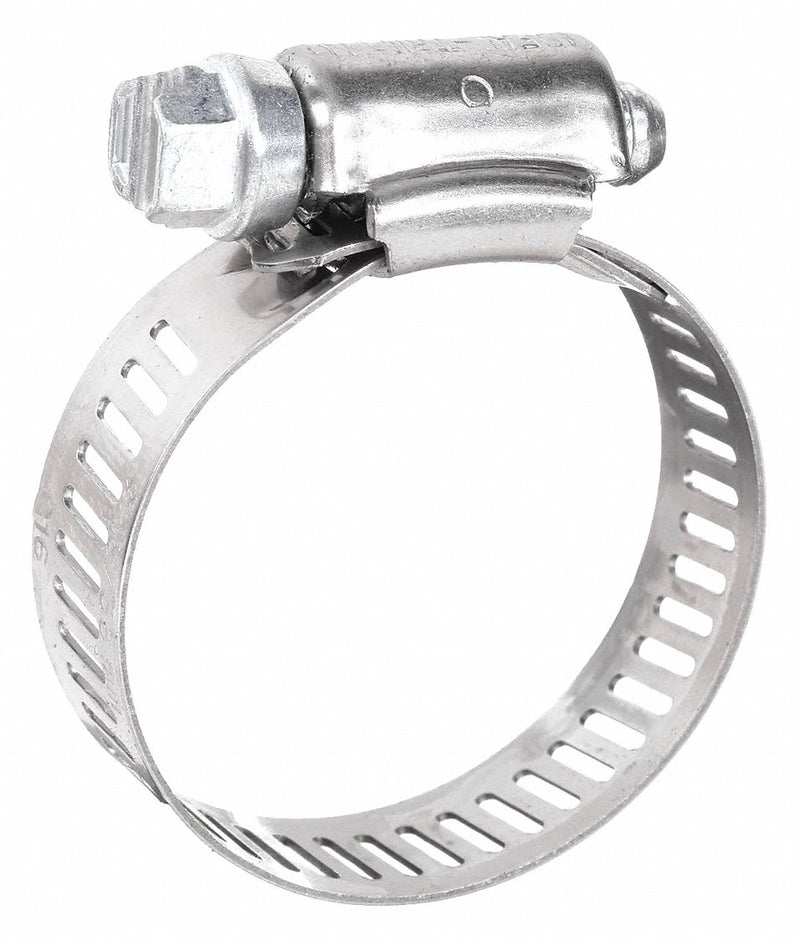

Approved Vendor 5712 Worm Gear Hose Clamp, 201 Stainless Steel, Perforated Band, 1/2 in – 1 1/4 in Clamping Dia, 10 PK
UPC: | Harmonization / Schedule B : 7326.90.8688
Country of Origin: United States | Shipping Weight: 0.4 lbs
Original price
$15.98
-
Original price
$15.98
Original price
$15.98
$15.98
-
$15.98
Current price
$15.98
Worm Gear Hose Clamp, Band Material Stainless Steel, Band Material Grade 201, Band Thickness 0.022 in, Band Type Perforated, Band Width 1/2 in, Clamp Maximum Inside Diameter 1 1/4 in, Clamp Minimum Inside Diameter 1/2 in, Fastener Housing Material 201 Stainless Steel, For Maximum Outside Diameter 1 1/4 in, Grade General Purpose, Maximum Operating Temperature 500 Degrees F, SAE Number 12, Screw Material Steel, Screw Material Finish Zinc-Plated, Clamp Type Worm Gear Clamp, Drive Type Slotted Hex
| Max. Clamp Dia. | 1 1/4 in |
|---|---|
| Min. Clamp Dia. | 1/2 in |
| Hose Clamp Band Width | 1/2 in |
| Thickness | 0.022 in |
| Metric Dia. Max. | 32 mm |
| Metric Dia. Min. | 13 mm |
| Screw Size | 5/16 in |
| For Maximum Outside Diameter | 1 1/4 in |
| Clamp Minimum Inside Diameter | 1/2 in |
| Clamp Maximum Inside Diameter | 1 1/4 in |
| Hex Size | 5/16 in |
| Band Thickness | 0.022 in |
| Band Length | 0.5 in |
| Band Width | 1/2 in |
| Clamp Type | Worm Gear Clamp |
| Hose Clamp Band Material | 200 Stainless Steel |
| Hose Clamp Housing Material | 200 Stainless Steel |
| Hose Clamp Product Group | Worm Gear Hose Clamp |
| Hose Clamp Screw Material | Zinc Plated Steel |
| SAE Number | 12 |
| Hose Clamp Install Torque | 30 in-lb |
| Band Slots | Rectangular |
| Standards | IATF16949, ISO 14001, ISO 9001 |
| System of Measurement | Inch |
| Screw Material Finish | Zinc-Plated |
| Maximum Operating Temperature | 500 Degrees F |
| Drive Type | Slotted Hex |
| Grade | General Purpose |
| Installation Torque | 35 in-lb |
| For Environment | Automotive, Household, Industrial |
| Band Material Grade | 201 |
| Band Material | Stainless Steel |
| Series | Hy-Gear |
| Band Type | Perforated |
| Screw Material | Steel |
| Fastener Housing Material | 201 Stainless Steel |
| Country of Origin | United States |
