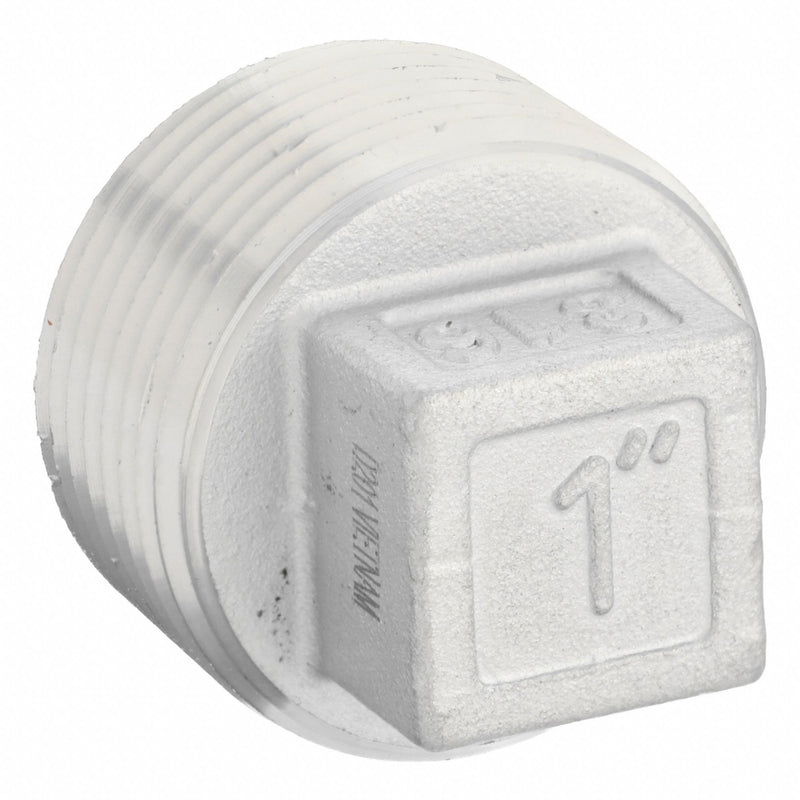

Approved Vendor 60SQ112N010 Plug, 1 in, NPT Threaded, Hex Drive Solid Plug, 316 Stainless Steel, 300 psi, Class 150
UPC: | Harmonization / Schedule B : 7307.29.0090
Country of Origin: | Shipping Weight: 0.19 lbs
The ZORO SELECT - 60SQ112N010 is a stainless steel square head plug intended to close the end of a threaded pipe, coupling, or fitting. Material: 316L stainless steel. This plug features a 2-inch square drive head that offers a flat wrenching surface for installation and removal. It is rated to handle a maximum operating pressure of 300 psi and can operate within a temperature range of -20 to 350 °F. The fitting conforms to ANSI B1.20.1 standards and is classified as Class 150 for pressure rating. Key Features: Material: 316L stainless steel. Shape: Square head plug. Connection Type: MNPT, 1 in nominal pipe size, 11.5 TPI on Side A. Pressure Rating: Class 150 with maximum operating pressure of 300 psi. Temperature range: -20 to 350 °F. Dimensions: Outside diameter of 1 inch and overall length of 32.5 mm. Drive Style: 2-inch square head for wrench engagement. Thread Sealant: Not pre-applied; seal not included. Meets ANSI Standards B1.20.1 and Class 150 pressure requirements.
| Pipe Size - Pipe Fitting | 1" |
|---|---|
| Pipe Size (Fittings) | 1" |
| Nominal Pipe Size | 1 in |
| Outside Diameter | 1 in |
| Overall Length | 1 9/32 in |
| Hex Size | 3/4 in |
| Thread Size | 1"-11 1/2 |
| Wire Rope Length | 1 9/32 in |
| Length | 1 9/32 in |
| MFR # | 60SQ112N010 |
| Zoro # | G1485951 |
| UPC # | - |
| Country of Origin | Multiple |
| Specific Fitting Shape | Square Head Plug |
| Pipe Fitting Material | 316 Stainless Steel |
| Fitting Connection Type | MNPT |
| Fitting Schedule/Class | Class 150 |
| Basic Pipe Fitting Shape | Plug |
| Basic Pipe Fitting Material | Metal |
| Max. Pressure | 300 psi |
| Fittings Sub-Category | Plugs |
| Pipe Fitting Schedule/Class | Class 150 |
| Max. Steam Pressure | 150 psi |
| Specific Pipe Fitting Shape | Square Head Plug |
| Standards | ASTM A351 |
| Temp. Range | -20 Degrees to 350 Degrees F |
| Fitting Side A Pipe Threading | 11 1/2 |
| Material Grade | 316L |
| Maximum Operating Pressure | 300 psi |
| Includes Seal | No |
| Magnetic | No |
| Class | Class 150 |
| Includes Pre-Applied Thread Sealant | No |
| Plug Drive Style | Hex |
| For Pipe Schedule | Schedule 40 |
| Thread Type | NPT |
| Minimum Operating Temperature | -20 Degrees F |
| Color | Silver |
| Maximum Operating Temperature | 350 Degrees F |
| Country of Origin | Varies (subject to change) |
