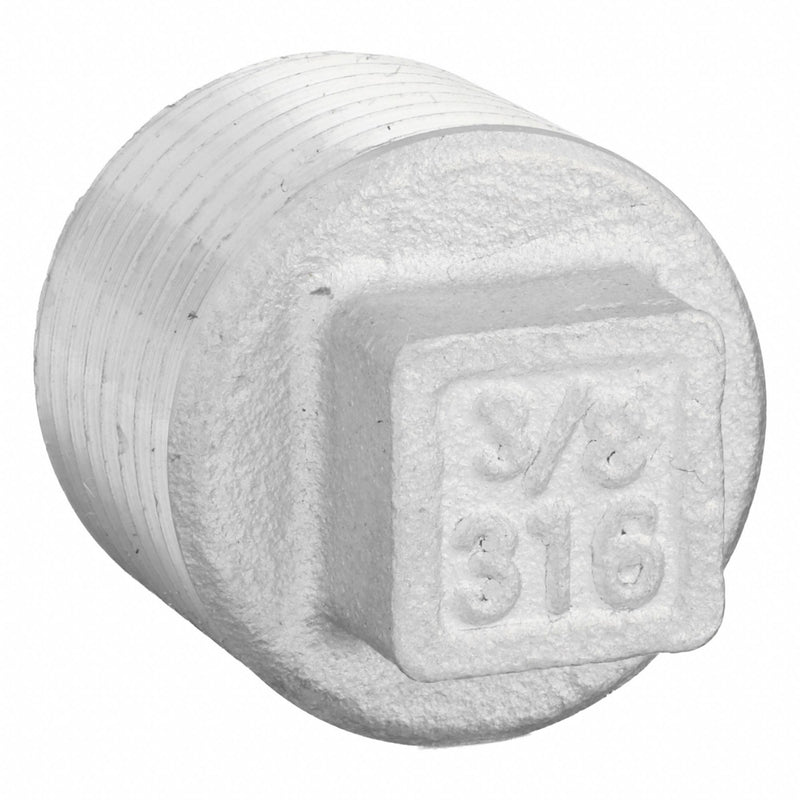

Approved Vendor 60SQ112N038 Plug, 3/8 in, NPT Threaded, Hex Drive Solid Plug, 316 Stainless Steel, 300 psi, Class 150
UPC: | Harmonization / Schedule B : 7326.90.8688
Country of Origin: | Shipping Weight: 0.03 lbs
The ZORO SELECT - 60SQ112N038 is a stainless steel square head plug designed to close or seal the end of a threaded pipe, coupling, or fitting. It features a 2-inch square head that provides a flat wrenching surface for installation and removal. Made from 316L stainless steel, this plug has a Class 150 pressure rating. It has a nominal pipe size of 3/8 inch with MNPT threaded connections and meets ANSI Standards B1.20.1 for thread specifications. The fitting is rated for operation within -20 to 350 °F and a maximum allowable operating pressure of 300 psi. Material: 316L stainless steel Shape: Square head plug with 2-inch square drive style for wrenching. Connection Type: Male National Pipe Thread (MNPT) with 18 TPI on Side A. Nominal Size: 3/8 inch with outside diameter matching this size. Pressure Rating: Class 150, maximum allowable operating pressure: 300 psi. Maximum Steam Pressure: 150 psi. Temperature Range: -20 to 350 °F. Standards: Complies with ANSI B1.20.1 thread standards. Overall Length: 20 mm. Does not include pre-applied thread sealant or seals. Non-magnetic.
| Pipe Size - Pipe Fitting | 3/8" |
|---|---|
| Pipe Size (Fittings) | 3/8" |
| Overall Length | 25/32 in |
| Nominal Pipe Size | 3/8 in |
| Outside Diameter | 3/8 in |
| Thread Size | 3/8"-18 |
| Hex Size | 3/8 in |
| Wire Rope Length | 25/32 in |
| Length | 25/32 in |
| MFR # | 60SQ112N038 |
| Zoro # | G2687991 |
| UPC # | - |
| Country of Origin | Multiple |
| Specific Fitting Shape | Square Head Plug |
| Pipe Fitting Material | 316 Stainless Steel |
| Fitting Connection Type | MNPT |
| Fitting Schedule/Class | Class 150 |
| Basic Pipe Fitting Shape | Plug |
| Basic Pipe Fitting Material | Metal |
| Max. Steam Pressure | 150 psi |
| Fittings Sub-Category | Plugs |
| Max. Pressure | 300 psi |
| Pipe Fitting Schedule/Class | Class 150 |
| Specific Pipe Fitting Shape | Square Head Plug |
| Standards | ASTM A351 |
| Temp. Range | -20 Degrees to 350 Degrees F |
| Includes Seal | No |
| For Pipe Schedule | Schedule 40 |
| Fitting Side A Pipe Threading | 18 |
| Material Grade | 316L |
| Includes Pre-Applied Thread Sealant | No |
| Class | Class 150 |
| Plug Drive Style | Hex |
| Maximum Operating Pressure | 300 psi |
| Magnetic | No |
| Thread Type | NPT |
| Color | Silver |
| Maximum Operating Temperature | 350 Degrees F |
| Minimum Operating Temperature | -20 Degrees F |
| Country of Origin | Varies (subject to change) |
