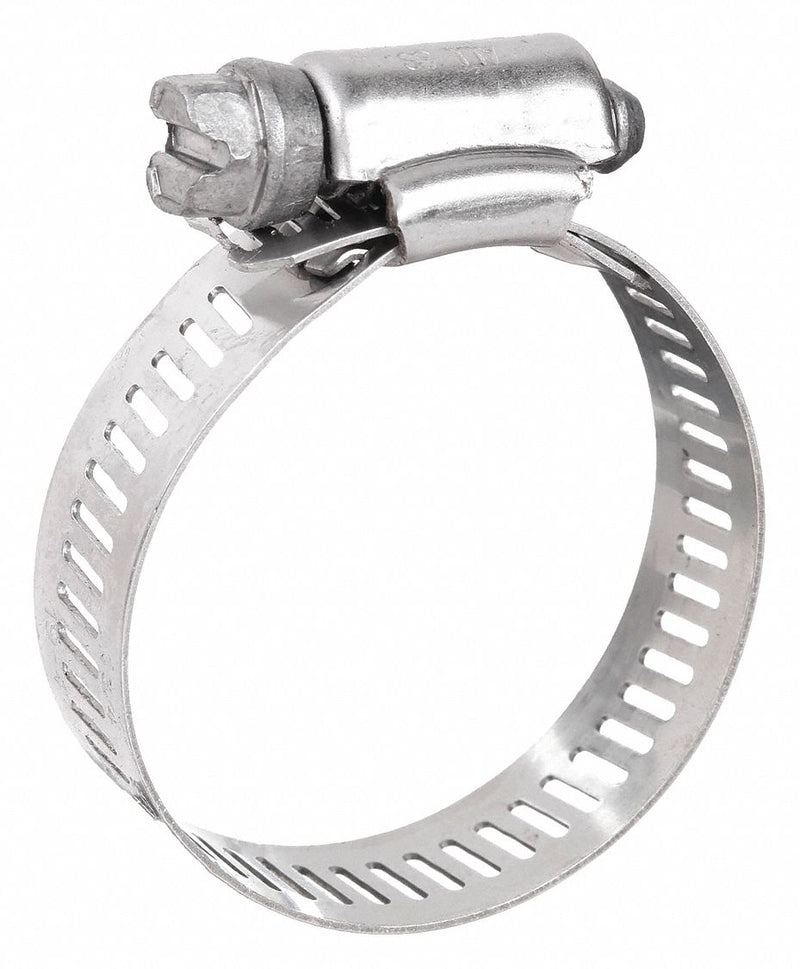

Approved Vendor 6824 Worm Gear Hose Clamp, 201 Stainless Steel, Perforated Band, 1 in – 2 in Clamping Dia, 10 PK

Name: Approved Vendor 6824 Worm Gear Hose Clamp, 201 Stainless Steel, Perforated Band, 1 in – 2 in Clamping Dia, 10 PK
Brand: Approved Vendor
SKU: RW2W402
Price: 24.94 USD
Availability: InStock

UPC: | Harmonization / Schedule B : 7326.90.8688

Country of Origin: United States | Shipping Weight: 0.55 lbs

$24.94 - $24.94

$24.94

$24.94 - $24.94

$24.94

Worm Gear Hose Clamp, Band Material Stainless Steel, Band Material Grade 201, Band Thickness 0.022 in, Band Type Perforated, Band Width 9/16 in, Clamp Maximum Inside Diameter 2 in, Clamp Minimum Inside Diameter 1 in, Fastener Housing Material 201 Stainless Steel, For Maximum Outside Diameter 2 in, Grade Heavy Duty, Maximum Operating Temperature 500 Degrees F, SAE Number 24, Screw Material Stainless Steel, Screw Material Grade 410, Clamp Type Worm Gear Clamp

Max. Clamp Dia.	2 in
Min. Clamp Dia.	1 in
Hose Clamp Band Width	9/16 in
Thickness	0.022 in
Metric Dia. Max.	51 mm
Screw Size	5/16 in
Metric Dia. Min.	25 mm
Band Thickness	0.022 in
Hex Size	5/16 in
Band Length	0.56 in
Clamp Minimum Inside Diameter	1 in
For Maximum Outside Diameter	2 in
Clamp Maximum Inside Diameter	2 in
Band Width	9/16 in
Clamp Type	Worm Gear Clamp
Hose Clamp Band Material	200 Stainless Steel
Hose Clamp Housing Material	200 Stainless Steel
Hose Clamp Product Group	Worm Gear Hose Clamp
Hose Clamp Screw Material	410 Stainless Steel
SAE Number	24
Hose Clamp Install Torque	35 in-lb
Band Slots	Rectangular
Standards	IATF16949, ISO 14001, ISO 9001
Maximum Operating Temperature	500 Degrees F
Fastener Housing Material	201 Stainless Steel
Series	Hy-Gear
Drive Type	Slotted Hex
For Environment	Industrial
Installation Torque	30 in-lb
Band Material Grade	201
Band Material	Stainless Steel
Band Type	Perforated
System of Measurement	Inch
Screw Material	Stainless Steel
Grade	Heavy Duty
Screw Material Grade	410
Country of Origin	United States
