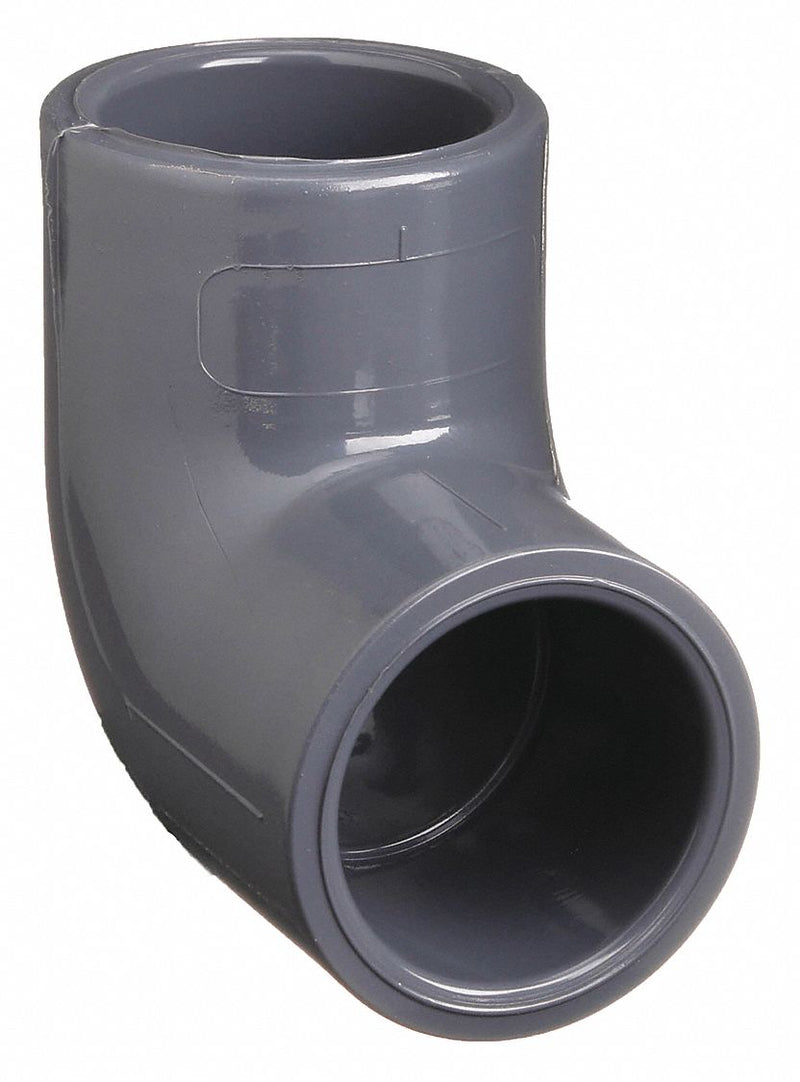

Approved Vendor 806-007 PVC 90-Degree Pipe Elbow, Schedule 80, 3/4 in, Socket x Socket, Gray
Original price
$2.63
-
Original price
$2.63
Original price
$2.63
$2.63
-
$2.63
Current price
$2.63
90 Degrees Elbow, PVC, Schedule 80, For Pipe Schedule Schedule 80, 3/4 in, Female, Socket, 1 3/8 in, 3/4 in, Female, Socket, 1 3/8 in, Includes Seal Seal Not Included, For Pipe Outside Diameter 3/4 in, 2 7/16 in Overall Length, 690 psi Maximum Operating Pressure, 32 Degrees to 140 Degrees F
| Specific Fitting Shape | 90 Degrees Elbow |
|---|---|
| Fitting Connection Type | Socket x Socket |
| Fitting Schedule/Class | Schedule 80 |
| Max. Pressure | 688 psi at 73 Degrees F |
| Basic Pipe Fitting Shape | Elbow |
| Specific Pipe Fitting Shape | 90 Degree Elbow |
| Basic Pipe Fitting Material | Plastic |
| Pipe Fitting Material | PVC |
| Pipe Fitting Schedule/Class | Schedule 80 |
| Fittings Sub-Category | Elbows |
| Color | Gray |
| Max. Temp. | 140 Degrees F |
| Standards | ASTM D2467 |
| Temp. Range | 32 Degrees to 140 Degrees F |
| Application | Non-Potable Water, Potable Water |
| Fitting Side A Type | Socket |
| Includes Plug | No |
| Fitting Side B Gender | Female |
| Fitting Side A Gender | Female |
| Includes Pre-Applied Thread Sealant | No |
| Maximum Operating Pressure | 690 psi @ 73 Degrees F |
| Low Lead Certified Standard | NSF 61 |
| Low Lead Compliance Level | Certified |
| Fitting Side B Type | Socket |
| For Pipe Schedule | 80 |
| Includes Shield | No |
| Includes Seal | No |
| Schedule | Schedule 80 |
| Restrictions | This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption). |
| Country of Origin | United States |
