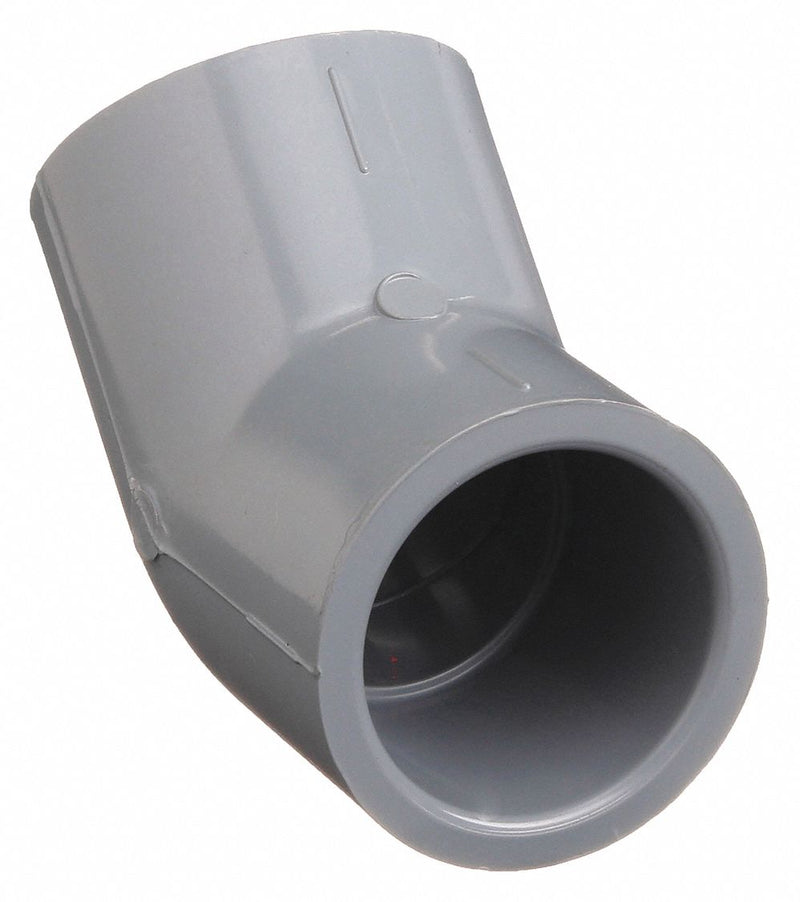

Approved Vendor 9817-005 CPVC 45-Degree Pipe Elbow, Schedule 80, 1/2 in, Socket x Socket, Gray
Original price
$4.20
-
Original price
$4.20
Original price
$4.20
$4.20
-
$4.20
Current price
$4.20
45 Degrees Elbow, CPVC, Schedule 80, For Pipe Schedule Schedule 80, 1/2 in, Female, Socket, 1 1/8 in, 1/2 in, Female, Socket, 1 1/8 in, Includes Seal Seal Not Included, For Pipe Outside Diameter 1/2 in, 1 55/64 in Overall Length, 850 psi Maximum Operating Pressure, 32 Degrees to 200 Degrees F
| Fitting Connection Type | Socket x Socket |
|---|---|
| Pipe Fitting Material | CPVC |
| Basic Pipe Fitting Shape | Elbow |
| Fitting Schedule/Class | Schedule 80 |
| Standards | ASTM D1784, NSF14 Certified |
| Max. Temp. | 210 Degrees F |
| Specific Fitting Shape | 45 Degree Elbow |
| Specific Pipe Fitting Shape | 45 Degree Elbow |
| Basic Pipe Fitting Material | Plastic |
| Color | Gray |
| Max. Pressure | 848 psi @ 73 Degrees F |
| Pipe Fitting Schedule/Class | Schedule 80 |
| Temp. Range | 32 Degrees to 200 Degrees F |
| Maximum Operating Pressure | 850 psi @ 73 Degrees F |
| Fitting Side B Type | Socket |
| For Pipe Schedule | 80 |
| Fitting Side A Type | Socket |
| Low Lead Certified Standard | NSF 61 |
| Includes Shield | No |
| Includes Seal | No |
| Fitting Side B Gender | Female |
| Schedule | Schedule 80 |
| Application | Non-Potable Water, Potable Water |
| Fitting Side A Gender | Female |
| Includes Pre-Applied Thread Sealant | No |
| Includes Plug | No |
| Low Lead Compliance Level | Certified |
| Restrictions | This product has been certified by a third party to be compliant with the “Safe Drinking Water Act” requirements for low lead in potable (human consumption - drinking and cooking) and non-potable water applications (non-human consumption). |
| Country of Origin | United States |
