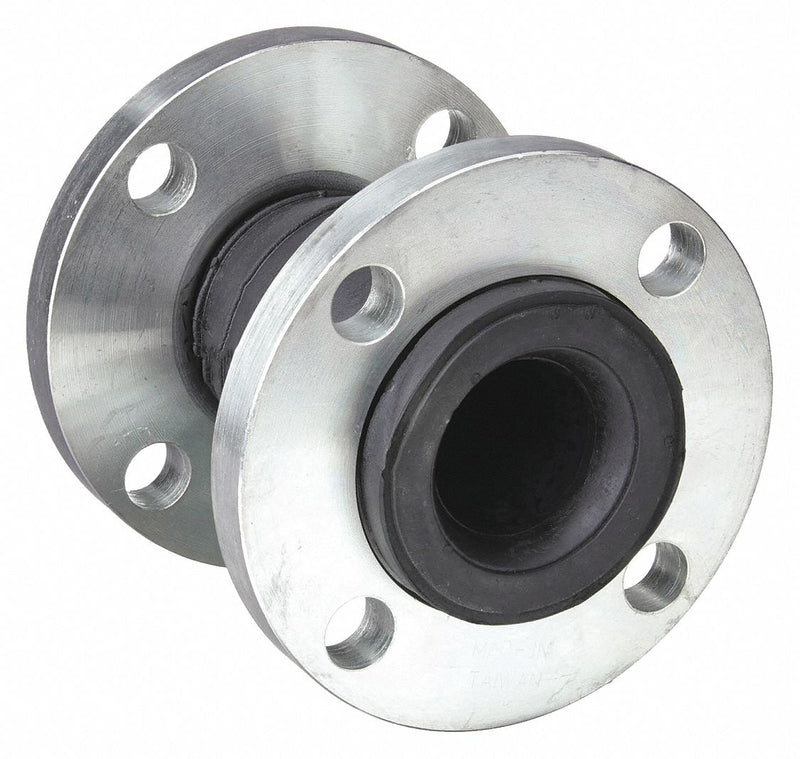

Approved Vendor AMSE202 Expansion Joint, 2 in Pipe Size, 6 in Flange Dia, 6 in Overall Lg, Steel with EPDM Bulb, For Air
Original price
$175.78
-
Original price
$175.78
Original price
$175.78
$175.78
-
$175.78
Current price
$175.78
Expansion Joint, Bolt Circle Diameter 4 3/4 in, Bolt Hole Size 5/8 In.-11, Bolt Hole Threading Threaded, Burst Pressure 853 psi, Compression Distance 1/2 in, Connection Type Flanged, Expansion Distance 3/8 in, Expansion Joint Type Single Bulb, Features Absorbs Pipe Movement and Stress, Flange Diameter 6 in, Flange Material Steel, Flange Material Finish Zinc-Plated, For Fluid Type Air, Joint Material EPDM
| Type | Single Sphere |
|---|---|
| Material | EPDM |
| Connection | Drilled |
| Max. Pressure | 225 psi @ 72 Degrees F |
| Bolt Holes | 4 |
| Temp. Range | -50 To 230 Deg F |
| Vacuum | 26 In Hg At 72 Deg F |
| Pipe Fitting Material | EPDM |
| Number of Bolt Holes | 4 |
| Flange Material Finish | Zinc-Plated |
| Bolt Hole Threading | Threaded |
| Minimum Operating Temperature | -50 Degrees F |
| Expansion Joint Type | Single Bulb |
| For Fluid Type | Air, Water |
| For Use On | Pipe |
| Burst Pressure | 853 psi |
| Joint Material | EPDM |
| Reinforcement Material | Synthetic Fiber |
| Features | Absorbs Pipe Movement and Stress |
| Maximum Off-Center Angle | 15 Degrees |
| Maximum Operating Pressure | 225 psi |
| Flange Material | Steel |
| Compression Distance | 1/2 in |
| Maximum Operating Temperature | 230 Degrees F |
| Expansion Distance | 3/8 in |
| For Environment | HVAC, Industrial Piping, Marine Service, Petrochemical, Pollution Control, Power Generating, Pulp and Paper, Water and Wastewater |
| Maximum Vacuum Pressure | 26 in Hg @ 72F |
| Offset Distance | 1/2 in |
| Resistance Properties | Corrosion Resistant |
| Connection Type | Flanged |
| Country of Origin | Italy |
