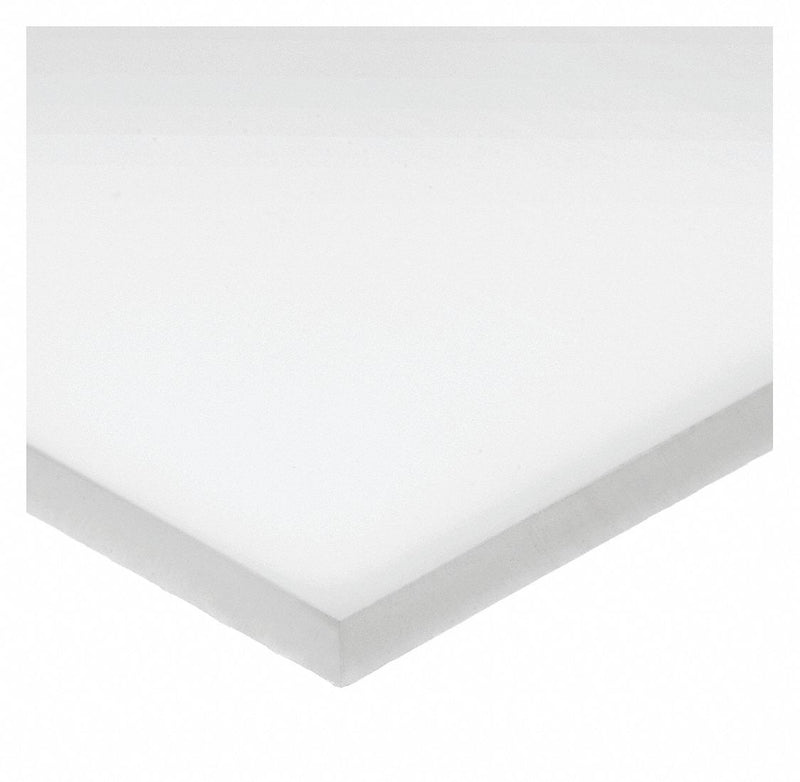

Approved Vendor BULK-PS-PTFE-676 PTFE Sheet, 0.125 in Thick, 12 in x 24 in, White, Opaque
Original price
$164.00
-
Original price
$164.00
Original price
$164.00
$164.00
-
$164.00
Current price
$164.00
PTFE Sheet, PTFE, Grade Standard, Plastic Length 24 in, Plastic Width 12 in, Plastic Thickness 0.125 in, White, Plastic Clarity Opaque, Tensile Strength 3,000 psi, Impact Strength 3.5 ft-lb/in, Friction Coefficient 0.07, Water Absorption 0.01 Percent, Temperature Range -290 Degrees to 500 Degrees F, Plastic Density 0.078 lb/cu in, Plastic Hardness 55D
| Plastic Material | PTFE |
|---|---|
| Plastic Color | White |
| Max. Temp. (F) | 500 Degrees F |
| Min. Temp. (F) | -290 Degrees F |
| Color | White |
| Operating Temp. Range | -290 Degrees to 500 Degrees F |
| Material | PTFE |
| Tensile Strength | 3,000 psi |
| Standards | FDA, UL 94 V-0 |
| Thickness Tolerance | (-0" - +0.004") |
| Impact Strength | 3.5 ft-lb/in |
| Tensile Strength Rating | Poor |
| Friction Rating | Very Slippery |
| Maximum Adhesive Temperature | 375 Degrees F |
| Water Absorption | 0.01 % |
| Minimum Adhesive Temperature | -30 Degrees F |
| Backing Type | Acrylic Adhesive |
| Shape | Rectangle |
| Friction Coefficient | 0.07 |
| Plastic Hardness | 55D |
| Plastic Density | 0.078 lb/cu in |
| Water Absorption Rating | Excellent |
| Impact Strength Rating | Good |
| Grade | Standard |
| Plastic Clarity | Opaque |
| Plastic Thickness Tolerance | +0.007/-0.003 in |
| Temperature Range | -290 Degrees to 500 Degrees F |
| UV Resistant | Yes |
| Machinability | 100 % |
| Minimum Temperature | -290 Degrees F |
| Plastic Hardness Rating | Medium Soft |
| Wear Factor | Excellent |
| Corrosion and Chemical Resistance | Excellent |
| Maximum Temperature | 500 Degrees F |
| Product Type | Plastic Sheet |
| Elongation | 300 % |
| Dielectric Strength | 28.5 kV/mm |
| UV-Resistant | UV-Resistant |
| Weight | 2.74 lb |
| Flexural Modulus | 400 MPa |
| Product Form | Sheet |
| Shore Hardness | 55 Shore D |
| Scratch-Resistant | Not Scratch-Resistant |
| Rockwell Hardness | 75 HRR |
| Coefficient of Thermal Expansion | 11.6 x 10^-5 K^-1 |
| Metal Detectable | Not Metal Detectable |
| Static-Resistant | Not Static-Resistant |
| Wear Rate | Not Rated |
| Country of Origin | Multiple |
