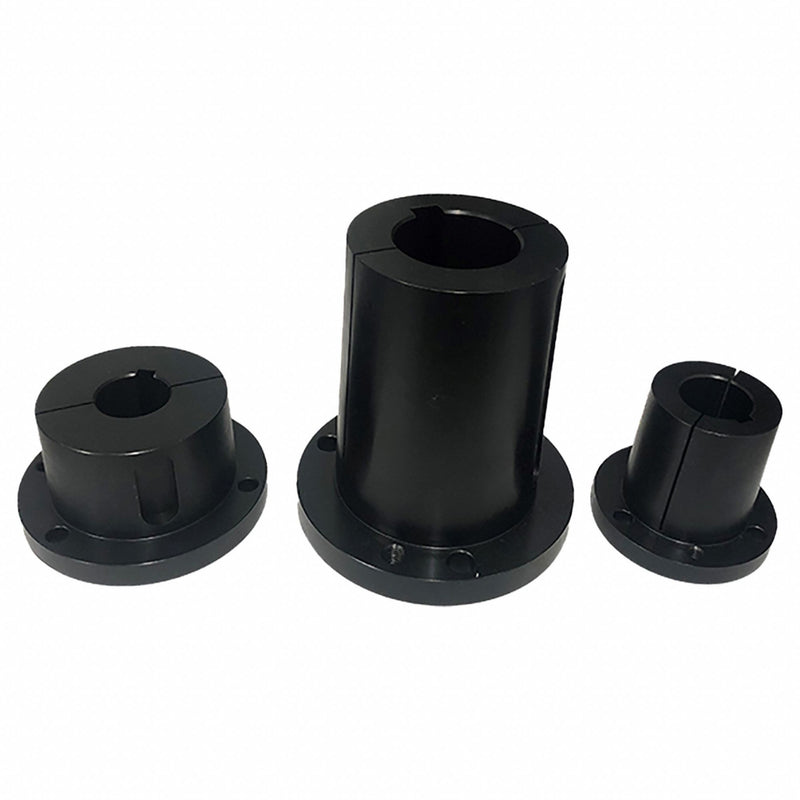

Approved Vendor BX5/8 Split Taper Bushing B Series 5/8 in Bore Steel

Approved Vendor BX5/8 Split Taper Bushing, B Series, 5/8 in Bore, Steel, Solid Flange

$78.98 - $78.98
$78.98
$78.98 - $78.98
$78.98

Split Taper Bushing, Bushing Type Split Taper, Bore Bushing Series B, Bore Diameter 5/8 in, Length 1.938 in, Bolt Circle Diameter 3.13 in, System of Measurement Inch, Bushing Diameter 2.625 in, Fastener Tightening Torque Capacity 192 in-lb, Flange Type Solid, Flange Width 1/2 in, For Shaft Type Keyed, Includes (3) Cap Screws, Keyway Height 3/32 in, Keyway Width 3/16 in, Length Less Flange 1.438 in, Material Steel, Overall Diameter 3.688 in, Taper 3/4 in Per ft

Bore Bushing Series B
Includes (3) Cap Screws
System of Measurement Inch
Bushing Type Split Taper
Taper 3/4 in Per ft
Fastener Tightening Torque Capacity 192 in-lb
Material Steel
Flange Type Solid
For Shaft Type Keyed
Country of Origin China
