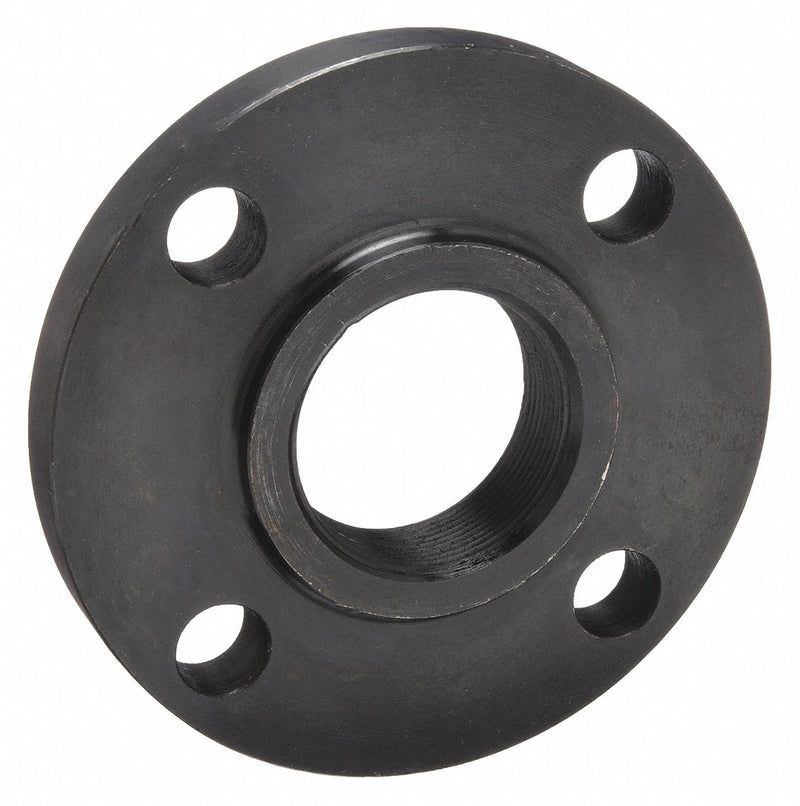

Approved Vendor FLCS1RFTHD212 Metal Pipe Flange, 2 1/2 in, Female NPT Threaded, Steel, Raised Flange, Class 150
UPC: | Harmonization / Schedule B : 7307.91.5030
Country of Origin: | Shipping Weight: 7.75 lbs
Original price
$97.36
-
Original price
$97.36
Original price
$97.36
$97.36
-
$97.36
Current price
$97.36
Flange, Raised, 2 1/2 in Nominal Pipe Size, Flanged x FNPT, 7 in Flange Outside Diameter, 13/16 in Flange Thickness, 4 1/4 in Overall Length, Steel, Anodized, A105, Class Class 150, For Pipe Schedule Schedule 40, 150 psi Maximum Operating Pressure, -29 Degrees to 425 Degrees F, Number of Bolt Holes 4, 5 1/2 in Bolt Circle Diameter, 3/4 in Bolt Hole Diameter, 8 Flange Fitting Threading
| Pipe Size (Fittings) | 2-1/2" |
|---|---|
| Outside Dia. | 7" |
| Pipe Size - Pipe Fitting | 2-1/2 in |
| Flange Thickness | 13/16 in |
| Flange Outside Diameter | 7 in |
| Bolt Circle Diameter | 5 1/2 in |
| Bolt Hole Diameter | 3/4 in |
| Nominal Pipe Size | 2 1/2 in |
| Overall Length | 4 1/4 in |
| Wire Rope Length | 4 1/4 in |
| Length | 4 1/4 in |
| Specific Fitting Shape | Flange |
| Fitting Connection Type | NPT |
| Pipe Fitting Material | Black Steel |
| Class | Class 150 |
| Standards | ASME B16.3 and B16.4, ASTM A-197, ASTM A47, FM Approved, UL Listed |
| Basic Pipe Fitting Shape | Flange |
| Max. Pressure | 150 psi@450 Degrees F |
| Basic Pipe Fitting Material | Metal |
| Saturated Steam Pressure | 150 psi |
| Pipe Fitting Connection Type | NPT |
| Pipe Fitting Schedule/Class | Class 150 |
| Specific Pipe Fitting Shape | Flange |
| Fitting Schedule/Class | Class 150 |
| Temp. Range | -29 Degrees to 425 Degrees F |
| For Pipe Schedule | Schedule 40 |
| Finish/Coating | Anodized |
| Low Lead Compliance Level | No Lead Content |
| Flange Fitting Threading | 8 |
| Application | Air, Fuels, Non-Potable Water, Potable Water, Gases |
| Number of Bolt Holes | 4 |
| Connection Surface | Raised |
| Color | Black |
| Maximum Operating Pressure | 150 psi |
| Type | Class 150, Threaded |
| Pipe Connection Type | Threaded |
| Pipe Connection Gender | Female |
| Gravity Flow | Pressure |
| Material Grade | A105 |
| Minimum Operating Temperature | -20 Degrees F |
| Maximum Operating Temperature | 800 Degrees F |
| Manufacture Location | Globally Sourced |
| Country of Origin | Multiple |
