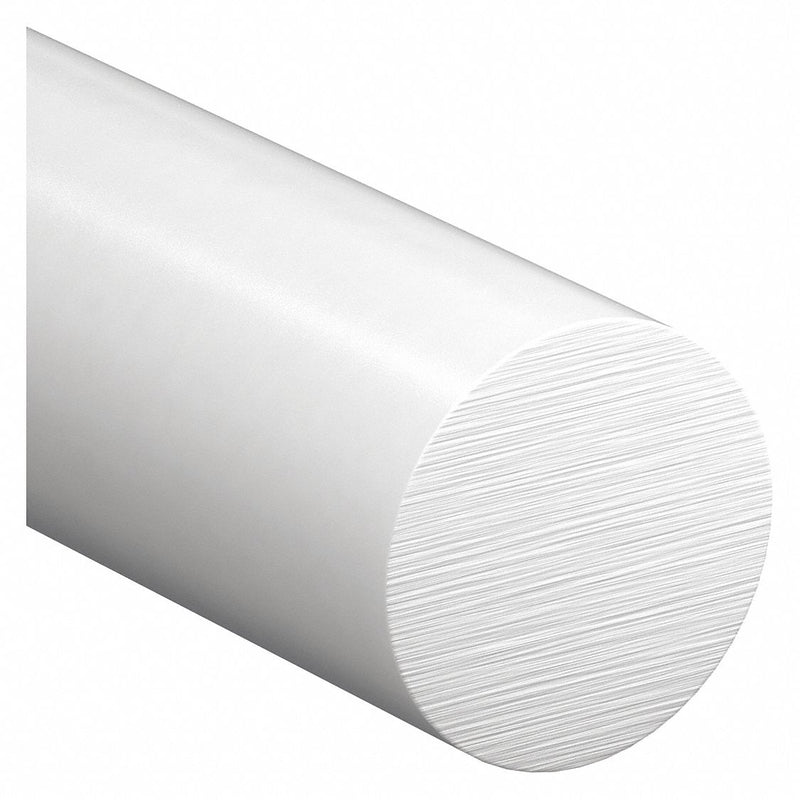

Approved Vendor G15-TRCE-1.0-1 PTFE Rod, Standard Grade, 1 in Dia, 12 in Lg, White
Original price
$68.42
-
Original price
$68.42
Original price
$68.42
$68.42
-
$68.42
Current price
$68.42
PTFE Rod, PTFE, Grade Standard, Plastic Length 12 in, Plastic Diameter 1 in, White, Plastic Clarity Opaque, Minimum Temperature -328 Degrees F, Maximum Temperature 500 Degrees F, Tensile Strength 4,350 psi, Impact Strength 3 ft-lb/in, Friction Coefficient 0.08, Water Absorption 0.01 Percent, Plastic Density 138.24 lb/cu ft, Plastic Hardness 55D
| Material | PTFE |
|---|---|
| Color | White |
| Tensile Strength (PSI) | 4350 |
| Max. Temp. (F) | 500 Degrees F |
| Standards | FDA |
| Min. Temp. (F) | -328 Degrees F |
| Impact Strength (Lbs.) | 3 |
| Type | Saw Cut Ends |
| Weight | 0.24 lb |
| Water Absorption Rating | Excellent |
| Maximum Temperature | 500 Degrees F |
| Corrosion and Chemical Resistance | Excellent |
| Grade | Standard |
| Shape | Rod |
| UV Resistant | Yes |
| Plastic Hardness Rating | Medium Soft |
| Friction Rating | Very Slippery |
| Friction Coefficient | 0.08 |
| Minimum Temperature | -328 Degrees F |
| Machinability | Not Rated |
| Impact Strength | 3 ft-lb/in |
| Temperature Range | -328 Degrees to 500 Degrees F |
| Plastic Clarity | Opaque |
| Tensile Strength | 4,350 psi |
| Water Absorption | 0.01 % |
| Impact Strength Rating | Good |
| Tensile Strength Rating | Poor |
| Wear Factor | Excellent |
| Plastic Hardness | 55D |
| Plastic Density | 138.24 lb/cu ft |
| Light Transmission | 9 % |
| Static-Resistant | Not Static-Resistant |
| UV-Resistant | UV-Resistant |
| Rockwell Hardness | 50 HRR |
| FDA Compliance | Not FDA Approved |
| Coefficient of Thermal Expansion | 13 x 10^-5 |
| Metal Detectable | Not Metal Detectable |
| Dielectric Strength | 80 kV/mm |
| Shore Hardness | 55 Shore D |
| Scratch-Resistant | Not Scratch-Resistant |
| Fabrication | Molded |
| Wear Rate | 3.40 x 10^-4 cu mm/N-m |
| Flexural Modulus | 0.04 GPa |
| Country of Origin | Italy |
