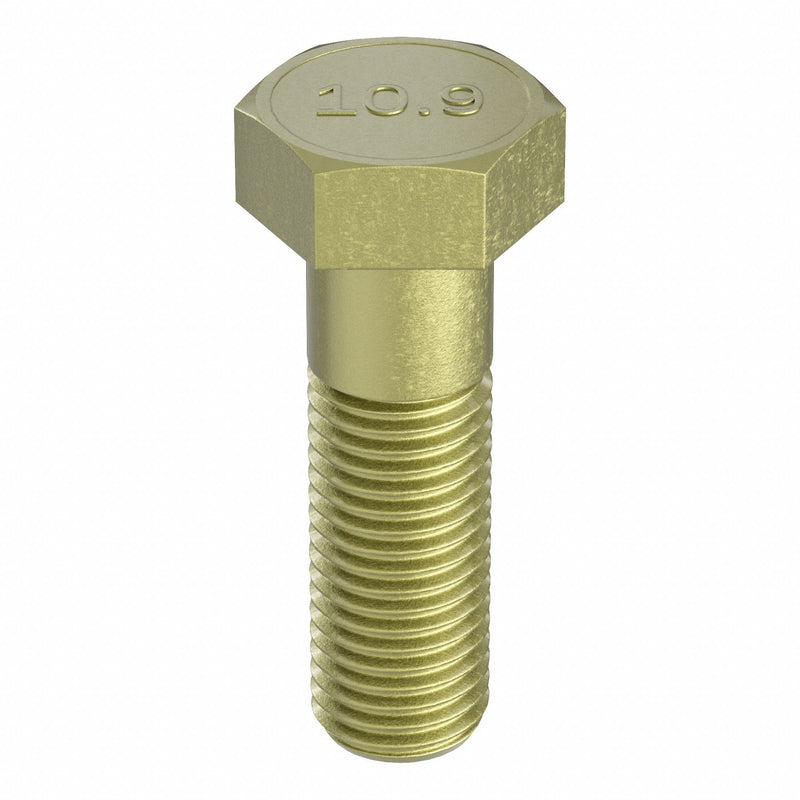

Approved Vendor M04104.200.0100 Hex Head Cap Screw, Steel, Class 10.9, Zinc Yellow, M20x2.50, Coarse, 100 mm lg, Metric, 10 PK
UPC: | Harmonization / Schedule B : 7318.15.8066
Country of Origin: | Shipping Weight: 6.68 lbs
The ZORO SELECT - M04104.200.0100 is a Hex Head Cap Screw, a type of fastener with a hexagonal-shaped head designed for secure material joining in various industrial applications. This screw adheres to the DIN 931 Dimensional Standards and requires an external hex drive for installation or removal. Made from steel, it has a zinc yellow finish that contributes to its durability and corrosion resistance. Fastener Length: With a length of 100 mm, this screw is designed for insertion into materials. Globally Sourced: Procured from international manufacturers ensuring diverse quality and price options. Material Grade/Class: Class 10.9 indicates strong hardness and resistance properties suitable for various applications. Rockwell Hardness: HRC32 measure indicates the product's hardness in relation to potential penetration. Tensile Strength: A specified tensile stress limit of 150,800 psi as per manufacturer's testing. Thread Direction & Size: Right hand thread direction that tightens clockwise; size M20-2.50 intended for use with corresponding nuts or holes. Thread Style & Type: Partially threaded design intended for various applications; Metric Coarse thread type designed for compatibility with pre-drilled holes/materials
| Thread Size | M20-2.50 |
|---|---|
| Fastener Length | 100 mm |
| Head Width | 30 mm |
| Head Height | 12.5 mm |
| Min. Thread Length | 46 mm |
| Head and Washer Height | 12.5 mm |
| Overall Length | 100 mm |
| Screw Size | M20 |
| Minimum Thread Length | 46 mm |
| Wire Rope Length | 100 mm |
| Length | 100 mm |
| System of Measurement | Metric |
| Drive | External Hex |
| Material Grade/Class | Class 10.9 |
| Material | Steel |
| Finish | Zinc Yellow |
| Thread Style | Partially Threaded |
| Thread Direction | Right Hand |
| Standards | DIN 931 |
| Tensile Strength | 150,800 psi |
| Rockwell Hardness | HRC32 |
| Thread Type | Coarse |
| Proof Load | 940 N/sq mm |
| Threadlocker Minimum Temperature | M20-2.50 |
| Dimensional Standards | DIN 931 |
| Threadlocker Maximum Temperature | 2.5 mm |
| Globally Sourced | Globally Sourced |
| Manufacturer Location | Globally Sourced |
| Fastener Industry Standards | DIN 931 |
| Type | Hex Head Cap Screw |
| Drive Type | External Hex |
| Head Type | Hex |
| Country of Origin | Multiple |
