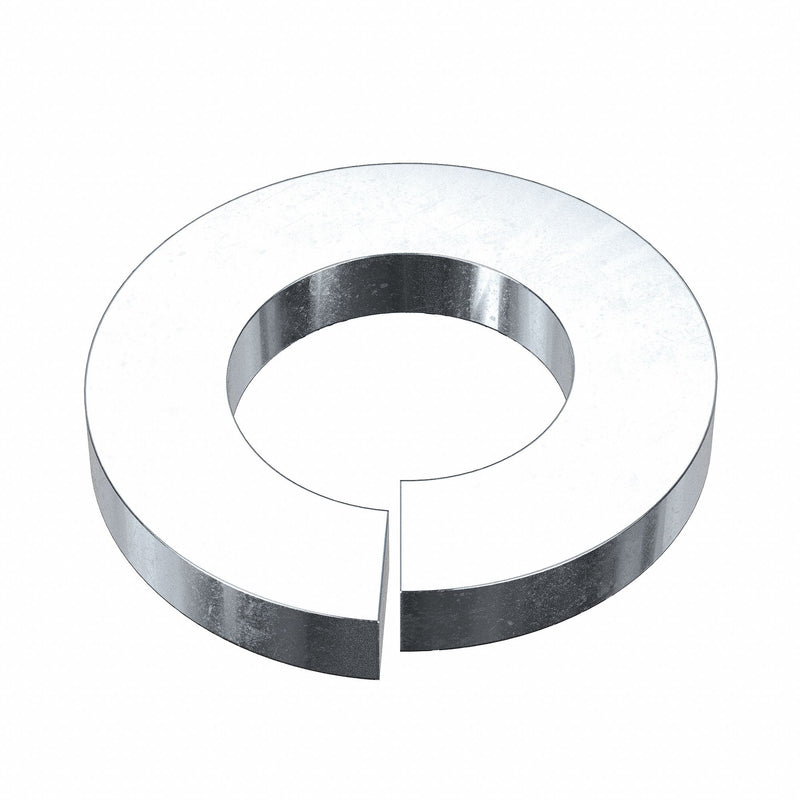

Approved Vendor M37020.080.0001 Split Lock Washer, Case Hardened, Zinc Plated, Steel, M8 Screw Sz, 8.5 mm Max. Inside Dia, 100 PK
UPC: | Harmonization / Schedule B : 7318.21.0030
Country of Origin: | Shipping Weight: 0.353 lbs
Original price
$3.75
-
Original price
$3.75
Original price
$3.75
$3.75
-
$3.75
Current price
$3.75
Split Lock Washer, Standard, Carbon Steel, Finish Zinc, Fits Bolt Sizes M8, Inside Dia. 8.1mm, Outside Dia. 14.8mm, Thickness 2mm, Thickness Tolerance +/-0.10mm, Rockwell Hardness C44 to C51, General Purpose, Meets/Exceeds DIN 127B, Refills -, Package Quantity 100
| For Screw Size | M8 |
|---|---|
| Outside Diameter | 14.8 mm |
| Minimum Thickness | 2 mm |
| Maximum Thickness | 2 mm |
| Inside Diameter | 8.1 mm |
| Outside Diameter Tolerance | +/-0.254 mm |
| Inside Diameter Tolerance | +/-0.127 mm |
| Inside Diameter - Maximum | 8.5 mm |
| Minimum Inside Diameter | 8.1 mm |
| Outside Diameter - Maximum | 14.8 mm |
| MFR # | M37020.080.0001 |
| Zoro # | G1455431 |
| UPC # | - |
| Country of Origin | Multiple |
| CAD Available | Yes |
| Material | Steel |
| Finish | Zinc Plated |
| Standards | DIN 127B |
| System of Measurement | Metric |
| Material Grade/Class | Not Graded |
| Thickness Tolerance | +/-0.1 mm |
| Application | General Purpose |
| Rockwell Hardness | C44 |
| Color | Silver |
| Maximum Temperature | 275 Degrees F |
| Lock Washer Type | Split Lock |
| Manufacturer Location | Globally Sourced |
| Minimum Temperature | 10 Degrees F |
| Material Quality Standards | ASTM A307A, SAE J429 |
| Pack Size | Small Pack |
| Made in North America | Not Made in North America |
| Removable | Removable |
| Dimensional Standards | DIN 127 B |
| Washer Type | Regular |
| Hardness | 44 HRC |
| Type | Split Lock Washer |
| Country of Origin | Varies (subject to change) |
