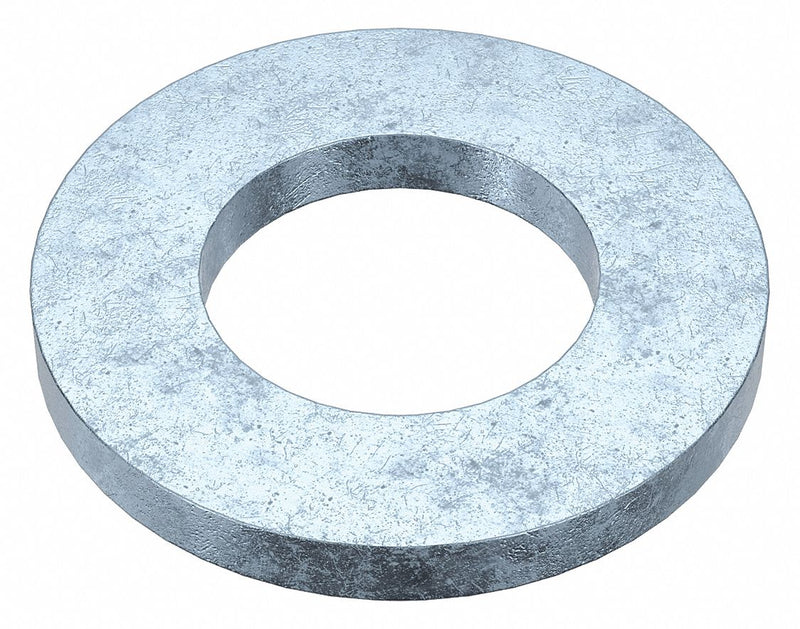

Approved Vendor M38130.120.0001 Flat Washer, Zinc Plated, Steel, M12 Screw Sz, 13.27 mm In Dia, 24 mm Out Dia, 50 PK
UPC: | Harmonization / Schedule B : 7318.22.0000
Country of Origin: | Shipping Weight: 0.639 lbs
Original price
$7.78
-
Original price
$7.78
Original price
$7.78
$7.78
-
$7.78
Current price
$7.78
Flat Washer, Flat Washer Type Standard, Dimensional Standards DIN 125-1A, Material Steel, Material Grade/Class Not Graded, Finish Zinc-Plated, For Screw Size M12, Inside Diameter 13.27 mm, Outside Diameter 24 mm, Maximum Thickness 2.7 mm, System of Measurement Metric, Minimum Thickness 2.3 mm, Color Silver, Inside Diameter Tolerance 0.512-0.522, Made in North America Not Made in North America, Manufacturer Location Globally Sourced, Material Quality Standards Not Rated
| For Screw Size | M12 |
|---|---|
| Outside Diameter | 24 mm |
| Minimum Thickness | 2.5 mm |
| Maximum Thickness | 2.5 mm |
| Inside Diameter | 13 mm |
| Outside Diameter Tolerance | 0.924-0.945 |
| Inside Diameter Tolerance | 0.512-0.522 |
| CAD Available | Yes |
| Material | Steel |
| Finish | Zinc Plated |
| Standards | DIN 125-1A |
| System of Measurement | Metric |
| Type | Flat Washer |
| Color | Silver |
| Rockwell Hardness | 140HV |
| Thickness Tolerance | 0.091-0.106 |
| Pack Size | Small Pack |
| Dimensional Standards | DIN 125-1A |
| Material Quality Standards | Not Rated |
| Material Grade/Class | Not Graded |
| Removable | Removable |
| Manufacturer Location | Globally Sourced |
| RoHS Compliant | RoHS Compliant |
| Maximum Temperature | 350 Degrees C |
| Minimum Temperature | -58 Degrees C |
| Made in North America | Not Made in North America |
| REACH Compliant | REACH Compliant |
| Hardness | 140 HV |
| Country of Origin | Multiple |
