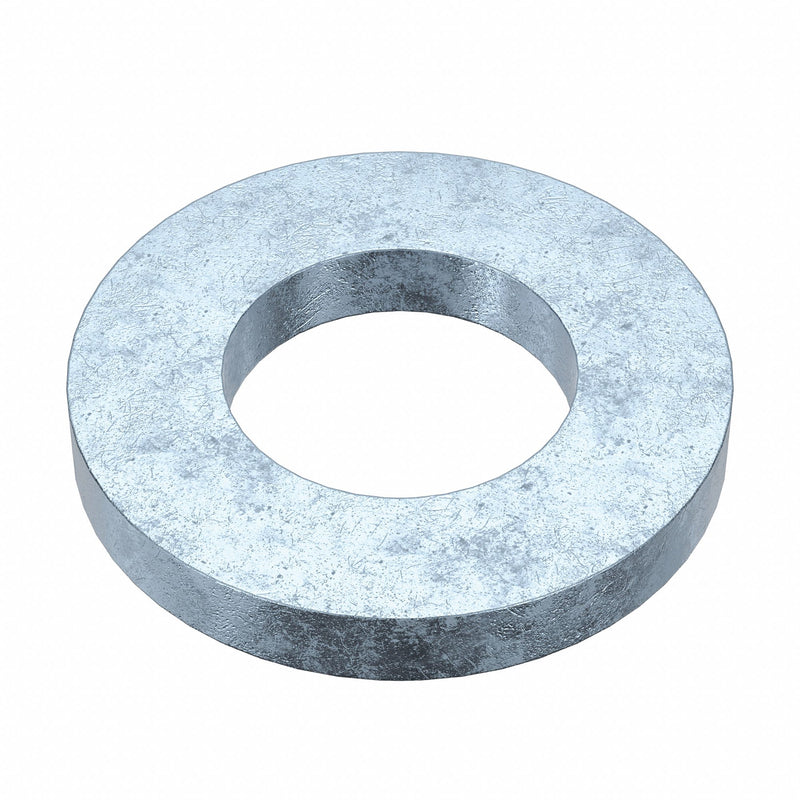

Approved Vendor M38130.140.0001 Flat Washer, Zinc Plated, Steel, M14 Screw Sz, 15.27 mm In Dia, 28 mm Out Dia, 50 PK
UPC: | Harmonization / Schedule B : 7318.22.0000
Country of Origin: | Shipping Weight: 0.948 lbs
Original price
$7.74
-
Original price
$7.74
Original price
$7.74
$7.74
-
$7.74
Current price
$7.74
Flat Washer, Flat Washer Type Standard, Dimensional Standards DIN 125-1A, Material Steel, Material Grade/Class Not Graded, Finish Zinc-Plated, For Screw Size M14, Inside Diameter 15.27 mm, Outside Diameter 28 mm, Maximum Thickness 2.7 mm, System of Measurement Metric, Minimum Thickness 2.3 mm, Color Silver, Inside Diameter Tolerance 0.591-0.601, Made in North America Not Made in North America, Manufacturer Location Globally Sourced, Material Quality Standards Not Rated
| For Screw Size | M14 |
|---|---|
| Outside Diameter | 28 mm |
| Minimum Thickness | 2.5 mm |
| Maximum Thickness | 2.5 mm |
| Inside Diameter | 15 mm |
| Outside Diameter Tolerance | 1.082-1.102 |
| Inside Diameter Tolerance | 0.591-0.601 |
| MFR # | M38130.140.0001 |
| Zoro # | G1663821 |
| UPC # | - |
| Country of Origin | Multiple |
| Material | Steel |
| Finish | Zinc Plated |
| Standards | DIN 125-1A |
| System of Measurement | Metric |
| Brinell Hardness | 200 |
| Thickness Tolerance | 0.091-0.106 |
| Rockwell Hardness | 140HV |
| Color | Silver |
| Type | Flat Washer |
| Minimum Temperature | -58 Degrees C |
| Maximum Temperature | 350 Degrees C |
| Made in North America | Not Made in North America |
| Dimensional Standards | DIN 125-1A |
| Material Grade/Class | Not Graded |
| Pack Size | Small Pack |
| Removable | Removable |
| RoHS Compliant | RoHS Compliant |
| Material Quality Standards | Not Rated |
| REACH Compliant | REACH Compliant |
| Manufacturer Location | Globally Sourced |
| For Use With | Property Class 8.8 And 10.9 Screws And Studs |
| Hardness | 140 HV |
| Country of Origin | Varies (subject to change) |
