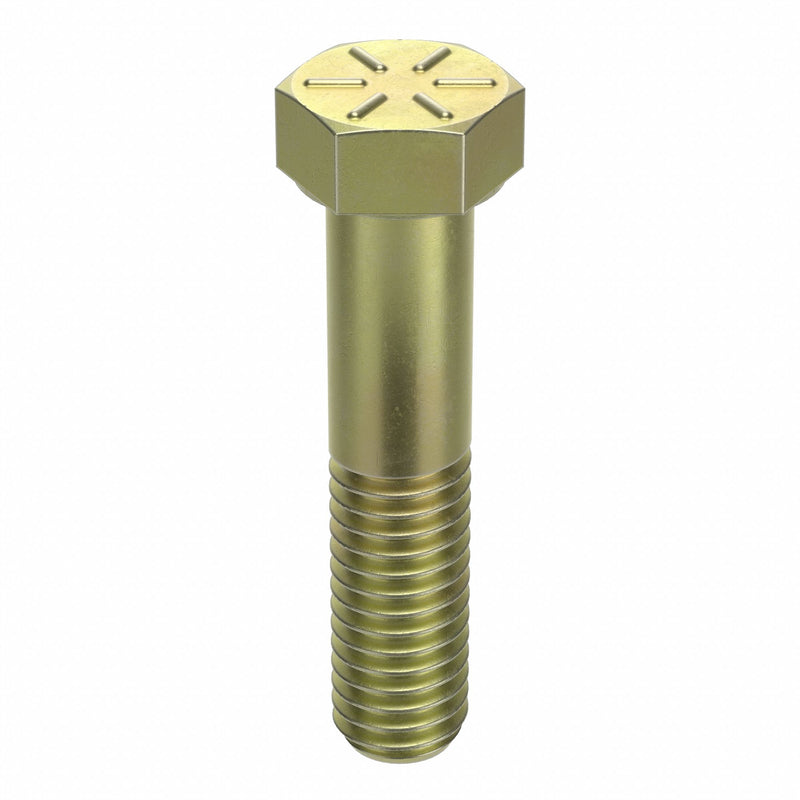

Approved Vendor N04104.037.0200 Hex Head Cap Screw, Steel, Grade 8, Zinc Yellow, 3/8"-16, Coarse, 2 in lg, Made in USA*, Inch, 25 PK
UPC: 190735965474 | Harmonization / Schedule B : 7318.15.8066
Country of Origin: United States | Shipping Weight: 1.786 lbs
The ZORO SELECT - N04104.037.0200 is a Hex Head Cap Screw, a type of fastener characterized by its hexagonal-shaped head. Made from Grade 8 steel, this screw meets the ASME B18.2.1 dimensional standards and SAE J429 material quality standards for use in various industrial applications. Drive: The external hex drive requires a wrench or socket for installation or removal. Fastener Length: With a length of 2 inches, it measures the potential depth of insertion into a material. Finish: The zinc yellow finish is intended to provide increased durability, corrosion resistance and aesthetic appeal. Globally Sourced: Procured from international manufacturers offering diverse range of quality options. Material Grade/Class: Adheres to Grade 8 standard indicating strength and hardness properties suitable for industrial applications. Tensile Strength: Rated for up to 150,000 psi tensile stress before failure as per standard tests, suggesting its potential durability and suitability for certain applications.
| Thread Size | 3/8"-16 |
|---|---|
| Fastener Length | 2 in |
| Head Width | 9/16 in |
| Min. Thread Length | 1 in |
| Head Height | 15/64 in |
| Overall Length | 2 in |
| Screw Size | 3/8 in |
| Minimum Thread Length | 1 in |
| Wire Rope Length | 2 in |
| Length | 2 in |
| System of Measurement | Inch |
| Drive | External Hex |
| Material Grade/Class | Grade 8 |
| Material | Steel |
| Finish | Zinc Yellow |
| Thread Style | Partially Threaded |
| Thread Direction | Right Hand |
| Standards | SAE J429 |
| Temp. Range | -58 Degrees to 302 Degrees F |
| Proof Load | 120,000 psi |
| Tensile Strength | 150,000 psi |
| Rockwell Hardness | HRC33 |
| Thread Type | Coarse |
| Threadlocker Minimum Temperature | 3/8"-16 |
| Maximum Temperature | 302 Degrees F |
| Thread Fit | 2A |
| Dimensional Standards | ASME B18.2.1 |
| Minimum Temperature | -58 Degrees F |
| Globally Sourced | Made in USA* |
| Manufacturer Location | Made in USA* |
| Material Quality Standards | SAE J429 |
| Fastener Industry Standards | ASME B18.2.1 |
| Type | Hex Head Cap Screw |
| Temperature - Maximum | 302 Degrees F |
| Drive Type | External Hex |
| Temperature - Minimum | -58 Degrees F |
| Head Type | Hex |
| Country of Origin | United States |
