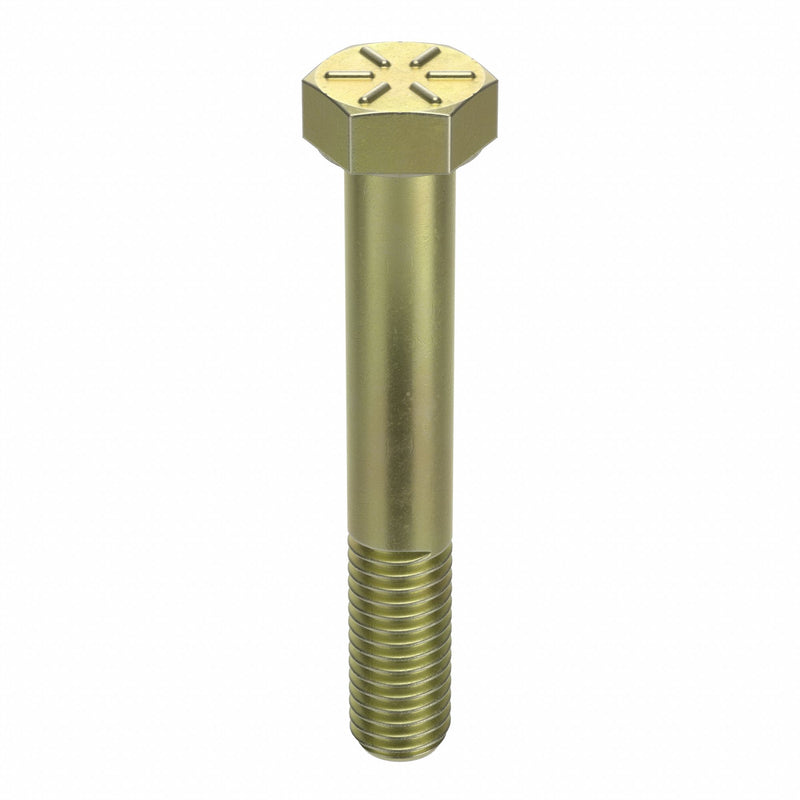

Approved Vendor N04104.050.0300 Hex Head Cap Screw, Steel, Grade 8, Zinc Yellow, 1/2"-13, Coarse, 3 in lg, Made in USA*, Inch, 10 PK
UPC: 190735965214 | Harmonization / Schedule B : 7318.15.8066
Country of Origin: United States | Shipping Weight: 1.909 lbs
The ZORO SELECT - N04104.050.0300 is a Hex Head Cap Screw, a type of fastener characterized by its hexagonal-shaped head. Made from steel and finished with zinc yellow for enhanced durability and corrosion resistance, this screw is intended for use in joining materials in a variety of industrial applications including construction, manufacturing, and engineering projects. Drive: The external hex drive requires a wrench or socket of the same shape for installation or removal. Fastener Length: With a length of 3 inches, this is an indication of the potential depth at which it could be inserted into material. Globally Sourced: Procured from international manufacturers ensuring diverse range of quality and price options. Material Grade/Class: Grade 8 standard indicating strength, hardness, and resistance properties suitable for various applications. Rockwell Hardness: HRC33 measure is indicative of its hardness or resistance to penetration that may affect durability and performance. Tensile Strength: Its maximum tensile stress capacity before failure is rated at 150000 psi suggesting its potential use in heavy-duty industrial applications Thread Direction & Size: The right-hand thread direction tightens clockwise. The thread size (1/2"-13) suggests compatibility with corresponding nuts or holes."
| Thread Size | 1/2"-13 |
|---|---|
| Fastener Length | 3 in |
| Head Width | 3/4 in |
| Head Height | 5/16 in |
| Min. Thread Length | 1 1/4 in |
| Minimum Thread Length | 1 1/4 in |
| Screw Size | 1/2 in |
| Overall Length | 3 in |
| Wire Rope Length | 3 in |
| Length | 3 in |
| MFR # | N04104.050.0300 |
| Zoro # | G0325696 |
| UPC # | 190735965214 |
| Country of Origin | United States |
| CAD Available | Yes |
| System of Measurement | Inch |
| Drive | External Hex |
| Material Grade/Class | Grade 8 |
| Material | Steel |
| Finish | Zinc Yellow |
| Thread Style | Partially Threaded |
| Thread Direction | Right Hand |
| Standards | SAE J429 |
| Rockwell Hardness | HRC33 |
| Thread Type | Coarse |
| Temp. Range | -58 Degrees to 302 Degrees F |
| Tensile Strength | 150,000 psi |
| Proof Load | 120,000 psi |
| Threadlocker Minimum Temperature | 1/2"-13 |
| Maximum Temperature | 302 Degrees F |
| Minimum Temperature | -58 Degrees F |
| Thread Fit | 2A |
| Globally Sourced | Made in USA* |
| Manufacturer Location | Made in USA* |
| Material Quality Standards | SAE J429 |
| Dimensional Standards | ASME B18.2.1 |
| Type | Hex Head Cap Screw |
| Temperature - Maximum | 302 Degrees F |
| Drive Type | External Hex |
| Temperature - Minimum | -58 Degrees F |
| Head Type | Hex |
| Country of Origin | USA (subject to change) |
