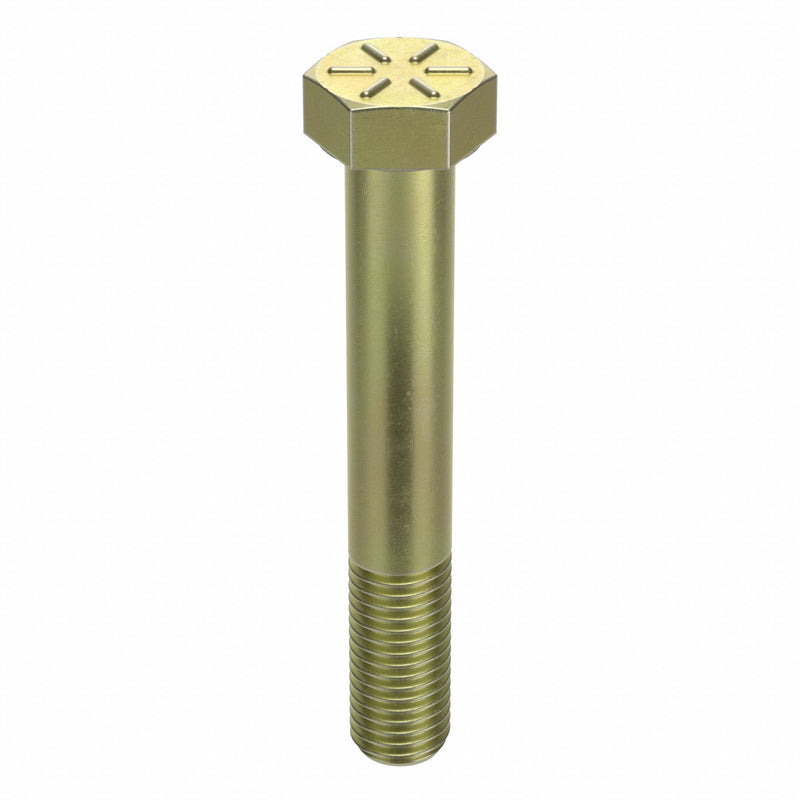

Approved Vendor N04104.062.0400 Hex Head Cap Screw, Steel, Grade 8, Zinc Yellow, 5/8"-11, Coarse, 4 in lg, Made in USA*, Inch, 5 PK
UPC: 190735964958 | Harmonization / Schedule B : 7318.15.8066
Country of Origin: United States | Shipping Weight: 2.006 lbs
The ZORO SELECT - N04104.062.0400 is a Hex Head Cap Screw, a type of fastener with a hexagonal-shaped head used in various industrial applications to securely join materials together. This screw adheres to the ASME B18.2.1 dimensional standards and requires an external hex drive for installation or removal. Fastener Length: The screw has a length of 4 inches and is designed to be inserted into materials. Finish: The product features a Zinc Yellow finish which may contribute to durability, corrosion resistance and aesthetic appeal. Globally Sourced: This product is sourced from various international manufacturers. Material: Constructed with steel material that could influence its strength, durability and potential application uses. Material Grade/Class: Adheres to the Grade 8 standard which suggests certain levels of strength, hardness and resistance properties. Suitability depends on specific application requirements. Tensile Strength:The product has a tensile strength rating of up to 150,000 psi. Durability under stress conditions varies based on usage circumstances. Thread Direction & Size:The right-hand thread direction is designed to tighten in a clockwise manner; Thread size is specified as 5/8"-11. Compatibility with nuts or holes depends on their respective sizes."
| Thread Size | 5/8"-11 |
|---|---|
| Fastener Length | 4 in |
| Head Width | 15/16 in |
| Head Height | 25/64 in |
| Min. Thread Length | 1 1/2 in |
| Overall Length | 4 in |
| Screw Size | 5/8 in |
| Minimum Thread Length | 1 1/2 in |
| Wire Rope Length | 4 in |
| Length | 4 in |
| System of Measurement | Inch |
| Drive | External Hex |
| Material Grade/Class | Grade 8 |
| Material | Steel |
| Finish | Zinc Yellow |
| Thread Style | Partially Threaded |
| Thread Direction | Right Hand |
| Standards | SAE J429 |
| Thread Type | Coarse |
| Tensile Strength | 150,000 psi |
| Temp. Range | -58 Degrees to 302 Degrees F |
| Proof Load | 120,000 psi |
| Rockwell Hardness | HRC33 |
| Maximum Temperature | 302 Degrees F |
| Dimensional Standards | ASME B18.2.1 |
| Thread Fit | 2A |
| Minimum Temperature | -58 Degrees F |
| Globally Sourced | Made in USA* |
| Threadlocker Minimum Temperature | 5/8"-11 |
| Manufacturer Location | Made in USA* |
| Material Quality Standards | SAE J429 |
| Fastener Industry Standards | ASME B18.2.1 |
| Type | Hex Head Cap Screw |
| Temperature - Minimum | -58 Degrees F |
| Temperature - Maximum | 302 Degrees F |
| Drive Type | External Hex |
| Head Type | Hex |
| Country of Origin | United States |
