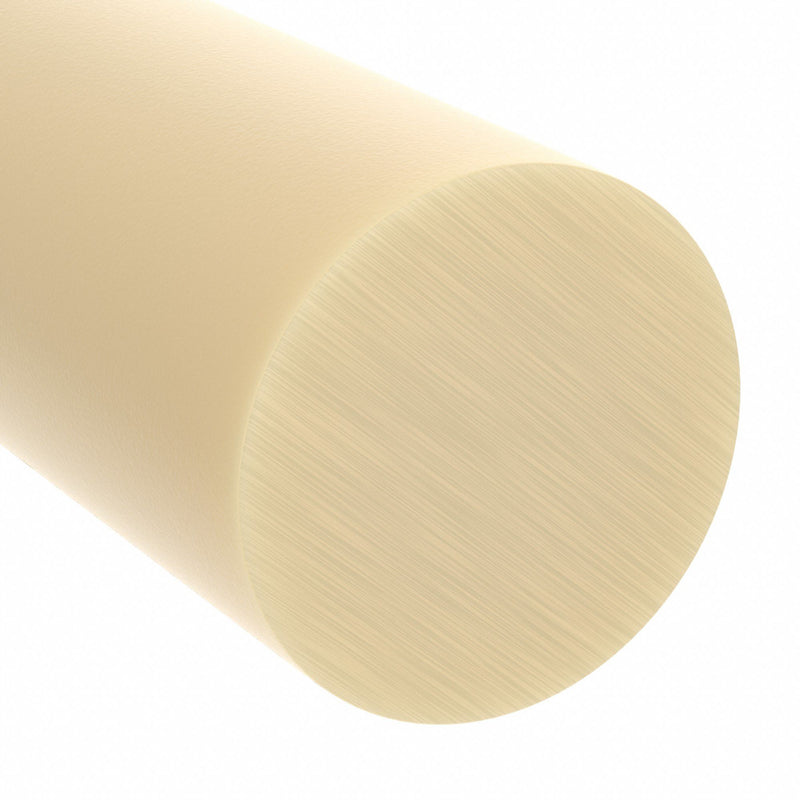

Approved Vendor PR-PTFE-GF-22 PTFE Rod, Glass-Filled, 1 in Dia, 12 in Lg, Off-White
Original price
$98.27
-
Original price
$98.27
Original price
$98.27
$98.27
-
$98.27
Current price
$98.27
PTFE Rod, PTFE, Grade Glass-Filled, Plastic Length 12 in, Plastic Diameter 1 in, Off-White, Plastic Clarity Opaque, Minimum Temperature -350 Degrees F, Maximum Temperature 500 Degrees F, Tensile Strength 1,000 psi, Impact Strength Not Rated, Friction Coefficient 0.12, Water Absorption 0.01 Percent, Plastic Density 0.08 lb/cu in, Plastic Hardness 55D
| Material | PTFE |
|---|---|
| Color | Off-White |
| Tensile Strength (PSI) | 1,000 psi |
| Type | Glass-Filled |
| Max. Temp. (F) | 500 Degrees F |
| Min. Temp. (F) | -350 Degrees F |
| Standards | UL 94 V-0 |
| Impact Strength (Lbs.) | Not Rated |
| Friction Coefficient | 0.12 |
| Grade | Glass-Filled |
| Water Absorption | 0.01 % |
| Tensile Strength | 1,000 psi |
| Plastic Hardness | 55D |
| Temperature Range | -350 Degrees to 500 Degrees F |
| Shape | Rod |
| Impact Strength Rating | Good |
| Water Absorption Rating | Excellent |
| Plastic Density | 0.08 lb/cu in |
| Impact Strength | Not Rated |
| Machinability | 100 % |
| Wear Factor | Excellent |
| Friction Rating | Very Slippery |
| Minimum Temperature | -350 Degrees F |
| UV Resistant | Yes |
| Maximum Temperature | 500 Degrees F |
| Tensile Strength Rating | Poor |
| Corrosion and Chemical Resistance | Excellent |
| Plastic Clarity | Opaque |
| Plastic Hardness Rating | Medium Soft |
| Weight | 0.516 lb |
| Metal Detectable | Not Metal Detectable |
| Flexural Modulus | 620 MPa |
| Wear Rate | Not Rated |
| Coefficient of Thermal Expansion | 8 x 10^-5 K^-1 |
| Filler Material | Glass |
| Shore Hardness | 55 Shore D |
| Dielectric Strength | Not Rated |
| Static-Resistant | Not Static-Resistant |
| Scratch-Resistant | Not Scratch-Resistant |
| FDA Compliance | Not FDA Compliant |
| Rockwell Hardness | 60 HRR |
| UV-Resistant | UV-Resistant |
| Country of Origin | United States |
