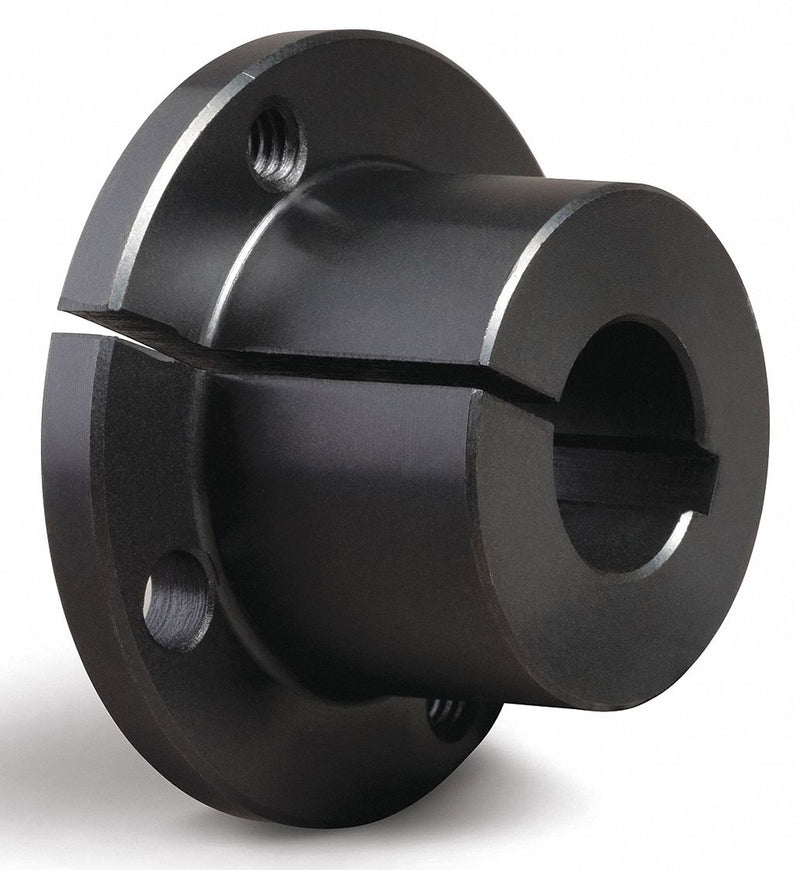

Approved Vendor QT1 Quick Detachable Bushing, QT, 1 in Bore Dia, 1.25 in Overall Lg, 1/4 in Flange Thick
UPC: | Harmonization / Schedule B : 8483.50.9080
Country of Origin: | Shipping Weight: 0.65 lbs
Original price
$27.60
-
Original price
$27.60
Original price
$27.60
$27.60
-
$27.60
Current price
$27.60
Quick detachable bushings are used in high-power applications to strengthen the mounting of the pulley or sprocket onto the drive shaft and must be paired with a bushed-bore pulley or sprocket of the same bore bushing series.
| Catalog Group | M8803 |
|---|---|
| Bushing Type | Quick Detachable |
| Bore Bushing Series | QT |
| Bore System of Measurement | Inch |
| For Shaft Type | Keyed |
| Bore Diameter | 1 in |
| Keyway Width | 1/4 in |
| Keyway Depth | 1/16 in |
| Overall Diameter | 2.5 in |
| Bolt Circle Diameter | 2 in |
| Large Barrel Diameter | 1.625 in |
| Overall Length | 1.25 in |
| Flange Type | Split |
| Flange Thickness | 1/4 in |
| Length Less Flange | 1 in |
| Maximum Torque | 1,750 in-lb |
| Taper | 3/4 in Per ft |
| Bolt Size | 1/4"-20 x 1 in |
| SAE Grade | 5 |
| Material | Steel |
| Includes | (2) Cap Screws |
| Country of Origin | Varies |
