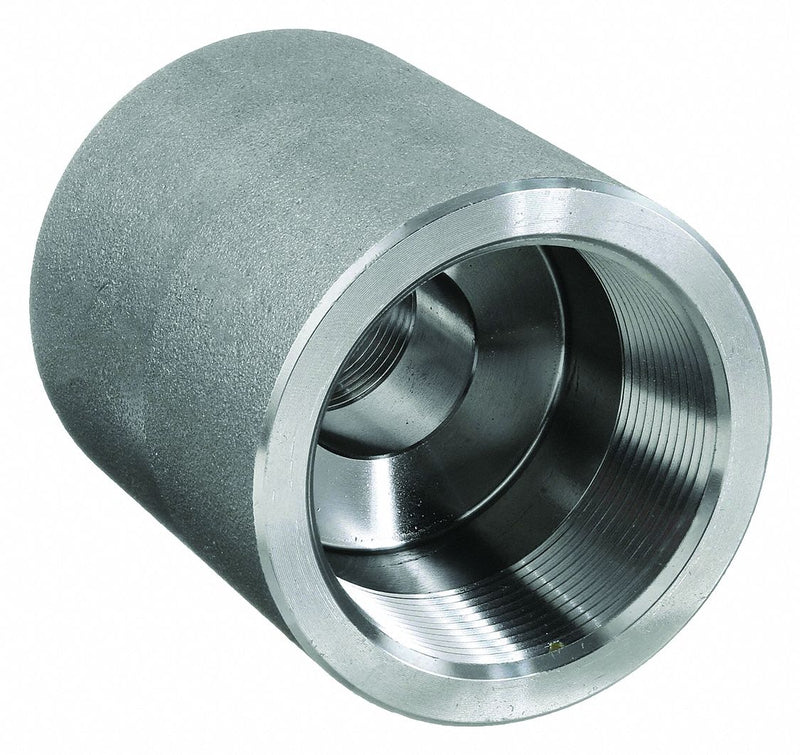

Approved Vendor RW1MNG5 Metal Pipe Straight, 1/4 in x 1/8 in, Female NPT Threaded x Female NPT Threaded
UPC: 190735915967 | Harmonization / Schedule B : 7307.92.3010
Country of Origin: | Shipping Weight: 0.11 lbs
Original price
$7.69
-
Original price
$7.69
Original price
$7.69
$7.69
-
$7.69
Current price
$7.69
Reducing Coupling, Forged Steel, Black Oxide, Class Class 3000, 1/4 in, Female, NPT, 18, 1/8 in, Female, NPT, 27
| Pipe Size (Fittings) | 1/4" x 1/8" |
|---|---|
| Pipe Size - Pipe Fitting | 1/4 in x 1/8 in |
| Fitting Side B Nominal Pipe Size | 1/8 in |
| Pipe Size | 1/4" x 1/8" |
| Fitting Side A Nominal Pipe Size | 1/4 in |
| Fitting Side A Outside Diameter | 3/4 in |
| Overall Length | 1 3/8 in |
| Fitting Thread Size A | 1/4"-18 |
| Fitting Thread Size B | 1/8"-27 |
| Wire Rope Length | 1 3/8 in |
| Length | 1 3/8 in |
| Specific Fitting Shape | Reducer |
| Fitting Connection Type | FNPT |
| Pipe Fitting Material | Black Forged Steel |
| Class | Class 3000 |
| Standards | ANSI B1.20.1, ASME B16.11 and SA105, ASTM A105 |
| Basic Pipe Fitting Shape | Reducer |
| Max. Pressure | 3000 psi@72 Degrees F |
| Specific Pipe Fitting Shape | Reducer |
| Basic Pipe Fitting Material | Metal |
| Fitting Schedule/Class | Class 3000 |
| Includes Seal | No |
| Finish/Coating | Ball Blasting |
| Color | Black |
| Includes Pre-Applied Thread Sealant | No |
| Fitting Side B Type | Threaded |
| Fitting Side A Gender | Female |
| Fitting Side B Pipe Threading | 27 |
| Fitting Side B Gender | Female |
| Fitting Side A Type | Threaded |
| Fitting Side A Pipe Threading | 18 |
| Side B Thread Type | NPT |
| Side A Thread Type | NPT |
| Application | Air, Non-Potable Water, Oils |
| For Pipe Schedule | Schedule 160 |
| Material Grade | A105 |
| Country of Origin | Multiple |
