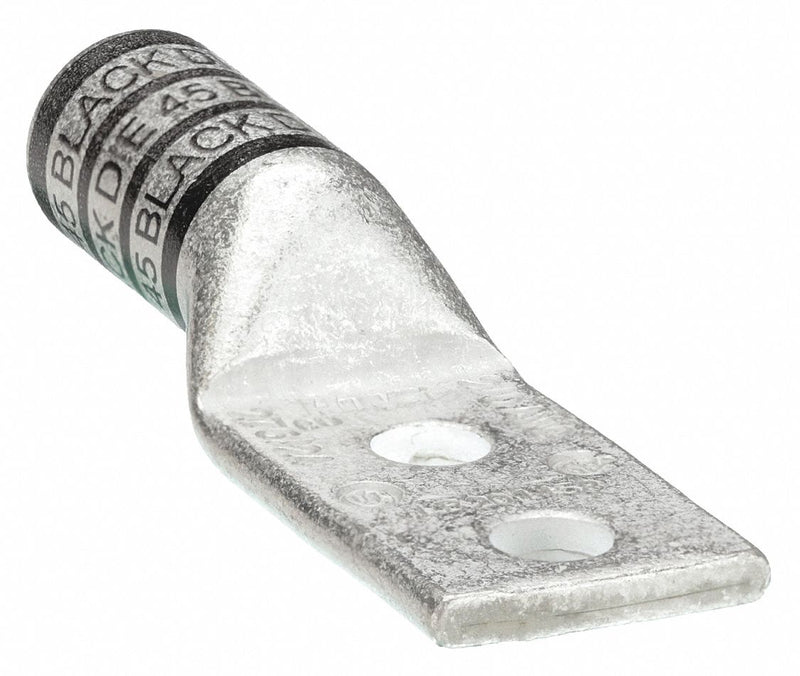

Approved Vendor RW24C394 Compression Lug, For 2/0 AWG, Stranded Wire, 3/8 in Stud Size, Long, Copper Barrel
UPC: 190735432402 | Harmonization / Schedule B : 8535.90.8020
Country of Origin: China | Shipping Weight: 0.097 lbs
Original price
$10.65
-
Original price
$10.65
Original price
$10.65
$10.65
-
$10.65
Current price
$10.65
Two-Hole Lug Compression Connector, Barrel Size Long, Color Code Black, Die Code 45, Tongue Angle Straight, Tongue Width 0.83 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 2/0 AWG, For Stranded Copper Wire Size - Maximum 2/0 AWG, Inspection Hole No, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed
| For Wire Size | 2/0 AWG |
|---|---|
| For Stud Size | 3/8 in |
| Barrel Size | Long |
| Tongue Width | 0.83 in |
| Cable Size | 2/0 |
| Barrel Length | Long |
| Width | 0.83" |
| Length | 3.16" |
| Length (Straight Wireway) | 3.16 in |
| Tongue Thickness | 0.13 in |
| Strip Length | 1 1/8 in |
| Overall Length | 3.16 in |
| Tongue Length | 1.81 in |
| For Stranded Copper Wire Size - Minimum | 2/0 AWG |
| Hole Size | 0.405 in |
| Overall Width | 0.83 in |
| Barrel Outside Diameter | 0.57 in |
| Barrel Inside Diameter | 0.44 in |
| For Stranded Copper Wire Size - Maximum | 2/0 AWG |
| Wire Rope Length | 3.16 in |
| For Conductor Material | Copper |
| Material | Copper |
| Tongue Angle | Straight |
| Inspection Hole | No |
| Die Code | 45 |
| Color Code | Black |
| Standards | CSA Certified, UL Listed |
| Hole Center to Center | 1 in |
| Connector Type | Straight Barrel |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Hole Center to End | 0.38 in |
| Tongue Style | Standard |
| Peep Hole | No |
| RoHS Compliant | Yes |
| Special Features | Corrosion Resistant, High-Conductivity Construction |
| Barrel Style | Chamfered |
| Termination Style | Crimp |
| Contact Finish | Tin |
| Seam Style | Seamless |
| Maximum Voltage | 35 kV |
| For Wire Type | Stranded |
| Current | 265 A |
| Maximum Operating Temperature | 300 Degrees F |
| Number of Holes | 2 |
| Country of Origin | China |
