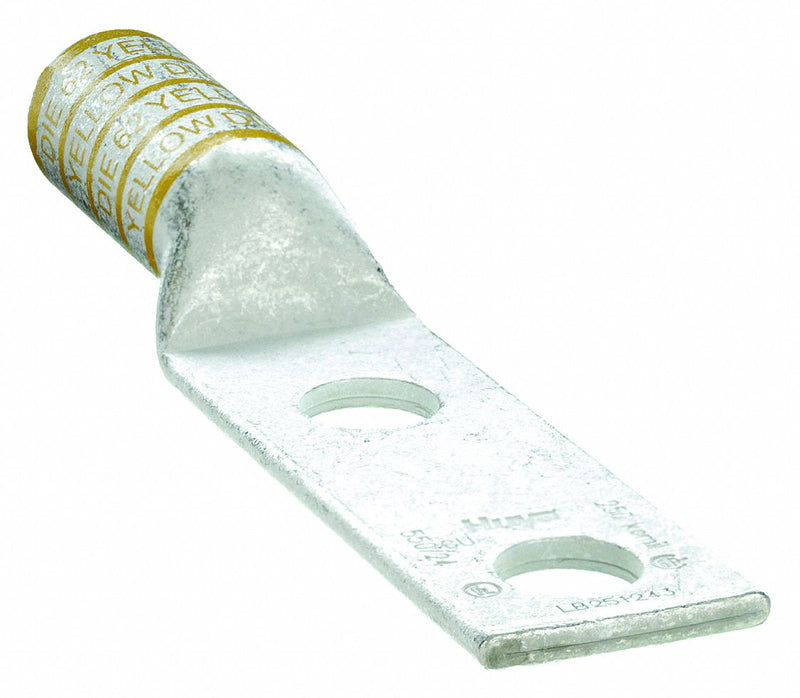

Approved Vendor RW24C397 Compression Lug, For 250 kcmil, Stranded Wire, 3/8 in Stud Size, Long, Copper Barrel
UPC: 190735432433 | Harmonization / Schedule B : 8535.90.8020
Country of Origin: China | Shipping Weight: 0.2 lbs
Original price
$17.09
-
Original price
$17.09
Original price
$17.09
$17.09
-
$17.09
Current price
$17.09
Two-Hole Lug Compression Connector, Barrel Size Long, Color Code Yellow, Die Code 62, Tongue Angle Straight, Tongue Width 1.13 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 250 kcmil, For Stranded Copper Wire Size - Maximum 250 kcmil, Inspection Hole No, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless
| For Wire Size | 250 kcmil |
|---|---|
| For Stud Size | 3/8 in |
| Barrel Size | Long |
| Tongue Width | 1.13 in |
| Width | 1.13" |
| Length | 3.88" |
| Barrel Length | Long |
| Cable Size | 250 kcmil |
| Length (Straight Wireway) | 3.88 in |
| Barrel Outside Diameter | 0.77 in |
| Tongue Length | 1.93 in |
| For Stranded Copper Wire Size - Maximum | 250 kcmil |
| Barrel Inside Diameter | 0.63 in |
| Strip Length | 1 11/16 in |
| For Stranded Copper Wire Size - Minimum | 250 kcmil |
| Overall Length | 3.88 in |
| Tongue Thickness | 0.14 in |
| Overall Width | 1.13 in |
| Hole Size | 0.405 in |
| Wire Rope Length | 3.88 in |
| For Conductor Material | Copper |
| Material | Copper |
| Tongue Angle | Straight |
| Inspection Hole | No |
| Die Code | 62 |
| Color Code | Yellow |
| Standards | CSA Certified, UL Listed |
| Peep Hole | No |
| Hole Center to Center | 1 in |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Connector Type | Straight Barrel |
| Tongue Style | Standard |
| Hole Center to End | 0.38 in |
| Current | 405 A |
| Maximum Voltage | 35 kV |
| RoHS Compliant | Yes |
| Seam Style | Seamless |
| Barrel Style | Chamfered |
| Contact Finish | Tin |
| Special Features | Corrosion Resistant, High-Conductivity Construction |
| For Wire Type | Stranded |
| Termination Style | Crimp |
| Maximum Operating Temperature | 300 Degrees F |
| Number of Holes | 2 |
| Country of Origin | China |
