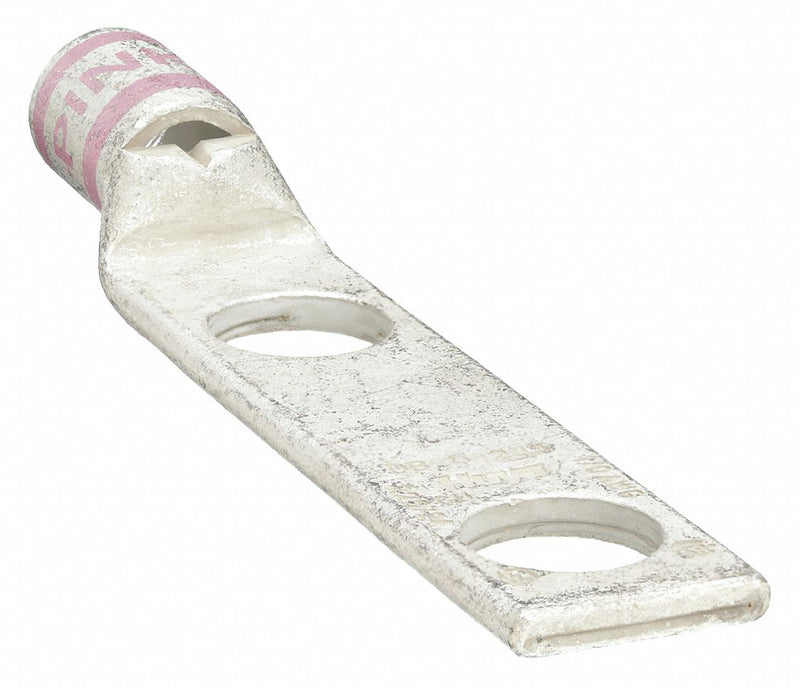

Approved Vendor RW24C437 Compression Lug, For 1/0 AWG, Stranded Wire, 3/8 in Stud Size, Std, Copper Barrel
UPC: 190735432822 | Harmonization / Schedule B : 8535.90.8020
Country of Origin: China | Shipping Weight: 0.078 lbs
Original price
$8.57
-
Original price
$8.57
Original price
$8.57
$8.57
-
$8.57
Current price
$8.57
Two-Hole Lug Compression Connector, Barrel Size Short, Color Code Pink, Die Code 42, Tongue Angle Straight, Tongue Width 0.75 in, For Conductor Material Copper, For Stud Size 3/8 in, For Stranded Copper Wire Size - Minimum 1/0 AWG, For Stranded Copper Wire Size - Maximum 1/0 AWG, Inspection Hole Yes, Hole Center to Center 1 in, Material Copper, Maximum Operating Temperature 300 Degrees F, Maximum Voltage 600 V AC, Termination Style Crimp, Seam Style Seamless, Standards CSA Certified, UL Listed
| For Wire Size | 1/0 AWG |
|---|---|
| For Stud Size | 3/8 in |
| Barrel Size | Short |
| Tongue Width | 0.75 in |
| Barrel Length | Short |
| Width | 3/4" |
| Length | 2.88" |
| Cable Size | 1/0 |
| Length (Straight Wireway) | 2.88 in |
| Barrel Outside Diameter | 0.52 in |
| For Stranded Copper Wire Size - Minimum | 1/0 AWG |
| Tongue Length | 1.93 in |
| Overall Length | 2.88 in |
| Overall Width | 0.75 in |
| Barrel Inside Diameter | 0.39 in |
| For Stranded Copper Wire Size - Maximum | 1/0 AWG |
| Tongue Thickness | 0.13 in |
| Hole Size | 0.405 in |
| Strip Length | 13/16 in |
| Wire Rope Length | 2.88 in |
| For Conductor Material | Copper |
| Material | Copper |
| Tongue Angle | Straight |
| Inspection Hole | Yes |
| Die Code | 42 |
| Color Code | Pink |
| Standards | CSA Certified, UL Listed |
| Lug Compression Connector Type | Two-Hole Lug Compression Connector |
| Hole Center to End | 0.38 in |
| Tongue Style | Standard |
| Connector Type | Straight Barrel |
| Peep Hole | Yes |
| Hole Center to Center | 1 in |
| Termination Style | Crimp |
| Barrel Style | Chamfered |
| Maximum Voltage | 35 kV |
| Maximum Operating Temperature | 300 Degrees F |
| For Wire Type | Stranded |
| Contact Finish | Tin |
| Current | 230 A |
| Seam Style | Seamless |
| Special Features | Corrosion Resistant, High-Conductivity Construction |
| RoHS Compliant | Yes |
| Number of Holes | 2 |
| Country of Origin | China |
