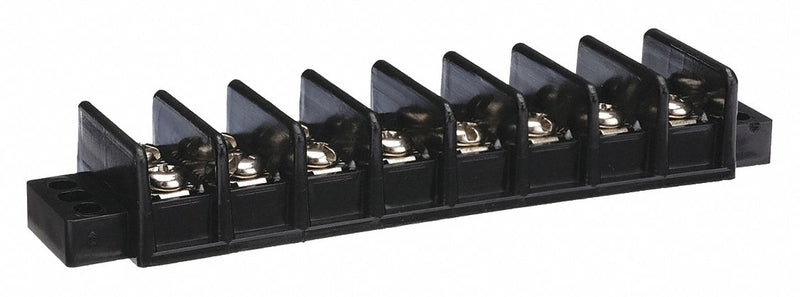

Approved Vendor RW6YH66 Barrier Terminal Strip, 8 Poles, 22 AWG – 10 AWG For Wire Sizes, 30 A Max Current
UPC: 190735546932 | Harmonization / Schedule B : 8536.90.4000
Country of Origin: China | Shipping Weight: 0.2 lbs
Original price
$18.18
-
Original price
$18.18
Original price
$18.18
$18.18
-
$18.18
Current price
$18.18
Barrier Terminal Strip, Center Spacing 9/16 in, Current 30 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 10 AWG, Maximum Voltage 600 V, Number of Poles 8, Number of Rows 2, Overall Height 0.83 in, Overall Length 5.48 in, Overall Width 1.34 in, Compatible with Product Type Power Distribution Blocks, Cover Included No, Housing Color Black, Housing Material Thermal Plastic
| For Minimum Wire Size | 22 AWG |
|---|---|
| For Maximum Wire Size | 10 AWG |
| Overall Length | 5.48 in |
| Overall Width | 1.34 in |
| Overall Height | 0.83 in |
| Termination Screw Size | #8-32 |
| Wire Rope Length | 5.48 in |
| Length | 5.48 in |
| MFR # | 6YH66 |
| Zoro # | G0325245 |
| UPC # | 190735546932 |
| Country of Origin | China |
| Number of Poles | 8 |
| Number of Rows | 2 |
| Termination Style | Screw |
| Current | 30 A |
| Maximum Voltage | 600 V AC |
| Center Spacing | 9/16 in |
| Voltage | 600V AC |
| Material | Thermal Plastic |
| Color | Black |
| Standards | cRUus |
| UL 94 Flammability Rating | V-0 |
| Mounting Style | Bolt Down |
| Torque | 12 in-lb |
| Minimum Operating Temperature | -76 Degrees F |
| Terminal Material | Copper |
| Termination Screw Finish | Nickel Plated |
| RoHS Compliant | Yes |
| Housing Material | Thermal Plastic |
| Screw Type | Phil-Slot |
| Compatible with Product Type | Power Distribution Blocks |
| Termination Screw Material | Steel |
| Cover Included | No |
| Maximum Operating Temperature | 266 Degrees F |
| Housing Color | Black |
| Country of Origin | China (subject to change) |
