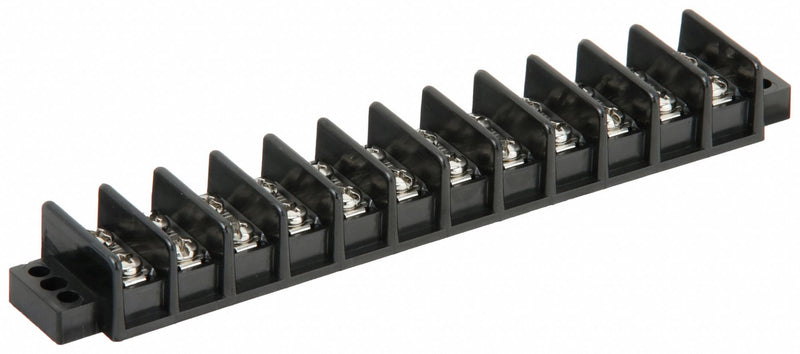

Approved Vendor RW6YH68 Barrier Terminal Strip, 12 Poles, 22 AWG – 10 AWG For Wire Sizes, 30 A Max Current
UPC: 190735546949 | Harmonization / Schedule B : 8536.90.4000
Country of Origin: China | Shipping Weight: 0.35 lbs
Original price
$24.61
-
Original price
$24.61
Original price
$24.61
$24.61
-
$24.61
Current price
$24.61
Barrier Terminal Strip, Center Spacing 9/16 in, Current 30 A, For Minimum Wire Size 22 AWG, For Maximum Wire Size 10 AWG, Maximum Voltage 600 V, Number of Poles 12, Number of Rows 2, Overall Height 0.83 in, Overall Length 7.71 in, Overall Width 1.34 in, Compatible with Product Type Power Distribution Blocks, Cover Included No, Housing Color Black, Housing Material Thermal Plastic
| For Minimum Wire Size | 22 AWG |
|---|---|
| For Maximum Wire Size | 10 AWG |
| Overall Length | 7.71 in |
| Overall Width | 1.34 in |
| Overall Height | 0.83 in |
| Termination Screw Size | #8-32 |
| Wire Rope Length | 7.71 in |
| Length | 7.71 in |
| MFR # | 6YH68 |
| Zoro # | G1976922 |
| UPC # | 190735546949 |
| Country of Origin | China |
| Number of Poles | 12 |
| Number of Rows | 2 |
| Termination Style | Screw |
| Current | 30 A |
| Maximum Voltage | 600 V AC |
| Center Spacing | 9/16 in |
| Voltage | 600 |
| Color | Black |
| Material | Thermal Plastic |
| Standards | cRUus |
| Termination Screw Material | Steel |
| Housing Material | Thermal Plastic |
| Screw Type | Phil-Slot |
| Mounting Style | Bolt Down |
| Termination Screw Finish | Nickel Plated |
| Minimum Operating Temperature | -76 Degrees F |
| UL 94 Flammability Rating | V-0 |
| Terminal Material | Copper |
| Maximum Operating Temperature | 266 Degrees F |
| Torque | 12 in-lb |
| RoHS Compliant | Yes |
| Cover Included | No |
| Compatible with Product Type | Power Distribution Blocks |
| Housing Color | Black |
| Country of Origin | China (subject to change) |
