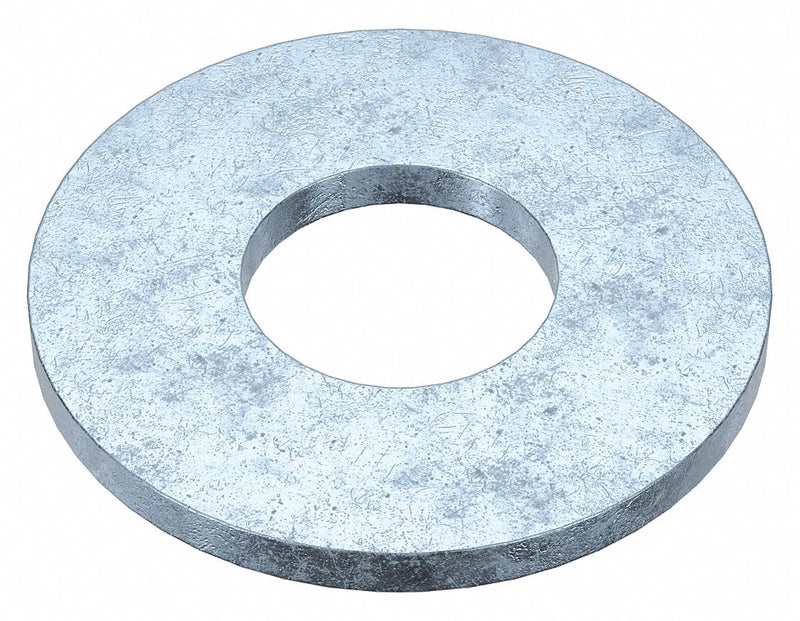

Approved Vendor U38130.056.0001 Washer, Case Hardened, Zinc Plated, Steel, 9/16 in Screw Sz, 0.625 in In Dia, 25 PK
UPC: | Harmonization / Schedule B : 7318.22.0000
Country of Origin: | Shipping Weight: 1.075 lbs
Original price
$7.51
-
Original price
$7.51
Original price
$7.51
$7.51
-
$7.51
Current price
$7.51
USS Washer, Flat Washer Type Oversized, Dimensional Standards ASME B18.21.1, Material Steel, Material Grade/Class Case Hardened, Finish Zinc-Plated, For Screw Size 9/16 in, Inside Diameter 0.625 in, Outside Diameter 1 15/32 in, Maximum Thickness 0.132 in, System of Measurement Inch, Minimum Thickness 0.086 in, Color Silver, Inside Diameter Tolerance 0.62-0.64, Made in North America Not Made in North America, Manufacturer Location Globally Sourced, Material Quality Standards Not Rated
| For Screw Size | 9/16" |
|---|---|
| Outside Diameter | 1 15/32 in |
| Minimum Thickness | 0.109 in |
| Maximum Thickness | 0.109 in |
| Inside Diameter | 0.625 in |
| Outside Diameter Tolerance | 1.462-1.499 |
| Inside Diameter Tolerance | 0.62-0.64 |
| CAD Available | Yes |
| Material | Steel |
| Finish | Zinc Plated |
| Standards | ASME B18.21.1 |
| System of Measurement | Inch |
| Type | USS Flat Washer |
| Thickness Tolerance | 0.086-0.132 in |
| Color | Silver |
| Rockwell Hardness | 140HV |
| Manufacturer Location | Globally Sourced |
| Minimum Temperature | -58 Degrees C |
| Material Quality Standards | Not Rated |
| Dimensional Standards | ASME B18.21.1 |
| RoHS Compliant | RoHS Compliant |
| Removable | Removable |
| Maximum Temperature | 350 Degrees C |
| Material Grade/Class | Case Hardened |
| REACH Compliant | REACH Compliant |
| Made in North America | Not Made in North America |
| Pack Size | Small Pack |
| Hardness | 140 HV |
| Washer Type | Large Outside Diameter |
| Country of Origin | Multiple |
