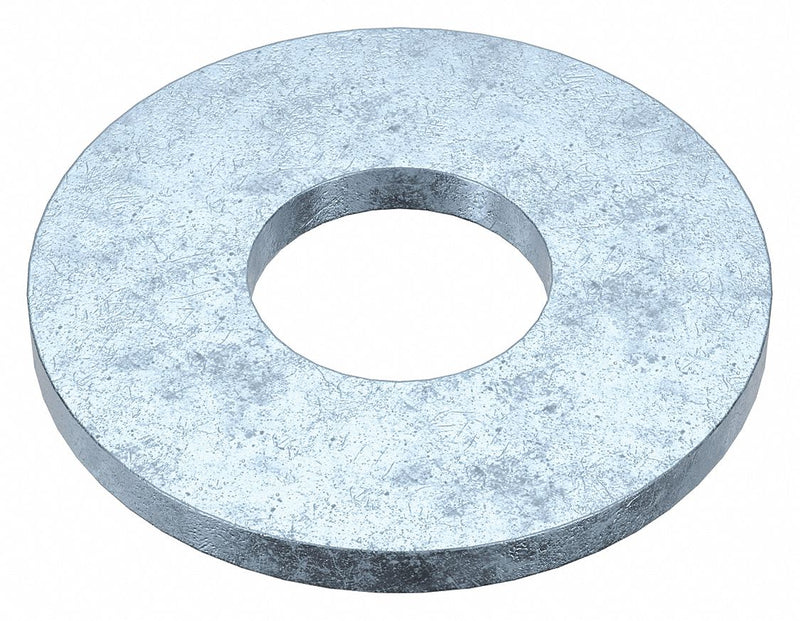

Approved Vendor U38210.037.0150 Large O.D. Oversized Washer, Case Hardened, Zinc Plated, Steel, 3/8 in Screw Sz, 100 PK
UPC: 096653071726 | Harmonization / Schedule B : 7318.22.0000
Country of Origin: | Shipping Weight: 2.161 lbs
Original price
$20.63
-
Original price
$20.63
Original price
$20.63
$20.63
-
$20.63
Current price
$20.63
Large O.D. Oversized Washer, Flat Washer Type Oversized, Dimensional Standards ASME B18.21.1, Material Steel, Material Grade/Class Case Hardened, Finish Zinc-Plated, For Screw Size 3/8 in, Inside Diameter 0.41 in, Outside Diameter 1 17/32 in, Maximum Thickness 5/64 in, System of Measurement Inch, Minimum Thickness 3/64 in, Color Silver, Inside Diameter Tolerance 0,400-0,420, Made in North America Not Made in North America, Manufacturer Location Globally Sourced
| For Screw Size | 3/8" |
|---|---|
| Outside Diameter | 1-1/2 in |
| Minimum Thickness | 0.065 in |
| Maximum Thickness | 0.065 in |
| Inside Diameter | 0.406 in |
| Outside Diameter Tolerance | 1492-1529 |
| Inside Diameter Tolerance | 0,400-0,420 |
| CAD Available | Yes |
| Material | Steel |
| Finish | Zinc Plated |
| Washer Standards | ASME B18.21.1 |
| System of Measurement | Inch |
| Flat Washer Type | Fender Washer |
| Application | Electrical Work, Plumbing, Sheet Metal |
| Thickness Tolerance | 0.047 in to 0.080 in |
| For Use With | Screws and Studs |
| Rockwell Hardness | 140HV |
| Type | Oversized Flat Washer |
| Color | Silver |
| Material Grade/Class | Case Hardened |
| Manufacturer Location | Globally Sourced |
| Made in North America | Not Made in North America |
| Material Quality Standards | Not Rated |
| Minimum Temperature | -58 Degrees C |
| Maximum Temperature | 350 Degrees C |
| Pack Size | Small Pack |
| Dimensional Standards | ASME B18.21.1 |
| RoHS Compliant | RoHS Compliant |
| REACH Compliant | REACH Compliant |
| Removable | Removable |
| Washer Type | Large Outside Diameter |
| Hardness | 140 HV |
| Country of Origin | Multiple |
