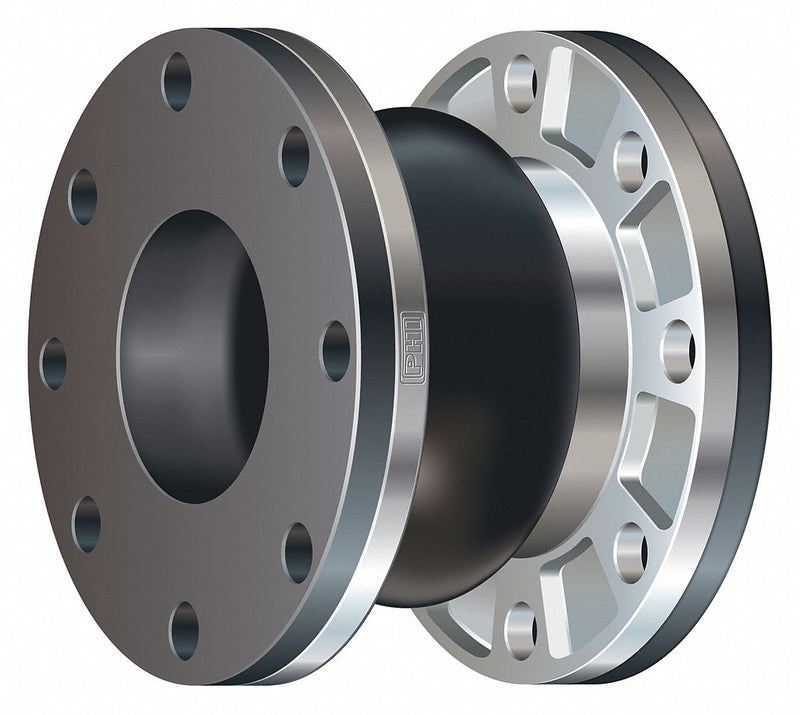

Approved Vendor WA-48-EE Expansion Joint, 3 in Pipe Size, 7 1/2 in Flange Dia, 6 in Overall Lg, Steel with EPDM Bulb
Original price
$488.29
-
Original price
$488.29
Original price
$488.29
$488.29
-
$488.29
Current price
$488.29
Expansion Joint, Bolt Circle Diameter 6 in, Bolt Hole Size 3/4 in, Bolt Hole Threading Unthreaded, Burst Pressure 600 psi, Compression Distance 1 3/4 in, Connection Type Flanged, Expansion Distance 3/4 in, Expansion Joint Type Single Bulb, Features Metal Collar Cast into Retaining Ring Molded Integral Flange, Flange Diameter 7 1/2 in, Flange Material Steel, Joint Material EPDM
| Type | Wide Arch |
|---|---|
| Material | EPDM |
| Bolt Holes | 4 |
| Connection | Flanged |
| Max. Pressure | 150 psi |
| Standards | ANSI |
| Vacuum | 15 In Hg At 72 Degrees F |
| Pipe Fitting Material | EPDM |
| Reinforcement Material | Metal |
| Minimum Operating Temperature | -50 Degrees F |
| Seal Material | EPDM |
| Bolt Hole Threading | Unthreaded |
| Maximum Operating Temperature | 240 Degrees F |
| Resistance Properties | Abrasion Resistant, Heat Resistant, Oil Resistant |
| Offset Distance | 3/4 in |
| Expansion Joint Type | Single Bulb |
| Expansion Distance | 3/4 in |
| Maximum Vacuum Pressure | 15 in Hg |
| Connection Type | Flanged |
| Flange Material | Steel |
| Maximum Operating Pressure | 150 psi |
| Compression Distance | 1 3/4 in |
| For Flange Type | ANSI Class 125, ANSI Class 150 |
| Joint Material | EPDM |
| Features | Metal Collar Cast into Retaining Ring, Molded Integral Flange |
| Burst Pressure | 600 psi |
| Number of Bolt Holes | 4 |
| Maximum Off-Center Angle | 30 Degrees |
| Temp. Range | -50 to 240 Degrees F |
| Country of Origin | China |
