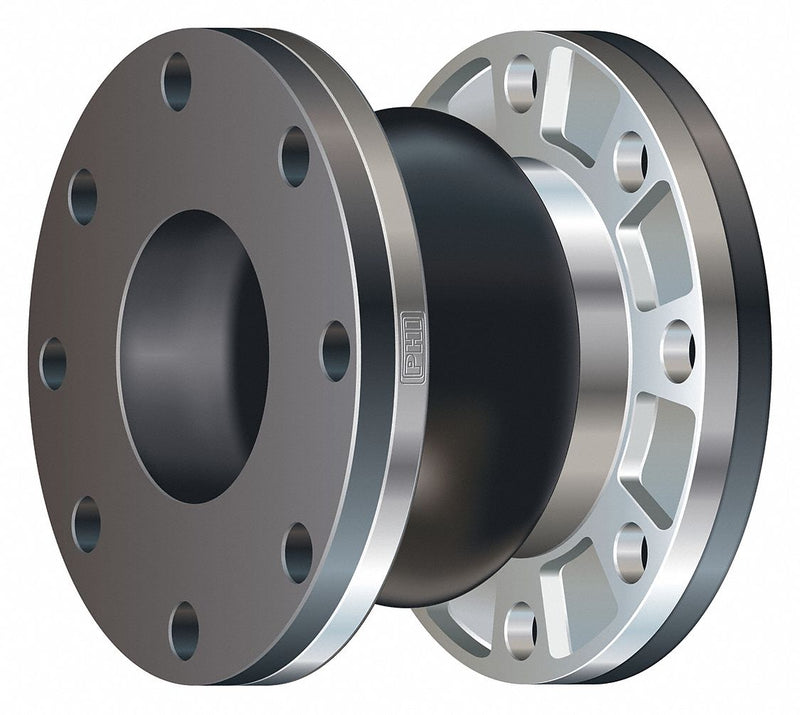

Approved Vendor WA-96-EE Expansion Joint, 6 in Pipe Size, 11 in Flange Dia, 6 in Overall Lg, Steel with EPDM Bulb
Original price
$884.16
-
Original price
$884.16
Original price
$884.16
$884.16
-
$884.16
Current price
$884.16
Expansion Joint, Bolt Circle Diameter 9 1/2 in, Bolt Hole Size 7/8 in, Bolt Hole Threading Unthreaded, Burst Pressure 600 psi, Compression Distance 1 3/4 in, Connection Type Flanged, Expansion Distance 3/4 in, Expansion Joint Type Single Bulb, Features Metal Collar Cast into Retaining Ring, Molded Integral Flange, Flange Diameter 11 in, Flange Material Steel, Joint Material EPDM
| Pipe Size | 6 in |
|---|---|
| Pipe Size (Fittings) | 6" |
| Bolt Circle Dia. | 9.5" |
| Overall Length | 6" |
| Outside Dia. | 11" |
| Flange Thickness | 1" |
| Bolt Hole Size | 7/8" |
| Pipe Size - Pipe Fitting | 6" |
| Flange Diameter | 11 in |
| Outside Diameter | 11 in |
| Bolt Circle Diameter | 9 1/2 in |
| Wire Rope Length | 6 in |
| Length | 6 in |
| Fits Chest Size | Metal Collar Cast into Retaining Ring, Molded Integral Flange |
| Type | Wide Arch |
| Material | EPDM |
| Max. Pressure | 150 psi |
| Temp. Range | -50 to 240 Degrees F |
| Bolt Holes | 8 |
| Standards | ANSI |
| Connection | Flanged |
| Vacuum | 15 In Hg At 72 Degrees F |
| Pipe Fitting Material | EPDM |
| Number of Bolt Holes | 8 |
| Maximum Off-Center Angle | 20 Degrees |
| Bolt Hole Threading | Unthreaded |
| Features | Metal Collar Cast into Retaining Ring, Molded Integral Flange |
| Resistance Properties | Abrasion Resistant, Heat Resistant, Oil Resistant |
| Maximum Operating Pressure | 150 psi |
| Reinforcement Material | Metal |
| Burst Pressure | 600 psi |
| For Flange Type | ANSI Class 125, ANSI Class 150 |
| Offset Distance | 1 in |
| Connection Type | Flanged |
| Expansion Joint Type | Single Bulb |
| Minimum Operating Temperature | -50 Degrees F |
| Maximum Operating Temperature | 240 Degrees F |
| Maximum Vacuum Pressure | 15 in Hg |
| Joint Material | EPDM |
| Expansion Distance | 3/4 in |
| Compression Distance | 1 3/4 in |
| Seal Material | EPDM |
| Flange Material | Steel |
| Fitting Side B Type | Flange |
| Socket Material | Carbon Steel |
| Country of Origin | China (subject to change) |
