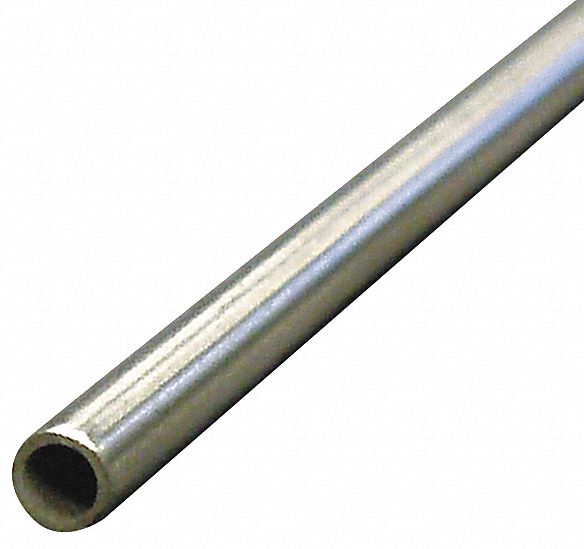

Approved Vendor ZUSA-HTM-97 Tubing, Seamless, 316 Stainless Steel, 3/8 in Outside Dia, 0.245 in Inside Dia, 6 ft Overall Lg
Original price
$185.15
-
Original price
$185.15
Original price
$185.15
$185.15
-
$185.15
Current price
$185.15
Tubing, Cleaned and Capped No, Fabrication Seamless, Inside Diameter 0.245 in, Material 316 Stainless Steel, Material Grade 316, Maximum Operating Pressure 5,452 psi @ 72 Degrees F, Maximum Operating Temperature 1,500 Degrees F, Outside Diameter 3/8 in, Overall Length 6 ft, Resistance Properties Corrosion Resistant, Pitting Resistant, Standards ASTM A213, ASTM A269, Temper Annealed, Tube Form Straight, Wall Thickness 0.065 in
| Outside Diameter | 3/8 in |
|---|---|
| Wall Thickness | 0.065 in |
| Tube Length | 6 ft |
| Inside Diameter | 0.245 in |
| Inside Dia. | 0.245" |
| Outside Dia. | 3/8" |
| Outside Dia. Tolerance | +0.005 in /-0.005 in |
| Outside Diameter Tolerance | +/-0.005 in |
| Overall Length | 6 ft |
| Wire Rope Length | 6 ft |
| Length | 6 ft |
| MFR # | ZUSA-HTM-97 |
| Zoro # | G3487224 |
| UPC # | - |
| Country of Origin | Multiple |
| Tube Material | 316 Stainless Steel |
| Standards | ASTM A213, ASTM A269 |
| Type | Seamless |
| Temp. Range | -325 Degrees to 1500 Degrees F |
| Max. Pressure | 5452 psi @ 72 Degrees F |
| Weight per Foot | 0.215 lb/ft |
| Features | Ductile at Elevated Temperatures |
| Market | Industrial |
| Cleaned and Capped | No |
| Fabrication | Seamless |
| Industry Application | Chemical Processing, Hydraulic and Instrumentation, Mechanical, Pulp and Paper Industries, Textile |
| Temper | Annealed |
| System of Measurement | Inch |
| Tube Form | Straight |
| Material Grade | 316 |
| Minimum Operating Temperature | -325 Degrees F |
| Maximum Operating Temperature | 1,500 Degrees F |
| Material | 316 Stainless Steel |
| Maximum Operating Pressure | 5,452 psi @ 72 Degrees F |
| For Environment | Marine |
| Resistance Properties | Corrosion Resistant, Pitting Resistant |
| Country of Origin | Varies (subject to change) |
