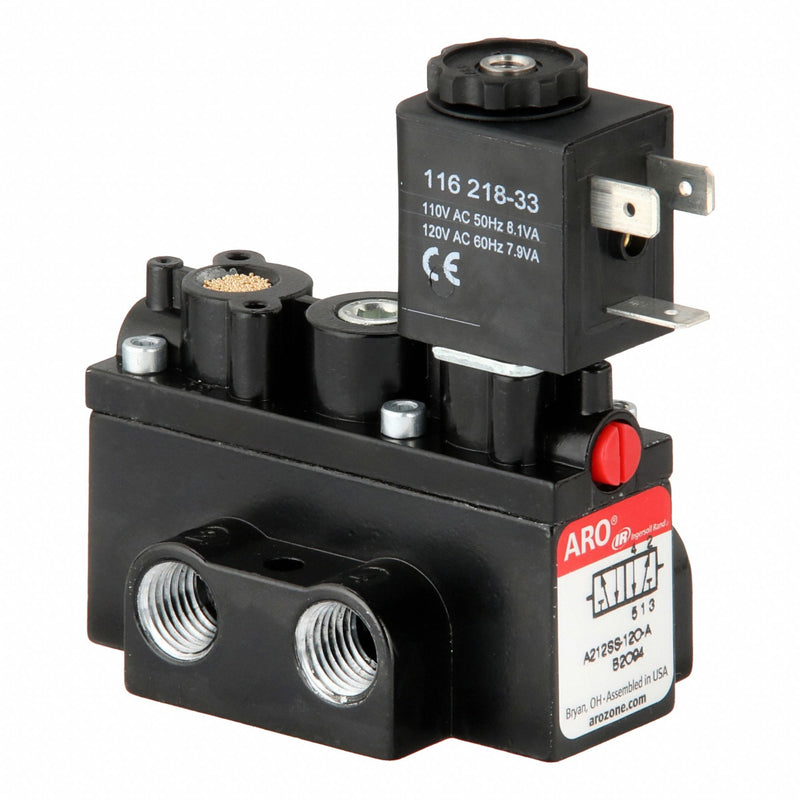

Aro A212SS-120-A Solenoid Air Control Valve, Alpha, Four-Way / Two-Position, 120V AC, 1/4 in Female NPT, 150 psi
UPC: | Harmonization / Schedule B : 8481.80.9050
Country of Origin: United States | Shipping Weight: 0.1 lbs
Original price
$222.82
-
Original price
$222.82
Original price
$222.82
$222.82
-
$222.82
Current price
$222.82
Solenoid Air Control Valve, Valve Ways and Positions 4-Way/2-Position, Voltage 120V AC, Valve Actuator / Return Solenoid / Spring, Pipe Size 1/4 in, Max. CFM - Valves 50 cfm, Operational Pressure Range 50 to 150 psi, NEMA Classification NEMA 4, Valve Vacuum Range 0 to 29 in Hg, Body Style Body-Ported, Coefficient of Volume 1.5, DIN Connectors Electrical Connections, Shifting Technology Solenoid/Pilot
| Overall Height | 3 1/4 in |
|---|---|
| Overall Width | 1 15/16 in |
| Overall Length | 3 7/16 in |
| Pipe Size | 1/4 in |
| Exhaust Port Connection Size | 1/4 in |
| Pilot Port Connection Size | 10-32 |
| Inlet Port Connection Size | 1/4 in |
| Wire Rope Length | 3 7/16 in |
| Body Style | Body-Ported |
| Series | Alpha |
| Voltage | 120V AC |
| Valve Actuator / Return | Solenoid / Spring |
| Power Consumption | 6.9 W |
| Coefficient of Volume | 1.5 |
| Vacuum Range | 29" Hg |
| Body Material | Zinc |
| Override | Non-Locking |
| Actuator/Return | Solenoid/Spring |
| Electrical Connections | DIN Connectors |
| Valve Ways and Positions | 4-Way/2-Position |
| Shifting Technology | Solenoid/Pilot |
| Air Valve Type | 4-Way, 2-Position |
| Operational Pressure Range | 50 to 150 psi |
| NEMA Classification | NEMA 4 |
| CFM | 50 |
| Ambient Temp. Range | 0 Degrees to 180 Degrees F |
| Valve Vacuum Range | 0 to 29 in Hg |
| Max. CFM - Valves | 50 cfm |
| Pressure Range | 50 to 150 psi |
| Number of Positions | Two-Position |
| Number of Ways | Four-Way |
| Vacuum Rating | Vacuum Operable |
| Spool Material | Aluminum |
| Pilot Port Connection Type | NPT |
| Exhaust Port Connection Gender | Female |
| Operating Temperature - Minimum | 0 Degrees F |
| Flow Rate - Maximum | 50 cfm |
| Pilot Port Connection Gender | Female |
| Product Type | Solenoid Air Control Valve |
| Electrical Connection Type | DIN Solenoid Connector |
| NEMA Rating | 4 |
| Return Action | Spring Return |
| Operating Pressure - Maximum | 150 psi |
| Body Features | Single |
| Exhaust Port Connection Type | NPT |
| Response Time | 22 msec |
| Inlet Port Connection Type | NPT |
| Pilot Type | Internal Pilot |
| Includes Mounting Hardware | Hardware Not Included |
| Valve Type | Spool |
| Includes Solenoid Coil | Solenoid Coil Included |
| Fail Position | Open |
| Valve Action | Normally Open |
| Inlet Port Connection Gender | Female |
| Coefficient of Volume (Cv) | 1.5 |
| For Media | Air |
| Number of Ports | 5 |
| Operating Temperature - Maximum | 180 Degrees F |
| Actuator Type | Single Solenoid |
| Country of Origin | United States |
