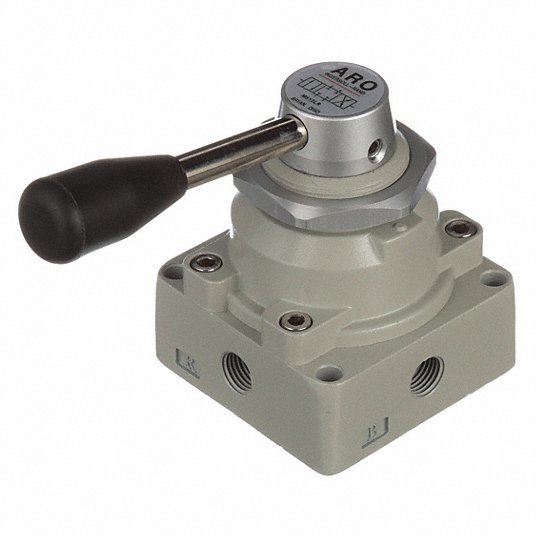

ARO M512LR Manual Air Control Valve MaxAir, Four-Way / Three-Position, Lever, Black, Closed, Manual Return

Manual Air Control Valve, Valve Ways and Positions 4-Way/3-Position, Valve Port Size 1/4 in, Connection NPT, Valve Actuator / Return Rotary Lever / Manual, Max. CFM - Valves 40 cfm, Valve Max. Pressure Rating 140 psi, Valve Temp. Range 15 Degrees to 122 Degrees F, Center Position Closed, Coefficient of Volume 1.2, Body Material Aluminum, Overall Length 2 15/16 in, Overall Height 4 5/16 in, Overall Width 2 15/16 in, Series MaxAir, Manual Air Control Valve

Actuator/Return	Rotary Lever/Manual
Center Position	Closed
Coefficient of Volume	1.2
Series	MaxAir
Number of Ways	Four-Way
Number of Positions	Three-Position
Valve Temp. Range	15 Degrees to 122 Degrees F
Valve Actuator / Return	Rotary Lever / Manual
Valve Max. Pressure Rating	140 psi
Body Material	Aluminum
Air Valve Type	4-Way, 3-Position
Connection	NPT
Valve Ways and Positions	4-Way/3-Position
Max. CFM - Valves	40 cfm
Max. Pressure	140 psi
CFM	4.3
Temp. Range	15 Degrees to 122 Degrees F
Application	Air Motors, Material Handling, Packaging
Seal Material	Buna-N
Force @ 50 psi	11 lb
Product Type	Manual Air Control Valve
Operating Temperature - Minimum	15 Degrees F
Exhaust Port Connection Gender	Female
Body Style	Panel-Mounted
Vacuum Rating	Not Vacuum Operable
Operating Pressure - Maximum	140 psi
Valve Type	Rotary
Operating Pressure - Minimum	20 psi
Valve Action	Normally Closed
Coefficient of Volume (Cv)	1.25
Valve Port Connection Type	NPT
Fail Position	Open/Closed
Valve Port Connection Gender	Female
For Media	Air
Flow Rate - Maximum	40 scfm
Actuation Force @ 125 psi	11 lb
Return Action	Manual Return
Actuator Color	Black
Actuator Type	Lever
Operating Temperature - Maximum	122 Degrees F
Number of Ports	4
Exhaust Port Connection Type	Threaded
