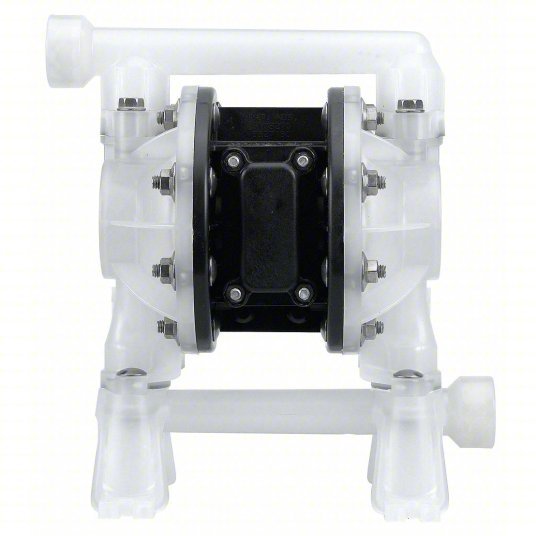

ARO PD07P-APS-PTT Double Diaphragm Pump Air, Polypropylene, Bolt, 3/4 in Fluid Connection Size, NPT, PTFE, PTFE
Original price
$1,492.95
-
Original price
$1,492.95
Original price
$1,492.95
$1,492.95
-
$1,492.95
Current price
$1,492.95
| Housing Material - Pumps | Polypropylene |
| Diaphragm Material - Pumps | PTFE |
| Max. Flow | 15 gpm |
| Item - Air Operated Pumps | Double Diaphragm Pump |
| Pump Operation Type | Air |
| Max. Temp - Pumps | 150 Degrees F |
| Connection Style | NPT |
| Agency Compliance | CE, REACH, RoHS |
| Self-Priming Dry | 10 ft |
| Max. Temp. | 150 Degrees F |
| Diaphragm Material | PTFE |
| Check Seat Material | Polypropylene |
| Ball Material | PTFE |
| Valve Type | Ball |
| Body Material | Polypropylene |
| Self-Priming Wet | 15 ft |
| Item | Double Diaphragm Pump |
| Max. Flow GPM | 15 gpm |
| Manifold Connection | Single Port |
| Max. Operating Pressure | 100 psi |
| Operation Type | Air Operated |
| Standards | ATEX Certified |
| Manifold Connection Type | NPT |
| Housing Material | Polypropylene |
| Series Family | Compact |
| Media Discharge Location | Side |
| Nameplate Voltage | N |
| Media Temperature (Maximum) | 225 Degrees F |
| Non-Wetted Housing Material | Plastic |
| Fluid Discharge Connection | 3/4 in NPTF |
| Media Discharge Connection Type | NPTF |
| Flow Rate @ 30 psi | Not Applicable |
| Air Consumption (Maximum) | 20 scfm |
| Valve Material | PTFE |
| Flow Rate @ 90 psi | 16.1 gpm |
| Media Temperature (Minimum) | 40 Degrees F |
| Valve Material | PTFE |
| Mounting Hardware Material | Stainless Steel |
| Media Intake Connection Type | NPT |
| Flow Rate @ 60 psi | 14.9 gpm |
| Feet of Head (Maximum) | 230 ft |
| Wetted Housing Material | Polypropylene |
| Chemical Compatibility | Ammonium Hydroxide, Calcium Carbonate, Diesel Exhaust Fluid, Hydrochloric Acid 10%, Hydrochloric Acid 20%, Hydrochloric Acid 30%, Hydrochloric Acid 40%, Phosphoric Acid 100%, Phosphoric Acid 40%, Phosphoric Acid 50%, Phosphoric Acid 60%, Phosphoric Acid 70%, Phosphoric Acid 80%, Phosphoric Acid 90%, Potassium Hydroxide 50%, Sodium Hydroxide 20%, Sodium Hydroxide 50%, Sodium Hydroxide 80%, Sodium Hypochlorite 10%, Sodium Hypochlorite 20%, Sodium Hypochlorite 5%, Sulfuric Acid 10%, Sulfuric Acid 20%, Sulfuric Acid 30%, Sulfuric Acid 40%, Sulfuric Acid 50%, Sulfuric Acid 60%, Sulfuric Acid 70%, Water |
| Media Intake Type | NPT |
| Flow Rate @ 120 psi | Not Applicable |
| Fluid Intake Connection | 3/4 in NPT |
| Operating Pressure (Maximum) | 100 psi |
| Viscosity (Maximum) | 15,000 cps |
| Flow Rate @ 15 psi | Not Applicable |
| For Use With Potable Systems | Yes |
| Flow Rate @ 20 psi | Not Applicable |
| Media Intake Location | Side |
| Flow Rate @ 10 psi | Not Applicable |
| Fluid Connection Type | NPT |
| Air Intake Pressure (Maximum) | 100 psi |
| Flow Rate @ 50 psi | 14 gpm |
| Priming | Self-Priming |
| Flow Rate @ 40 psi | 12.5 gpm |
| Flow Rate (Maximum) | 16.3 gpm |
| Pump Assembly Type | Bolt |
| Air Inlet | 1/4 in NPT |
| Air Intake Connection Type | NPT |
| Flow Rate @ 80 psi | 15.9 gpm |
| Media Discharge Type | NPTF |
| Port Location | Side Side |
| NPSHr | 35 ft of head |
| Flow Rate @ 70 psi | 15.5 gpm |
| Series | PD07R |
| Flow Rate @ 100 psi | 16.3 gpm |
