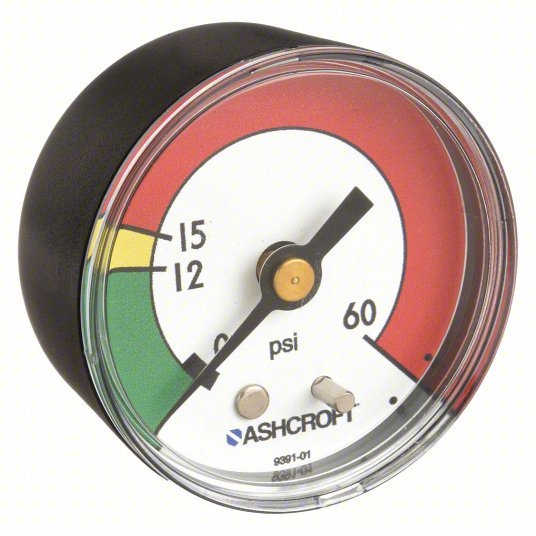

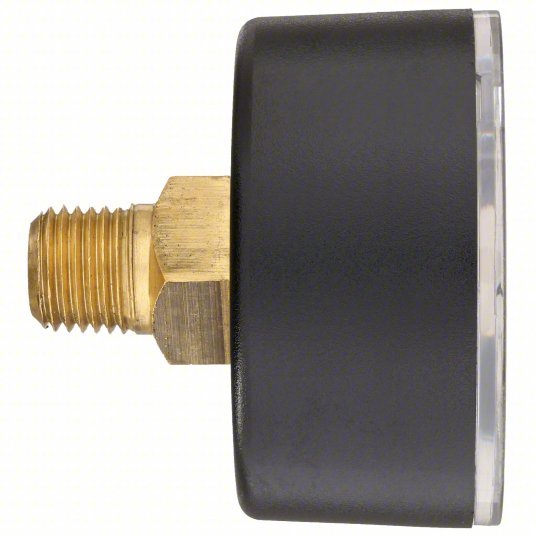

Ashcroft 20W1005PH01B 60 PSI Green/Yellow/Red, 0 to 60 psi, 2 in Dial, 1/8 in NPT Male, 1005P
Original price
$17.03
-
Original price
$17.03
Original price
$17.03
$17.03
-
$17.03
Current price
$17.03
Commercial Pressure Gauge, Nominal Dial Size 2 in, Accuracy +/-3-2-3 Percent, Gauge Case Material ABS, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/8 in, Field Fillable No, Process Connection Location Center Back, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 60, Dry Dampening Feature FlutterGuard, Vibration Resistance Liquid-Filled, Dial Color Green/Yellow/Red
| Connection Location | Back |
| Item | Commercial Pressure Gauge |
| Gauge Application | Compressors, Filter Regulators, Fluid Power Equipment, Medical Equipment, Pool and Spa Filters, Automotive Diagnostic Equipment, Beverage Dispensing Equipment, Industrial Machinery, A Variety of Other Applications |
| Range | 0 to 60 psi |
| Accuracy | +/-3-2-3% |
| Material | ABS |
| Color | Black |
| Gauge Primary Range Values | 0 to 60 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | MNPT |
| Basic Gauge Case Material | Plastic |
| Case Color | Black |
| Gauge Socket Material | Brass |
| Smallest Graduation | 0.5 psi |
| Liquid Filled | No |
| Calibration Certificate Included | No |
| Pressure and Vacuum Gauge Type | Pressure Gauge |
| Gauge Case Color | Black |
| Gauge Panel Mountable | No |
| Gauge Primary Range Smallest Graduation | 0.5 |
| Graduations | 5 psi |
| Basic Gauge Lens Material | Plastic |
| Gauge Sensor Material | Bronze |
| Gauge Connection Location | Center Back |
| Gauge Case Material | ABS Plastic |
| Series | 1005P |
| Gauge Accuracy | +/-3-2-3% |
| Basic Gauge Wetted Parts | Brass / Bronze |
| Max. Pressure (PSI) | 60 |
| Gauge Lens Material | Polycarbonate |
| Operating Temp. Range | -40 Degrees to 150 Degrees F |
| Basic Gauge Socket Material | Brass |
| Basic Gauge Sensor Material | Bronze |
| Socket Material | Brass |
| Case Material | Plastic |
| Sensor Material | Bronze |
| Hazardous Location Rating | Not Rated |
| Blowout Safety Back | No |
| Process Connection Gender | Male |
| Includes Vent Plug | No |
| Gauge Wetted Parts | Brass / Bronze |
| Compressed Gas Pressure Gauge Type | Indicating Dial Pressure Gauge |
| Panel-Mountable | No |
| Dial Face Material | Aluminum |
| Field Fillable | No |
| Primary Units | psi |
| Gauge Case Liquid | None |
| Burst Pressure | 1,600 psi |
| Gauge Accuracy Grade | Grade B - Commercial |
| Pointer Material | Aluminum |
| Pressure Range Type | Pressure |
| Primary Scale Minor Graduations | 0.5 |
| Movement Material | Polyester |
| Ambient Operating Temperature Range | -40 Degrees to 150 Degrees F, -40 Degrees to 65 Degrees C |
| Pointer Color | Black |
| Dry Dampening Feature | FlutterGuard |
| Includes Mounting Hardware | No |
| Accuracy Scale | Mid-Scale |
| Lens Material - Gauge | Plastic |
| Vibration Resistance | Liquid-Filled |
| Lens Material | Polycarbonate |
| Removable Bezel | No |
| Primary Pressure Scale Color | Black |
| Scale Type | Single |
| Compatible Process Media | Water |
| Dial Color | Green/Yellow/Red |
| Non-Sparking | No |
| Process Temperature Range | -40 Degrees to 150 Degrees F |
| Process Connection Location | Center Back |
| IP/NEMA Rating | Not Rated |
| Freeze Resistant Movement | No |
| Liquid-Filled Case | No |
| Pressure Gauge Type | Commercial Pressure Gauge |
| Accuracy Grade | ASME B40.100 Grade B |
| Primary Pressure Range | 0 to 60 |
| Primary Range | 0 to 60 |
| Sensor Type | Bourdon Tube |
| Cleaned for Oxygen Service | No |
| Primary Scale Units | psi |
| Process Connection Type | NPT |
| Includes Calibration Certificate | No |
