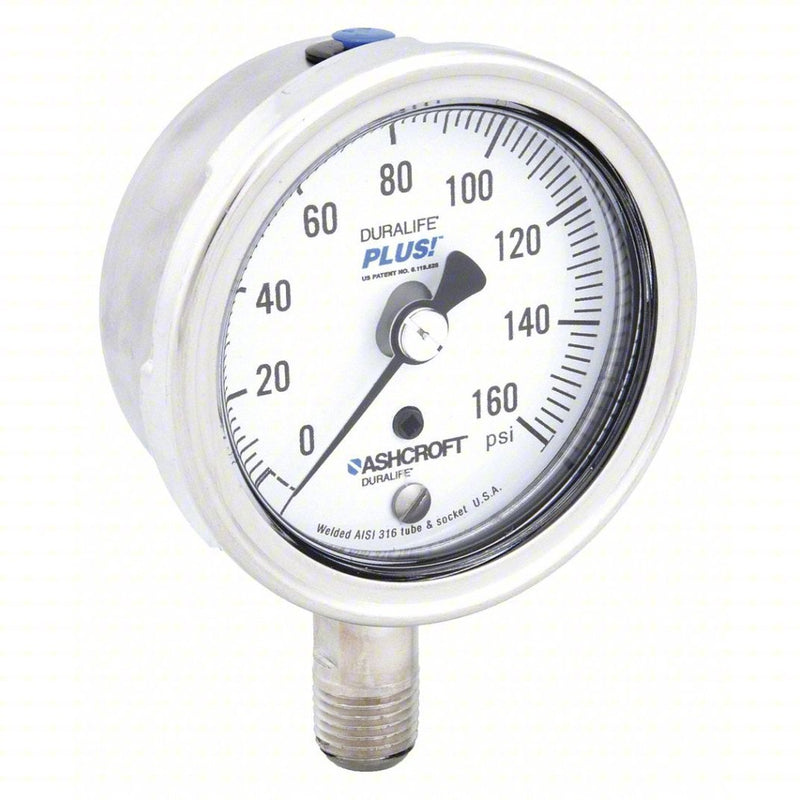

Ashcroft 251009SW02LXLL160 Industrial Pressure Gauge 0 to 160 psi, 2 1/2 in Dial, Dry Case Vibration-Dampened, Bottom
Original price
$130.80
-
Original price
$130.80
Original price
$130.80
$130.80
-
$130.80
Current price
$130.80
Industrial Pressure Gauge, Nominal Dial Size 2 1/2 in, Accuracy +/-1.0 Percent, Gauge Case Material 304 Stainless Steel, Process Connection Type NPT, Process Connection Gender Male, Lens Material Polycarbonate, Process Connection Size 1/4 in, Field Fillable No, Process Connection Location Bottom, Case Color Metallic, IP/NEMA Rating IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed), Primary Pressure Range 0 to 160
| Connection Location | Lower |
| Gauge Application | Pumps and Compressors, Boilers, Equipment Skids, Specialized OEM Equipment, Hydraulics and pneumatics, Severe Ambient Conditions |
| Range | 0 to 160 psi |
| Accuracy | +/-1.0% |
| Material | 304 Stainless steel |
| Color | Silver |
| Application | Refrigeration, Autoclave, Boilers, Water Pressure Testing, Equipment Skids, Hydraulics, Pneumatics, Pumps, Severe Ambient Conditions, OEM Applications |
| Gauge Primary Range Values | 0 to 160 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | MNPT |
| Basic Gauge Case Material | Stainless Steel |
| Case Color | Metallic |
| Gauge Case Color | Stainless Steel |
| Basic Gauge Wetted Parts | Stainless Steel |
| Gauge Accuracy | +/-1.00% |
| Basic Gauge Sensor Material | Stainless Steel |
| Gauge Primary Range Smallest Graduation | 2 |
| Gauge Primary Range Numbered Graduations | 20 |
| Basic Gauge Lens Material | Plastic |
| Series | 1009 |
| Gauge Sensor Material | 316 Stainless Steel |
| Gauge Lens Material | Polycarbonate |
| Gauge Socket Material | 316 Stainless Steel |
| Gauge Connection Location | Bottom |
| Gauge Special Options | PLUS!(TM) Performance |
| Gauge Case Material | 304 Stainless Steel |
| Graduations | 20 psi |
| Max. Pressure (PSI) | 160 |
| Liquid Filled | No |
| Gauge Panel Mountable | No |
| Operating Temp. Range | -40 Degrees to 150 Degrees F |
| Pressure and Vacuum Gauge Type | Pressure Gauge |
| Smallest Graduation | 2 psi |
| Calibration Certificate Included | No |
| Basic Gauge Socket Material | Stainless Steel |
| Socket Material | 316L Stainless Steel |
| Case Material | Stainless Steel |
| Pressure Range | 0 to 160 psi |
| Process Connection | 1/4 in NPT Male |
| Standards | ASME, CRN, ROHS |
| Sensor Type | Bourdon Tube |
| Compatible Process Media | Deionized Water |
| Liquid-Filled Case | No |
| Bezel Mounting Type | Bayonet |
| Accuracy Grade | ASME B40.100 Grade 1A |
| Pressure Range Type | Pressure |
| Dial Face Color | White |
| Sensor Material | 316L Stainless Steel |
| Freeze Resistant Movement | No |
| Burst Pressure | 1,400 psi |
| Gauge Accuracy Grade | Grade 1A - Industrial |
| Primary Pressure Range | 0 to 160 |
| Bezel Material | 304 Stainless Steel |
| Cleaned for Oxygen Service | No |
| Lens Material - Gauge | Plastic |
| Pointer Color | Black |
| Dry Dampening Feature | PLUS! Performance |
| Vibration Resistance | Dry Case Vibration-Dampened |
| Includes Vent Plug | Yes |
| Hazardous Location Rating | Not Rated |
| Movement Material | 304 Stainless Steel |
| Dial Color | White |
| Removable Bezel | Yes |
| Process Connection Location | Bottom |
| Includes Mounting Hardware | No |
| Pointer Material | Aluminum |
| Blowout Safety Back | No |
| Panel-Mountable | No |
| Process Connection Gender | Male |
| Includes Calibration Certificate | No |
| Non-Sparking | No |
| Lens Material | Polycarbonate |
| Primary Scale Numeric Increments | 20 |
| Accuracy Scale | Full Scale |
| Field Fillable | No |
| Case Construction | Welded Joint |
| Primary Pressure Scale Color | Black |
| Ambient Operating Temperature Range | -40 Degrees to 150 Degrees F (-40 Degrees to 66 Degrees C), -40 Degrees to 200 Degrees F (-40 Degrees to 93 Degrees C) |
| Primary Scale Minor Graduations | 2 |
| Dial Face Material | Aluminum |
| Gauge Case Liquid | None |
| Pressure Gauge Type | Industrial Pressure Gauge |
| Scale Type | Single |
| IP/NEMA Rating | IP54 (Plug Vented), IP65 (Plug Closed), NEMA 4 (Plug Closed) |
| Primary Scale Units | psi |
| Process Temperature Range | -40 Degrees to 200 Degrees F, -40 Degrees to 250 Degrees F |
| Gauge Wetted Parts | Stainless Steel |
| Process Connection Type | NPT |
