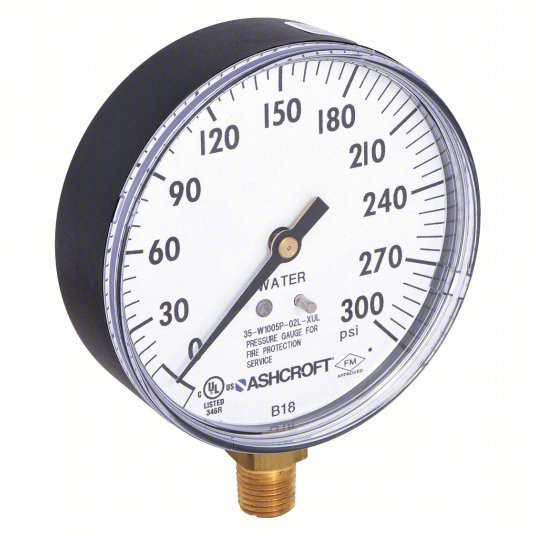

Ashcroft 35W1005PH02LXULZG300#-8382 Pressure Gauge, 0 to 300 psi, 1/4 in MNPT, Plastic, Black
Original price
$24.49
-
Original price
$24.49
Original price
$24.49
$24.49
-
$24.49
Current price
$24.49
Pressure Gauge, Gauge Type Sprinkler System, Dial Size (In.) 3-1/2, Range 0 to 300 psi, Connection Size 1/4" NPT, Connection Location Lower, Smallest Graduation (PSI) 5, Accuracy (%) +/-3-2-3, Case Material ABS Plastic, Case Color Black, Socket Material Brass, Tube Material Phosphor Bronze, Lens Material Threaded Polycarbonate, Operating Temp. Range (F) -40 Degrees to 150 Degrees , Series 1005P, Manufacturers Warranty Length 1 Year
| Connection Location | Lower |
| Item | Fire Sprinkler System Pressure Gauge |
| Gauge Application | Fire Sprinkler Systems |
| Range | 0 to 300 psi |
| Accuracy | +/-3-2-3% |
| Material | ABS |
| Color | Black |
| Gauge Primary Range Values | 0 to 300 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | MNPT |
| Basic Gauge Case Material | Plastic |
| Case Color | Black |
| Gauge Lens Material | Polycarbonate |
| Gauge Case Color | Black |
| Liquid Filled | No |
| Gauge Panel Mountable | No |
| Gauge Sensor Material | Phosphor Bronze |
| Calibration Certificate Included | No |
| Gauge Case Material | ABS Plastic |
| Gauge Primary Range Smallest Graduation | 5 |
| Basic Gauge Wetted Parts | Brass / Bronze |
| Pressure and Vacuum Gauge Type | Pressure Gauge |
| Basic Gauge Socket Material | Brass |
| Gauge Accuracy | +/-3-2-3% |
| Smallest Graduation | 5 psi |
| Series | 1005P |
| Basic Gauge Lens Material | Plastic |
| Basic Gauge Sensor Material | Bronze |
| Operating Temp. Range | -40 Degrees to 150 Degrees F |
| Gauge Connection Location | Bottom |
| Gauge Socket Material | Brass |
| Graduations | 50 psi |
| Max. Pressure (PSI) | 300 |
| Case Material | Plastic |
| Socket Material | Brass |
| Ambient Operating Temperature Range | -40 Degrees to 150 Degrees F |
| Reads Head Pressure | No |
| Accuracy Grade | ASME B40.100 Grade B |
| Pressure Gauge Type | Fire Sprinkler System Gauge |
| Freeze Resistant Movement | No |
| Movement Material | Polyester |
| Pointer Material | Aluminum |
| Lens Material - Gauge | Plastic |
| Pressure Range Type | Pressure |
| Case Construction | ABS Plastic |
| Primary Scale Units | psi |
| Process Connection Location | Bottom |
| Accuracy Scale | Mid-Scale |
| Compatible Process Media | Air, Water |
| Gauge Wetted Parts | Brass / Bronze |
| Removable Bezel | No |
| Dial Face Material | Aluminum |
| Hazardous Location Rating | Not Rated |
| Primary Pressure Range | 0 to 300 |
| Process Temperature Range | -40 Degrees to 150 Degrees F |
| Movement Type | PowerFlex |
| Gauge Accuracy Grade | Grade B - Commercial |
| Lens Material | Polycarbonate |
| Pointer Color | Black |
| Sensor Material | Phosphor Bronze |
| Sensor Type | Bourdon Tube |
| Process Connection Gender | Male |
| IP/NEMA Rating | Not Rated |
| Scale Type | Single |
| Process Connection Type | NPT |
| Dial Color | White |
| Bezel Mounting Type | No Bezel |
