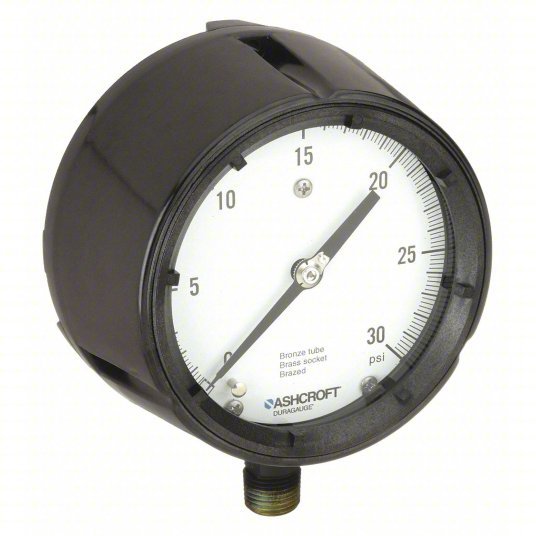

Ashcroft 451279AS04L30# Pressure Gauge, 0 to 30 psi, 1/2 in MNPT, Plastic, Black
Original price
$168.83
-
Original price
$168.83
Original price
$168.83
$168.83
-
$168.83
Current price
$168.83
Process Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Phenolic, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/2 in, Field Fillable No, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating Not Rated, Primary Pressure Range 0 to 30, Dry Dampening Feature None, Vibration Resistance None, Dial Color White, Pressure Gauge Type Process Pressure Gauge, Bolt Circle Diameter 5.375 in
| For Use With | Media Compatible with Bronze |
| Gauge Application | Process |
| Range | 0 to 30 psi |
| Accuracy | +/-0.5% |
| Material | Phenolic |
| Color | Black |
| Application | Chemical Industries, Refrigeration, Mining, Oil and Gas Industry, Power Industries, Turbines and Compressors, Water Purification or Irrigation, Water Pressure Testing |
| Gauge Primary Range Values | 0 to 30 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | MNPT |
| Basic Gauge Case Material | Plastic |
| Case Color | Black |
| Gauge Case Color | Black |
| Graduations | 5 psi |
| Max. Pressure (PSI) | 30 |
| Gauge Connection Location | Bottom |
| Gauge Accuracy | +/-0.50% |
| Gauge Special Options | PLUS!(TM) Performance |
| Operating Temp. Range | -50 Degrees to 150 Degrees F |
| Basic Gauge Lens Material | Glass |
| Gauge Case Material | Phenolic |
| Gauge Mounting Method | Surface |
| Series | 1279 |
| Gauge Panel Mountable | Yes |
| Pressure and Vacuum Gauge Type | Pressure Gauge |
| Gauge Sensor Material | Phosphor Bronze |
| Liquid Filled | No |
| Basic Gauge Wetted Parts | Brass / Bronze |
| Smallest Graduation | 5 psi |
| Gauge Socket Material | Brass |
| Calibration Certificate Included | No |
| Basic Gauge Sensor Material | Bronze |
| Gauge Primary Range Smallest Graduation | 5 |
| Basic Gauge Socket Material | Brass |
| Gauge Lens Material | Glass |
| Pressure Range | 0 to 30 psi |
| Socket Material | Brass |
| Case Material | Phenolic |
| Process Connection | 1/2 in NPT Male |
| Standards | ASME, CRN, UL 94-V-0 |
| Removable Bezel | Yes |
| Scale Type | Single |
| Case Construction | Solid Front with Pressure Relief Back |
| Includes Mounting Hardware | No |
| Freeze Resistant Movement | No |
| Primary Pressure Range | 0 to 30 |
| Sensor Type | Bourdon Tube |
| Vibration Resistance | None |
| Burst Pressure | 1,400 psi |
| Hazardous Location Rating | Not Rated |
| Ambient Operating Temperature Range | -20 Degrees to 200 Degrees F (-29 Degrees to 93 Degrees C) |
| Dry Dampening Feature | None |
| Dial Color | White |
| Pointer Material | Aluminum |
| IP/NEMA Rating | Not Rated |
| Gauge Wetted Parts | Brass / Bronze |
| Blowout Safety Back | Yes |
| Compatible Process Media | Chemical and Petrochemical, Metals, Natural Gas and LNG, Oil and Gas, Water and Wastewater |
| Includes Vent Plug | No |
| Movement Type | Rotary |
| Dial Face Color | White |
| Non-Sparking | No |
| Includes Calibration Certificate | No |
| Cleaned for Oxygen Service | No |
| Primary Scale Minor Graduations | 5 |
| Movement Material | 400 Stainless Steel |
| Process Connection Type | NPT |
| Accuracy Grade | ASME B40.100 Grade 2A |
| Panel-Mountable | No |
| Primary Scale Units | psi |
| Pressure Gauge Type | Process Pressure Gauge |
| Pressure Range Type | Pressure |
| Panel Mount Characteristics | 3 0.218 Dia Holes on 5 3/8 Dia Bolt Circle |
| Process Connection Location | Bottom |
| Primary Pressure Scale Color | Black |
| Process Temperature Range | -20 Degrees to 250 Degrees F |
| Sensor Material | Bronze |
| Field Fillable | No |
| Gauge Case Liquid | None |
| Lens Material | Glass |
| Accuracy Scale | Full Scale |
| Bezel Material | Polycarbonate |
| Bezel Mounting Type | Threaded |
| Process Connection Gender | Male |
| Pointer Characteristics | Micrometer Adjustable |
| Dial Face Material | Aluminum |
| Liquid-Filled Case | No |
| Lens Material - Gauge | Glass |
| Gauge Accuracy Grade | Grade 2A - Process |
