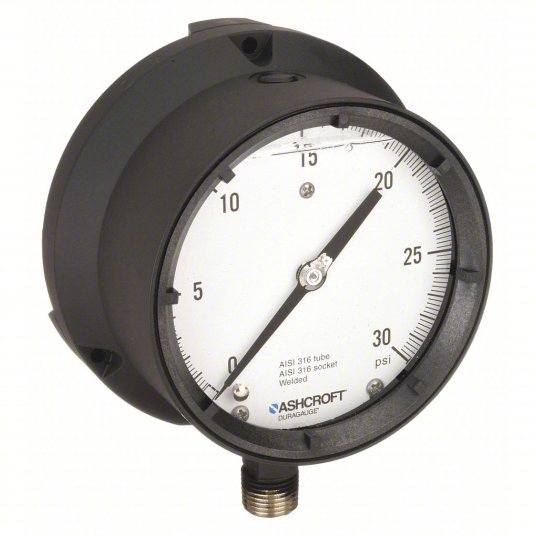

Ashcroft 451379SSL04L30# Pressure Gauge, 0 to 30 psi, 1/2 in MNPT, Plastic, Black
Original price
$229.19
-
Original price
$229.19
Original price
$229.19
$229.19
-
$229.19
Current price
$229.19
Process Pressure Gauge, Nominal Dial Size 4 1/2 in, Accuracy +/-0.5 Percent, Gauge Case Material Aluminum, Process Connection Type NPT, Process Connection Gender Male, Lens Material Glass, Process Connection Size 1/2 in, Field Fillable Yes, Process Connection Location Bottom, Case Color Black, IP/NEMA Rating IP66, NEMA 4X, Primary Pressure Range 0 to 30, Dry Dampening Feature None, Vibration Resistance Liquid-Filled, Dial Color White, Pressure Gauge Type Process Pressure Gauge
| For Use With | Media Compatible with 316L Stainless Steel |
| Gauge Application | General Purpose |
| Range | 0 to 30 psi |
| Accuracy | +/-0.5% |
| Material | Phenolic/Thermoplastic |
| Color | Black |
| Application | Chemical Industries, Refrigeration, Mining, Oil and Gas Industry, Power Industries, Turbines and Compressors, Water Purification or Irrigation, Water Pressure Testing |
| Gauge Primary Range Values | 0 to 30 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | MNPT |
| Basic Gauge Case Material | Plastic |
| Case Color | Black |
| Liquid Filled | Yes |
| Basic Gauge Sensor Material | Stainless Steel |
| Basic Gauge Socket Material | Stainless Steel |
| Smallest Graduation | 5 psi |
| Gauge Accuracy | +/-0.50% |
| Pressure and Vacuum Gauge Type | Pressure Gauge |
| Basic Gauge Lens Material | Plastic |
| Gauge Primary Range Smallest Graduation | 5 |
| Gauge Case Material | Aluminum |
| Gauge Socket Material | 316L Stainless Steel |
| Graduations | 5 psi |
| Calibration Certificate Included | No |
| Gauge Lens Material | Acrylic |
| Gauge Panel Mountable | No |
| Gauge Connection Location | Bottom |
| Basic Gauge Wetted Parts | Stainless Steel |
| Gauge Sensor Material | 316L Stainless Steel |
| Operating Temp. Range | 0 Degrees to 150 Degrees F |
| Gauge Filled With | Glycerin |
| Max. Pressure (PSI) | 30 |
| Gauge Case Color | Black |
| Series | 1379 |
| Case Material | Epoxy-Coated Aluminum |
| Socket Material | 316L Stainless Steel |
| Pressure Range | 0 to 30 psi |
| Process Connection | 1/2 in NPT Male |
| Standards | ASME, CRN |
| Scale Type | Single |
| Cleaned for Oxygen Service | No |
| Process Connection Gender | Male |
| Includes Calibration Certificate | No |
| Freeze Resistant Movement | No |
| IP/NEMA Rating | IP66, NEMA 4X |
| Movement Material | 400 Stainless Steel |
| Removable Bezel | No |
| Dial Face Color | White |
| Blowout Safety Back | Yes |
| Panel Mount Characteristics | 3 0.218 Dia Holes on 5 3/8 Dia Bolt Circle |
| Gauge Case Liquid | Glycerin |
| Panel-Mountable | No |
| Process Temperature Range | 20 Degrees to 150 Degrees F |
| Hazardous Location Rating | Not Rated |
| Primary Scale Units | psi |
| Primary Pressure Range | 0 to 30 |
| Movement Type | Rotary |
| Gauge Wetted Parts | Stainless Steel |
| Pressure Range Type | Pressure |
| Includes Vent Plug | No |
| Includes Mounting Hardware | No |
| Process Connection Location | Bottom |
| Pointer Color | Black |
| Accuracy Scale | Full Scale |
| Compatible Process Media | Chemical and Petrochemical, Metals, Natural Gas and LNG, Oil and Gas, Water and Wastewater |
| Bezel Material | Polypropylene |
| Primary Pressure Scale Color | Black |
| Pressure Gauge Type | Process Pressure Gauge |
| Ambient Operating Temperature Range | 20 Degrees to 150 Degrees F (-7 Degrees to 66 Degrees C) |
| Pointer Characteristics | Micrometer Adjustable |
| Lens Material | Glass |
| Sensor Material | 316L Stainless Steel |
| Sensor Type | Bourdon Tube |
| Case Construction | Solid Front with Pressure Relief Back |
| Field Fillable | Yes |
| Accuracy Grade | ASME B40.100 Grade 2A |
| Vibration Resistance | Liquid-Filled |
| Non-Sparking | No |
| Process Connection Type | NPT |
| Dry Dampening Feature | None |
| Liquid-Filled Case | Yes |
| Case Finish | Epoxy Coated |
| Pointer Material | Aluminum |
| Gauge Accuracy Grade | Grade 2A - Process |
| Primary Scale Minor Graduations | 5 |
| Dial Color | White |
| Burst Pressure | 1,400 psi |
| Dial Face Material | Aluminum |
| Lens Material - Gauge | Glass |
