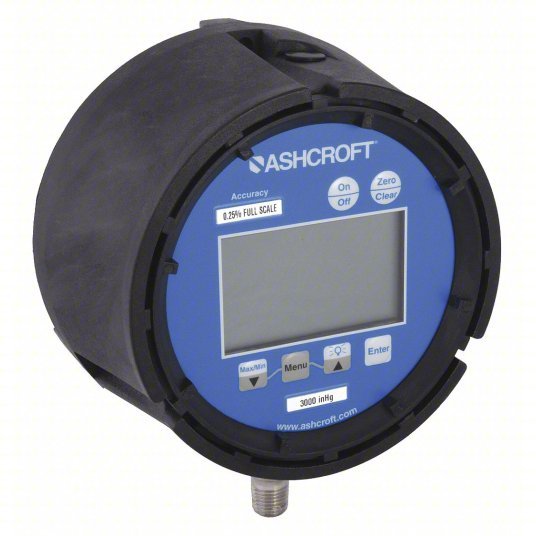

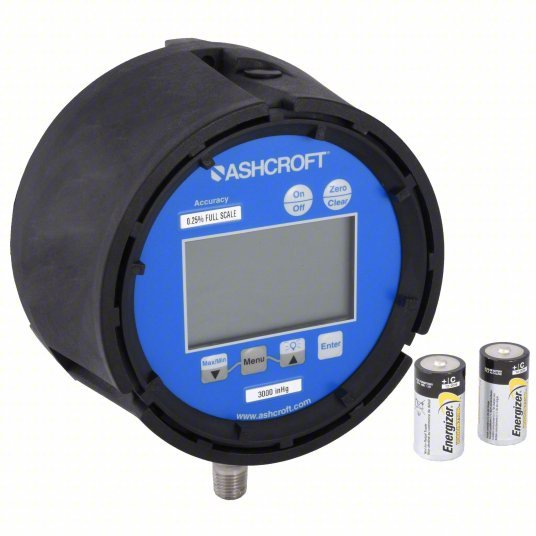

Ashcroft 452074SD02L1000BL Digital Pressure Gauge, 0 to 1000 psi, 1/4 in MNPT, Plastic, Black
Original price
$532.56
-
Original price
$532.56
Original price
$532.56
$532.56
-
$532.56
Current price
$532.56
Digital Test Pressure Gauge, Accuracy +/-0.25 Percent, Gauge Case Material Thermoplastic, Nominal Dial Size 4 1/2 in, Lens Material Polyester, IP/NEMA Rating IP65, Hazardous Location Rating Not Rated, Sensor Material Stainless Steel, Socket Material 316 Stainless Steel, Sensor Type Diaphragm, Process Connection Type NPT, Display Units bar, ft wc, kg/sq cm, kPa, mBar, Mpa, psi, Process Connection Gender Male, Battery Type (2) C Batteries, Process Connection Location Bottom
| Item | Digital Test Pressure Gauge |
| Connection Location | Bottom |
| Includes | Battery and Instructions |
| Range | 0 to 1000 psi |
| Digital Pressure and Vacuum Gauge Type | Digital Pressure Gauge |
| Accuracy | +/-0.25% |
| Application | Pneumatics, Hydraulics |
| Gauge Primary Range Values | 0 to 1000 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | MNPT |
| Basic Gauge Case Material | Plastic |
| Case Color | Black |
| Powered By | (2) C Batteries |
| Socket Material | 316 Stainless Steel |
| Digital Gauge Accuracy | +/-0.25% Full Scale |
| Display | LCD |
| Series | 2074 |
| Calibration Certificate | No |
| Gauge Connection Location | Bottom |
| Case Material | Plastic |
| Number of Display Digits | 5 |
| Gauge Operating Temp. Range | -14 Degrees to 140 Degrees F |
| Digital Gauge Display Units | bar, ft wc, kg/sq cm, kPa, mbar, MPa, psi |
| Agency Compliance | CE, CSA, FM |
| Display Units | bar, ft wc, kg/sq cm, kPa, mBar, Mpa, psi |
| Peak Hold | No |
| Basic Gauge Wetted Parts | Stainless Steel |
| Resolution | Dependent on Display Units Selected |
| Gauge Case Material | Thermoplastic |
| Pressure Range | 0 to 1,000 psi |
| Standards | CSA, FM |
| Process Connection | 1/4 in NPT Male |
| Temperature Error | 0.04% Degrees F |
| Blowout Safety Back | No |
| Hazardous Location Rating | Not Rated |
| Languages | English |
| Data Update Frequency | 100 msec, 200 msec, 500 msec, 1 sec |
| Process Temperature Range | 14 Degrees to 140 Degrees F |
| Panel Mount Characteristics | 3 0.24 in Dia Holes on 5.37 in Dia Bolt Circle |
| Differentiator (HIDDEN) | 452074SD02L1000BL No |
| Test Pressure Gauge Type | Test Pressure Gauge |
| Burst Pressure | 8,000 psi |
| Adjustable Set Points | No |
| Display Range | 0 to 2036.0 in Hg, 0 to 2,307.7 ft H2O, 0 to 30 psi, 0 to 6.895 Mpa, 0 to 68.95 bar, 0 to 6,895 kPa, 0 to 70.313 kg/sq cm |
| Memory Features | Min/Max |
| Lens Material | Polyester |
| Weatherproof | Yes |
| Battery Run Time | 2,000 hr |
| Number of Digits | 5 |
| Power Source | Battery |
| Auto-Shutoff Time | 2 min, 5 min, 15 min, 30 min |
| With Calibration Certificate | Standard Gauge |
| Auto-Shutoff | Yes |
| Bar Graph | 10 Segments |
| Includes Calibration Certificate | No |
| Process Connection Location | Bottom |
| Panel-Mountable | No |
| Primary Display Units | psi |
| Battery Type | (2) C Batteries |
| Includes Rubber Boot | No |
| Case Shape | Round |
| Display Screen Type | LCD |
| Process Connection Gender | Male |
| Primary Units | psi |
| Pressure Range Type | Pressure |
| Pressure Gauge Type | Test Pressure Gauge |
| Primary Display Range | 0 to 1,000 |
| Primary Range | 0 to 1,000 |
| Backlit Screen | Yes |
| IP/NEMA Rating | IP65 |
| Sensor Type | Diaphragm |
| Gauge Wetted Parts | Stainless Steel |
| Sensor Material | Stainless Steel |
| Process Connection Type | NPT |
| Low Battery Indicator | No |
| Includes Batteries | Yes |
| Includes Mounting Hardware | No |
| Non-Sparking | No |
| Gauge Mounting Type | Stem-Mount |
