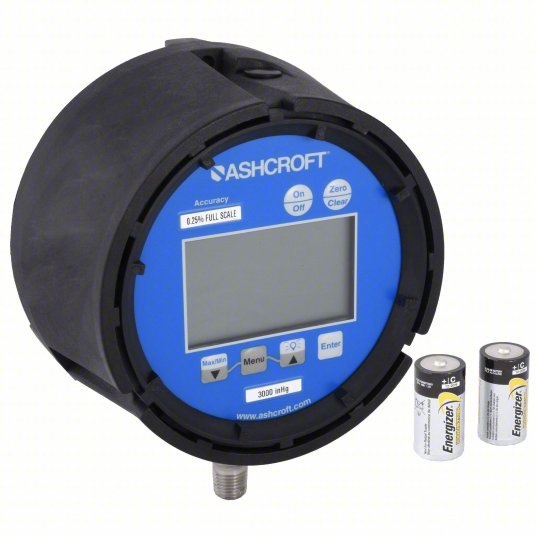

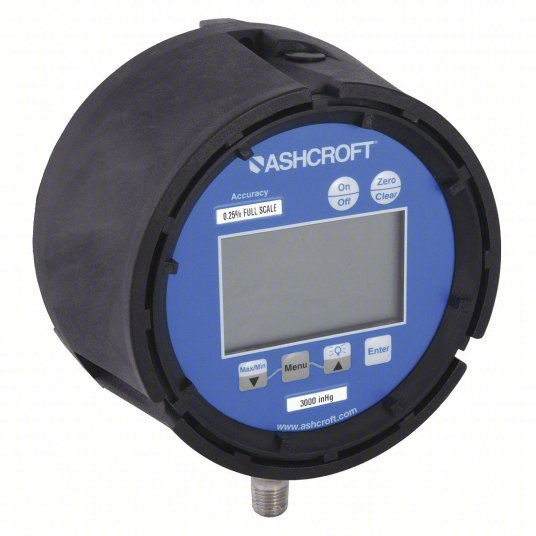

Ashcroft 452074SD02L3000BL Digital Pressure Gauge, 0 to 3000 psi, 1/4 in MNPT, Plastic, Black
Original price
$532.56
-
Original price
$532.56
Original price
$532.56
$532.56
-
$532.56
Current price
$532.56
Digital Test Pressure Gauge, Accuracy +/-0.25 Percent, Gauge Case Material Thermoplastic, Nominal Dial Size 4 1/2 in, Lens Material Polyester, IP/NEMA Rating IP65, Hazardous Location Rating Not Rated, Sensor Material Stainless Steel, Socket Material 316 Stainless Steel, Sensor Type Diaphragm, Process Connection Type NPT, Display Units bar, kPa, psi, Process Connection Gender Male, Battery Type (2) C Batteries, Process Connection Location Bottom, Process Connection Size 1/4 in
| Connection Location | Bottom |
| Includes | Battery and Instructions |
| Range | 0 to 3000 psi |
| Digital Pressure and Vacuum Gauge Type | Digital Pressure Gauge |
| Accuracy | +/-0.25% |
| Application | Pneumatics, Hydraulics |
| Gauge Primary Range Values | 0 to 3000 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | MNPT |
| Basic Gauge Case Material | Plastic |
| Case Color | Black |
| Case Material | Plastic |
| Agency Compliance | CE, CSA, FM |
| Display Units | bar, kPa, psi |
| Resolution | Dependent on Display Units Selected |
| Digital Gauge Accuracy | +/-0.25% Full Scale |
| Digital Gauge Display Units | bar, kPa, psi |
| Socket Material | 316 Stainless Steel |
| Powered By | (2) C Batteries |
| Gauge Connection Location | Bottom |
| Peak Hold | No |
| Basic Gauge Wetted Parts | Stainless Steel |
| Gauge Operating Temp. Range | -14 Degrees to 140 Degrees F |
| Display | LCD |
| Series | 2074 |
| Calibration Certificate | No |
| Number of Display Digits | 5 |
| Gauge Case Material | Thermoplastic |
| Pressure Range | 0 to 3,000 psi |
| Standards | CSA, FM |
| Process Connection | 1/4 in NPT Male |
| Auto-Shutoff Time | 2 min, 5 min, 15 min, 30 min |
| Memory Features | Min/Max |
| Temperature Error | 0.04% Degrees F |
| Display Screen Type | LCD |
| Process Connection Type | NPT |
| Languages | English |
| Lens Material | Polyester |
| Battery Run Time | 2,000 hr |
| Panel-Mountable | No |
| Gauge Wetted Parts | Stainless Steel |
| Burst Pressure | 4,500 psi |
| Sensor Type | Diaphragm |
| Differentiator (HIDDEN) | 452074SD02L3000BL No |
| Low Battery Indicator | No |
| Includes Rubber Boot | No |
| Test Pressure Gauge Type | Test Pressure Gauge |
| Bar Graph | 10 Segments |
| Primary Display Range | 0 to 3,000 |
| Includes Mounting Hardware | No |
| IP/NEMA Rating | IP65 |
| Pressure Range Type | Pressure |
| Adjustable Set Points | No |
| Primary Display Units | psi |
| Primary Units | psi |
| Process Temperature Range | 14 Degrees to 140 Degrees F |
| With Calibration Certificate | Standard Gauge |
| Battery Type | (2) C Batteries |
| Hazardous Location Rating | Not Rated |
| Includes Batteries | Yes |
| Weatherproof | Yes |
| Power Source | Battery |
| Non-Sparking | No |
| Process Connection Location | Bottom |
| Includes Calibration Certificate | No |
| Data Update Frequency | 100 msec, 200 msec, 500 msec, 1 sec |
| Primary Range | 0 to 3,000 |
| Backlit Screen | Yes |
| Blowout Safety Back | No |
| Case Shape | Round |
| Sensor Material | Stainless Steel |
| Display Range | 0 to 20.684 Mpa, 0 to 206.8 bar, 0 to 210.93 kg/sq cm, 0 to 3,000 psi, 0 to 6,108 in Hg, 0 to 6,923 ft H2O |
| Pressure Gauge Type | Test Pressure Gauge |
| Number of Digits | 5 |
| Panel Mount Characteristics | 3 0.24 in Dia Holes on 5.37 in Dia Bolt Circle |
| Process Connection Gender | Male |
| Auto-Shutoff | Yes |
| Gauge Mounting Type | Stem-Mount |
