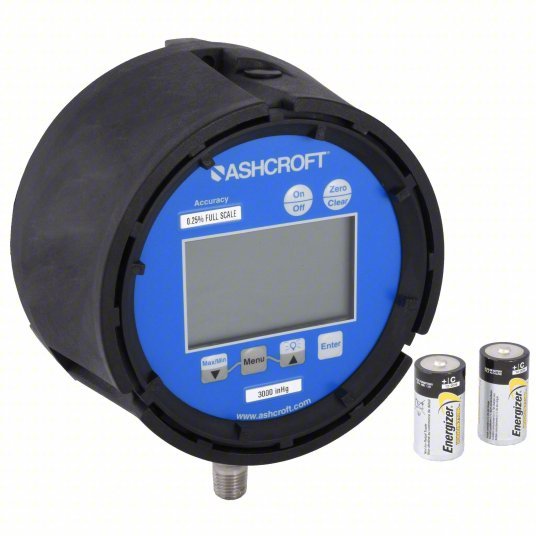

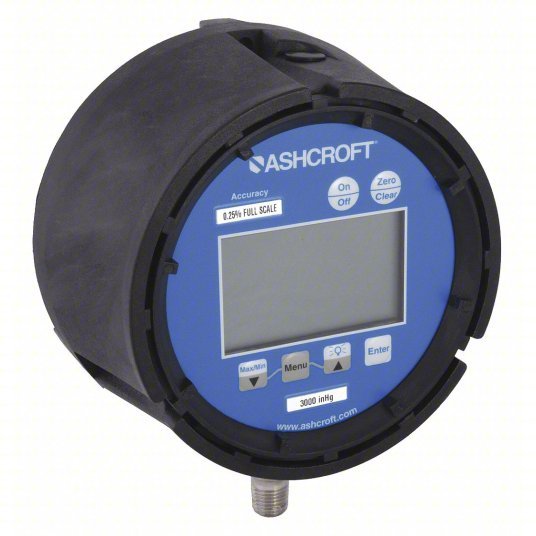

Ashcroft 452074SD02L300BL Digital Pressure Gauge, 0 to 300 psi, 1/4 in MNPT, Plastic, Black
Original price
$532.56
-
Original price
$532.56
Original price
$532.56
$532.56
-
$532.56
Current price
$532.56
Digital Test Pressure Gauge, Accuracy +/-0.25 Percent, Gauge Case Material Thermoplastic, Nominal Dial Size 4 1/2 in, Lens Material Polyester, IP/NEMA Rating IP65, Hazardous Location Rating Not Rated, Sensor Material Stainless Steel, Socket Material 316 Stainless Steel, Sensor Type Diaphragm, Process Connection Type NPT, Display Units bar, ft wc, in Hg, kg/sq cm, kPa, mBar, Mpa, psi, Process Connection Gender Male, Battery Type (2) C Batteries, Process Connection Location Bottom
| Item | Digital Test Pressure Gauge |
| Connection Location | Bottom |
| Includes | Battery and Instructions |
| Range | 0 to 300 psi |
| Digital Pressure and Vacuum Gauge Type | Digital Pressure Gauge |
| Accuracy | +/-0.25% |
| Application | Pneumatics, Hydraulics |
| Gauge Primary Range Values | 0 to 300 |
| Gauge Primary Range Units | psi |
| Gauge Connection Type | MNPT |
| Basic Gauge Case Material | Plastic |
| Case Color | Black |
| Resolution | Dependent on Display Units Selected |
| Calibration Certificate | No |
| Agency Compliance | CE, CSA, FM |
| Gauge Operating Temp. Range | -14 Degrees to 140 Degrees F |
| Digital Gauge Display Units | bar, ft wc, in Hg, kg/sq cm, kPa, mbar, MPa, psi |
| Gauge Connection Location | Bottom |
| Powered By | (2) C Batteries |
| Socket Material | 316 Stainless Steel |
| Digital Gauge Accuracy | +/-0.25% Full Scale |
| Basic Gauge Wetted Parts | Stainless Steel |
| Series | 2074 |
| Peak Hold | No |
| Display Units | bar, ft wc, in Hg, kg/sq cm, kPa, mBar, Mpa, psi |
| Case Material | Plastic |
| Display | LCD |
| Number of Display Digits | 5 |
| Pressure Range | 0 to 300 psi |
| Gauge Case Material | Thermoplastic |
| Standards | CSA, FM |
| Process Connection | 1/4 in NPT Male |
| Auto-Shutoff | Yes |
| Includes Mounting Hardware | No |
| Case Shape | Round |
| Auto-Shutoff Time | 2 min, 5 min, 15 min, 30 min |
| Includes Rubber Boot | No |
| Display Screen Type | LCD |
| Battery Run Time | 2,000 hr |
| Process Temperature Range | 14 Degrees to 140 Degrees F |
| Process Connection Gender | Male |
| Sensor Type | Diaphragm |
| Bar Graph | 10 Segments |
| Languages | English |
| Differentiator (HIDDEN) | 452074SD02L300BL No |
| Low Battery Indicator | No |
| Battery Type | (2) C Batteries |
| Display Range | 0 to 15515 mm Hg, 0 to 2.0684 Mpa, 0 to 20.685 bar, 0 to 2068.4 kpa, 0 to 21.093 kg/sq cm, 0 to 300 psi, 0 to 610.8 in Hg, 0 to 692.3 ft H2O |
| Includes Calibration Certificate | No |
| Hazardous Location Rating | Not Rated |
| Temperature Error | 0.04% Degrees F |
| With Calibration Certificate | Standard Gauge |
| Burst Pressure | 2,400 psi |
| Backlit Screen | Yes |
| Adjustable Set Points | No |
| Process Connection Location | Bottom |
| Primary Display Range | 0 to 300 |
| Sensor Material | Stainless Steel |
| IP/NEMA Rating | IP65 |
| Primary Units | psi |
| Lens Material | Polyester |
| Pressure Range Type | Pressure |
| Process Connection Type | NPT |
| Power Source | Battery |
| Includes Batteries | Yes |
| Blowout Safety Back | No |
| Weatherproof | Yes |
| Data Update Frequency | 100 msec, 200 msec, 500 msec, 1 sec |
| Test Pressure Gauge Type | Test Pressure Gauge |
| Memory Features | Min/Max |
| Number of Digits | 5 |
| Non-Sparking | No |
| Primary Display Units | psi |
| Pressure Gauge Type | Test Pressure Gauge |
| Panel-Mountable | No |
| Panel Mount Characteristics | 3 0.24 in Dia Holes on 5.37 in Dia Bolt Circle |
| Primary Range | 0 to 300 |
| Gauge Wetted Parts | Stainless Steel |
| Gauge Mounting Type | Stem-Mount |
